US$3,500.00-27,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Certification
CE, ISO, SGS
Main Material
Cast Iron, Customizable
Mixing Drum Shape
Double Cone
Safety Features
Anti-Slip Feet, Emergency Stop Button, Overload Protection, Safety Lock, Splash Guard
Feeding Capacity
120-7250Kg
Discharging Power
2.2-4Kw
Product
planetary concrete mixer machine
Transport Package
Plywood Box
Production Capacity
1000sets/Year
Packaging & Delivery
Package Size
100.00cm * 100.00cm * 100.00cm
Package Gross Weight
300.000kg

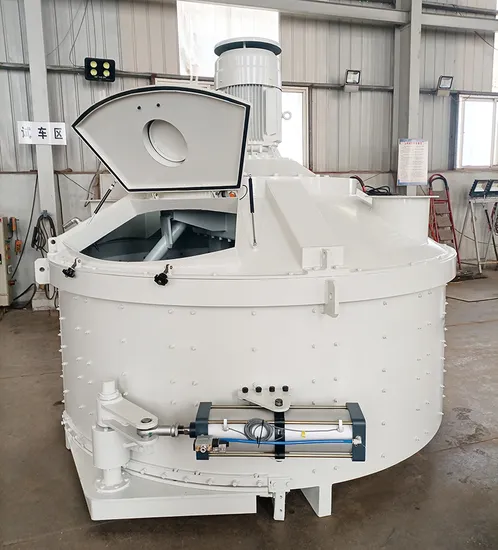

Product Description
Refractory mixer Counter Current Planetary Concrete Mixer Machine Price for Sale Product Description
LCPM counter-current planetary mixer can mix all kinds of high-quality and high-performance concrete, which can reach homogenous mixing in the shortest time. It can also be widely used for glass, ceramics, refractories, fertilizer, concrete, etc
Can be customized according to your requirements.
Concrete Mixer Pump
Helpful Links
To browse more products, please click here
For our catalogs, please click here
For instant communication, please click here Our Advantages
Counter-current Gearing System
The rotation direction of mixing stars is reversed with the revolution direction, and each mixing star's direction is also different. The circulation movement and convective movement make the material severely mix and achieve uniform distribution.
Convection Mixing Device
High mixing efficiency, and low energy consumption.
Compared with traditional planetary mixers, the mixing time of LCMP could be reduced by 15~20%.
The no-load current and load current with the same material can be 15~20% lower Product Parameters
Color and capacity can be customized, welcome to inquire!
Item | LCPM50 | LCPM100 | LCPM150 | LCPM250 | LCPM330 | LCPM500 |
Feeding Volume (L) | 75 | 150 | 225 | 375 | 500 | 750 |
Feeding Capacity (Kg) | 120 | 240 | 360 | 600 | 790 | 1200 |
Output Volume (L) | 50 | 100 | 150 | 250 | 330 | 500 |
Mixing Power (Kw) | 3 | 5.5 | 7.5 | 11 | 15 | 18.5 |
Mixing Star*Blade | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*3 |
Side Scraper | 1 | 1 | 1 | 1 | 1 | 1 |
Discharge Scraper | - | - | 1 | 1 | 1 | 1 |
Discharging Power (KW) | Pneumatic Discharging | 2.2 | 2.23 | 2.2 |
Weight (Kg) | 750 | 1000 | 1300 | 1500 | 2000 | 2400 |
Item | LCPM750 | LCPM1000 | LCPM1250 | LCPM1500 | LCPM2000 | LCPM2500 | LCPM3000 |
Feeding Volume (L) | 1125 | 1500 | 1875 | 2250 | 3000 | 3750 | 4500 |
Feeding Capacity (Kg) | 1800 | 2400 | 3000 | 3600 | 4800 | 6000 | 7250 |
Output Volume (L) | 750 | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 |
Mixing Power (Kw) | 30 | 37 | 45 | 55 | 75 | 90 | 110 |
Mixing Star*Blade | 1*3 | 2*3 | 2*3 | 2*3 | 3*3 | 3*3 | 3*3 |
Side Scraper | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Discharge Scraper | 1 | 1 | 1 | 1 | 2 | 2 | 2 |
Discharging Power (Kw) | 3 | 3 | 3 | 3 | 4 | 4 | 4 |
Weight (Kg) | 3900 | 5500 | 6000 | 6500 | 9200 | 11000 | 12000 |
Mixing Locus Diagrams
The diagram shows the perfect mixing action of the counter-current planetary mixer from 6 to 60 seconds after materials added. Note that the floor is completely swept by the mixing star's action every 4 revolutions (6 seconds) and that each zone is covered at regular intervals in time.
Factory Visit
Welcome to visit the factory
Product Application
Can be customized according to your project, please contact us!
Concrete | Other Construction Material | Refractory Materials | Others |
Ready-mixed Concrete | Dry Mortar | Shaped refractory | Glass |
Precast Concrete | Wet Mortar | Unshaped refractory | Fertilizer |
Foam Concrete | Gypsum | | Water treatment |
Color Concrete | Aggregate Mixing | | Mine backfill |
Light Concrete | Emulsified asphalt | | |
Shotcrete | Cement adhesive | | |
