Xh-Sct-T16-120A 40mA CT Current Transformer Split Core

Xh-Sct-T16-120A 40mA CT Current Transformer Split Core

US$2.00-4.00 100 Pieces (MOQ)

Basic Info.

Model NO.
XH-SCT-T16
Phase
Single
Operation Condition
Indoor
Usage
Measurement
Winding Form
Multilayer Honeycomb Type
Insulating Medium
Insulating Paper
Installation
Active Type
Magnetic Circuit Structure
Single Stage Type
Voltage Transformation Principle
Capacitive Type
Model
Split Core Current Sensor Xh-Sct-T16
Window Size
16mm
Rated Input Current
0-100A
Rated Output Current
0.333VAC, Mv or Ma
Accuracy
0.5 Class
Certificates
UL ,CE ,RoHS
Withstand Voltage
3500V
Weight
100g
Transport Package
Outer Carton with Smaller Inner Box
Specification
CE, UL, ROHS, ISO9001: 2008
Trademark
JIANGYIN SPARK
Origin
China
HS Code
8504
Production Capacity
100000PCS/Month

Packaging & Delivery

Package Size
7.00cm * 4.00cm * 5.00cm
Package Gross Weight
0.100kg

Product Description

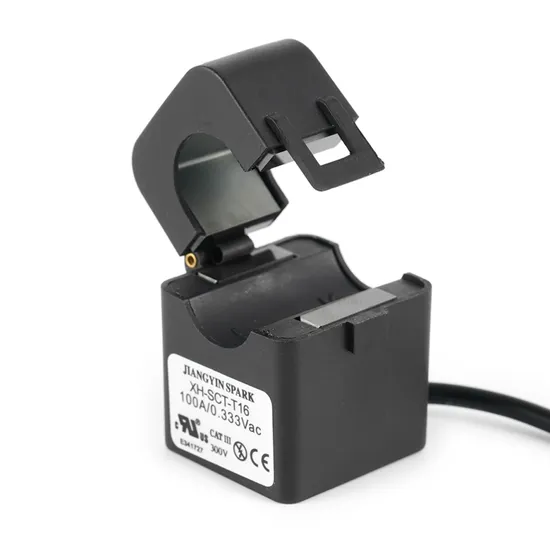

Xh-Sct-T16-120A 40mA 3 Phase Split Core Current Transformer φ16mm Opening With 50 To 120 Amp Rating
Description:
Jiangyin Spark XH-SCT-T16 Series split-core current transformer AC current from 50 to 120 Amps passing through the center conductor.Split core CTs are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement.
Features:
Maximum continuous primary current 120 A AC
Output: mA or 0.333 Volt at rated current
Current Ratio: 500:1,1000:1,2000:1,2500:1,3000: 1
Maximum Primary Voltage: 5000Vac(Insulated Conductor)
Phase angle: Less than 1.5 degrees at rated current
Frequency Range: 50 Hz to 400 Hz
Accuracy: ± 1% from 5% to 120% of rated current
Operating Temperature: -15 Cto 60 C.
Insulation Voltage: 600Vac
Leads: 4Foot(105cm), UL 1015, Twisted Pair, 24AWG
CE ,ETL recognized, and RoHS compliant
Output and leads can be customized
Applications:
Sub-Metering Accurate Measurement
Data Loggers to analyze Building & Machinery Performance
Digital Fault Recorders
Smart Grid Application Features
Load Center
Three Phase Balance Control
In-Factory Display In-Home Display
Inverters for Solar & Wind Turbine Systems
Power Measurement Device For PLC
DIMENSIONS( mm ):
Model Input(A) Max currnet(A) Output
XH-SCT-T16 0.2-100AAC 120AAC mA/0.333VAC
/0-3 VAC

CURVE PERFORMANCE:
Split core CT Test:
Other models of split core current transformer :
Model I.D. Ratio Rated Amps Accuracy
XH-SCT-T06 6mm 1000:1 1, 5,10, 15, 20, 0.5 , 1.0
XH-SCT-T10 10mm 3000:1 5, 15, 30, 50, 75,80 0.5 , 1.0
XH-SCT-T16 16mm 3000:1 50, 70, 100, 120 0.5 , 1.0
XH-SCT-T24 24mm 3000:1 100, 150, 200, 300 0.5 , 1.0
XH-SCT-T36 36mm 3000:1 300, 400, 500, 600 0.5 , 1.0
Package of split core current transformer:
Shipment of split core current transformer:
Our hot sales:
Note * We provide FREE samples for your test!
Purchase only when you are satisfied with the FREE samples.
Please contact us to apply FREE Trial NOW !! * Please let us know model, input current ,output signal,cable leads length
* Or tell us your techincal requirement for the current transformer selection.
* OEM/ODM is welcomed.
Jiangyin Spark Electronic Technology Co.,ltd Certification: ISO9001, UL ,CE, ROSH,TUV
( Your reliable partner for Split Core Current Transformer and Rogowski Coils. )
Address: 263 Dong wai huan road, jiangyin City, Jiangsu Province,214432, China.

Web: sparkelectronic.en.made-in-china.com Package * All our CT will be well packed with bubble & white box in a Carton.
* You can design your own label and package
* Can be netural packing or OEM. Shipping * Products are shipped via UPS / DHL/ FedEx / TNT, etc. (door to door), or air & sea shipment for larger qty.
* L/T: 3-7 days upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
* Shipping via DHL. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country. Warranty * We provide 1 year warranty.
* If the product is defective, please notify us within 3 days after receiving.
* All products must be returned on their original condition, in order to qualify for a refund or exchange of goods. Our Commitment * Better Price than other suppliers for you because of Factory Direct Sale;
* Better Quality than before caused by our 20+ years experience about current transformer;
* Fast Delivery made by our Enthusiasm;
* Timing Reply in 24 hours all about our TEAM's Passion & Patience.
