US$2,800.00-3,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Certification
CE, ISO9001
Self-dumping
Self-dumping
ABS Anti-lock Braking System
ABS Anti-lock Braking System
Product Name
Workshop Trailer
Usage
Heavy Duty Material Transportation
Application
Steel Industry, Factory, Warehouse, Port
Special Function
Anti-Explosion, Heat-Resistant, Lifting, Dumpling
Control Mode
Pendant/Remote/PLC Control
Power Mode
Battery, Cable, Conductive Rails
Transport Package
Tarp and Polywood Case
Specification
2000*2000*500
Production Capacity
700 Sets One Year
Product Description

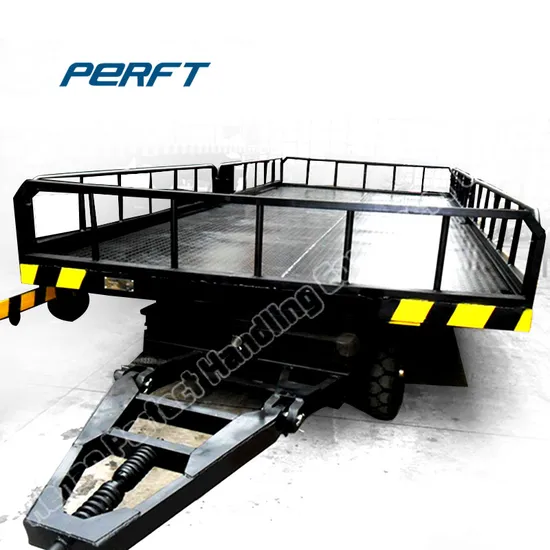

China Supply Non Power Towed Trolley Low Flat Bed Heavy Duty Industrial Tractor Trailer
Product Description
1. Introduction of industrial workshop trailers
The workshop trailers are not powered and are meant to be pulled or towed by another powered transfer cart or a fork lift (of adequate capacity). They are a cost effective alternative to purchasing another powered transfer cart. For on-rail applications, a winch can be used to move carts. Pull type transfer carts are versatile and can be easily customized to suit applications.
Henan Perfect Material Handling line of Industrial Trailers include vary models and features to meet the needs of all major industries including Automotive, Basic Metals, Heavy Manufacturing, Rigging, Stamping, and more.
Detailed Photos
Product Parameters
2. Paremeter of industrial workshop trailers
Model | BWT-2T | BWT-5T | BWT-10T | BWT-15T | BWT-20T | BWT-30T | BWT-45T | BWT-60T |
Rated Load(T) | 2 | 5 | 10 | 15 | 20 | 30 | 45 | 60 |
Table Size(mm) | 2000*1500 | 2500*1500 | 3000*2000 | 3200*2000 | 4000*2000 | 5000*2200 | 6000*2400 | 6000*2500 |
Height of Trailer (mm) | 500 | 600 | 700 | 750 | 750 | 800 | 850 | 950 |
Wheel Quantity | 4 | 4 | 8 | 8 | 8 | 12 | 12 | 12 |
Tire Specification | 254*102 | 305*165 | 559*254 | 559*356 | 22*9-10 | 22*9-10 | 22*10-16 | 22*14-16 |
Tire Material | Polyurethane Solid Wheel, Press-on Solid Tire |
Frame Material | Q235 | Q235 | Q235 | Q235 | Q235 | Q345 | Q345 | Q345 |
Color | Customized |
Speed(km/h) | 0-20 | 0-20 | 0-20 | 0-20 | 0-15 | 0-15 | 0-15 | 0-10 |
3. Application of industrial workshop trailers
The transfer carts vehicle of PERFECT allow movement charges at ground level in all types of industries and applications, such as warehouse, within or without factory, bay to bay, airport, sea port, manufacturing workshop, production lien, and son on.
4. Features of industrial workshop trailers to customize
-----Towed by forklifts , tractor or other machine.
------Welded construction of structural steel
------Two swivel casters and two rigid casters
------Coupling connection for towing
5. Special function of industrial workshop trailers to customize
• Urethane wheels
• Steel rail wheels
• Wheel brakes
• Wheel locks
• Fork lift pockets for transporting
• Weigh scales
• Stainless steel decking
Our Advantages
Certifications
After Sales Service
6. Customer Service
If you are interested in product please feel free to contact us .
