Animal Feed Pelletizing Machine Farm Use Animals Feeding Line Cattle Chicken Sheep Pig Poultry Feed Production Machine Line for Making Pellets

Product Description

Animal Feed Pelletizing Machine Cattle Chicken Sheep Pig Poultry Feed Production Machine Line for Making Pellets Product Description
Introduction:
This feed pellet production line mainly includes raw material crushing, mixing, conveying, pelleting and packaging multi-function in one, advanced design, simple structure, wide applicability, small area, low noise.
The feed production line can process different materials. Corn bran, soybean meal and other grain concentrate and corn stalk, peanut stalk, clover and other raw materials of coarse fiber can be formed at one time or mixed in different proportions.
The feed pellet machine can be equipped with various sizes(from 2mm to 8mm) of molds to produce different size pellets, which can be used to various ploutry, such as chicken,pig,cattle,rabbit,shrimp,fish etc. Complete of poultry animal feed pellet line:
Raw Material - Hammer Mill - Feed Mixer - Screw Conveyor - Feed Pellet Mill - Pellet Cooler - Packing Machine
Product Parameters

	Technical Parameters of 1000kg/h Feed Pellet Line
NO.	PRODUCT NAME	MODEL	POWER
1	Hammer Crusher with airlock	9FQ 500-40	22+0.75 KW
2	Horizontal Mixer	WS-1000	5.5 KW*2
3	Screw Conveyor	LS-160 (5m)	4 KW
4	Feed Pellet Mill	PM-400B	30 KW
5	Storage Bin with screw feeder	1.5m³	0.75 KW
6	Horizontal Cooler With dust collector	LQJ-70	5.15 KW
7	Belt conveyor	QB-380	2.2KW
8	Packing Machine	DCS-50A	2.24 KW
9	Controller	BK-1	380V/50hz/Three Phases
Note: The No.6/7/8 are optional, and the configuration can be adjusted according to customers' needs

Main function of Each Machine

No.	Name	Main Function
1.	Hammer Mill	Crushing various kinds of pellet raw material such us corn, sorghum, wheat, bean, etc into powder.
2.	Feed Mixer	Mix several different materials thoroughly,prepare for the feed pellet mill.
3.	Storage Silo & Screw Feeder	Used to store some materials.There are raw materials in the silo feeding the pellet machine when the mixer is under mixing, which ensures the pellet machine produce continuously; Equipped with spiral feeder, variable frequency motor. The feeding speed is adjustable, fully matching the granulation speed of the feed granulator, and reducing the energy consumption of the feed pellet mill;
4.	Pellet Machine	Making mixed powder feed into different size feed pellets for different animals.The feed pellet mill can be equipped with different diameter flat dies to produce different size feed pellets.
5.	Pellet Cooler	Cooling hot feed pellets and screen dust out of pellet to keep pellet clean,for long time storage.
6.	Packaging Machine	Packing pellets into bag for sale/transportation and long time storage.

Detailed Photos

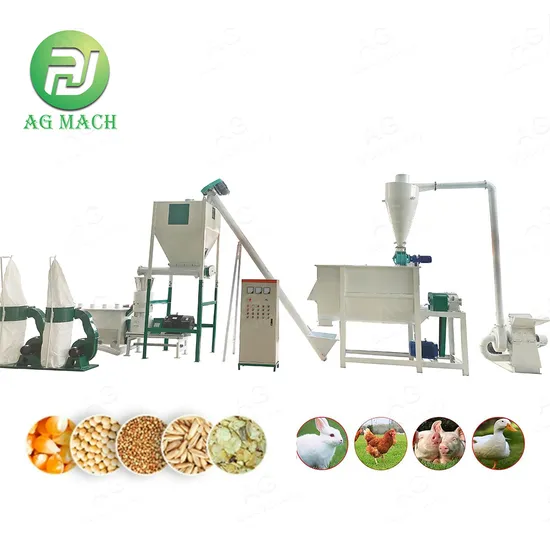

1000kg/h Feed Pellet Line
Process:Hammer mill-Feed Mixer-Screw Conveyor-Storage Silo & Screw Feeder-Feed Pellet Mill-Pellet Cooler-Electric control cabint
Product Advantages
Advantages of Poultry Feed Pellet Production Line
1. Simple structure, wide applicability, small floor space, low noise powder feed, do not add water or little water granulation can be carried out. 2. The moisture content of pellets smaller, more conducive to storage. 3. Grain hardness, surface finish, internal curing fully, can improve digestion and absorption of nutrients. So pathogenic microorganisms and parasites can be killed, be suitable for feeding rabbit, fish, duck and experimental animals. 4. The models has1.5~20 various diameter dies, be suitable for granulation of different materials and get the best results. 5. Suitable for various materials, suppression effect can be guaranteed.
Related Production Line
Different Configuration/Capacity Feed Pellet Line(Animals Feeding Line)
200-300kg/h Feed Pellet Line
Process:Hammer mill-Feed Mixer-Screw Conveyor-Feed Pellet Mill-Electric control cabint
500kg/h Feed Pellet Line
Process:Hammer mill-Feed Mixer-Screw Conveyor-Feed Pellet Mill-Pellet Cooler-Electric control cabint

Technical Parameters of 500KG/H Poultry Feed Production Line
NO	Machine Name	Model	Power	Capacity	Q'ty
1	Hammer Mill	9FQ-420	7.5KW	400-600 kg/h	1
2	Feed Mixer	FH-500	3KW	Volume: 250-500kg/batch Speed: 10-15 mins/batch	1
3	Screw conveyor	LS-200	1.5KW	Total Length:3m Diameter:140mm	1
4	Feed Pellet Mill	PM-300B	22KW	600-800 kg/h	1
5	Pellet Cooler(Optional)	LQJ-50	2.2+0.75kw	500-600kg/h	1
6	Controller	BK-1	/	/	1

1T-2T Feed Pellet Line
Raw Materials/Finished Pellets
Suitable for processing different kinds of raw materials:
1. Cereals:soybean, maize,corn, grain,sorghum,corn flour , wheat flour ,crop stalks (corn stalk, sorghum stalk, cotton, rape stalk,
peanut seedling, sunflower stalk), chaff, grasses, shrubs
2. Coarse fiber: wheat bran, corn stalk, soybean meal,grass meal,rice husk, grass, groundnut shell, cottonseed hull.
3. Additives: molasses, vegetable oil, Amino acid, bone meal, vitamin.
Final different size feed pellet:
1. Diameter of final feed pellets: 2mm, 3mm. 4mm, 5mm. 6mm, 8mm, 10mm, 12mm etc.
2. Length of feed pellet: Adjustable
Note:The same feed pellet line/machine can use die plates (with different hole diameters) to produce feed pellets of different sizes. Packaging & Shipping
