3.5cbm Self Loading Concrete Mixer for Sale

Product Description

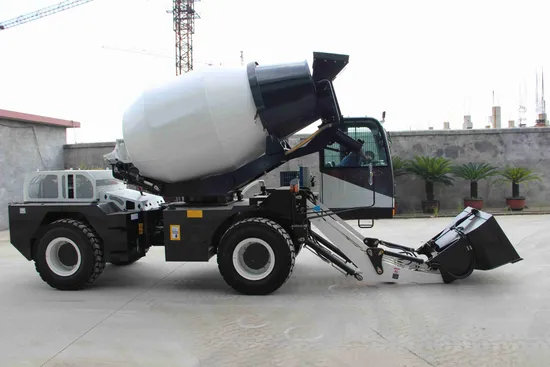

Self loading mobile concrete mixer truck for sale price
Successful Project

self loading concrete mixer truck in the Philippines
self loading concrete mixer truck in Cuba
self loading concrete mixer truck in Myanmar

Cooperative Partners
Product Overview
self loading concrete mixer truck features 1. The main hydraulic components are all imported;
2. Save electricity 100 degrees every day without a blender;
3. Don't need concrete mixer truck anymore ;
4. No need wheel loader to load material anymore ;
5. The counterweight mounted on the heavy duty saddle can be hydraulically slewed at 270°and automatically locked by a hydraulic brake.
6. Thickness and material of mixing tank with high strength steel 4-5mm

Self loading mixer truck advantages
1.Save labor. Self loading concrete mixer truck only need 2 workers to operate., no more need of 12 transporter, 4 loaders, 1 operator , 3 distributors and 2 water loader in generally . So you can save the money back in three months.
2. Produce high quality concrete. Aimix self concrete mixer truck have weighing system to keep the concrete is of good quality. 3.The Voltage can be changed according your request.

Name	Item		Spec
Overall machine	Net weight		8300kg
	Overall size		7500*2700*3880mm
	Transmission		Full Hydraulic
			4WD
	Brake		Air brake
	Chassis		Off-road
	Tread		1780mm
	Wheelbase		2250mm
	Loader bucket		Capacity	0.6cbm
			Control	Hydraulic
	Tilt Angle		30%
	Speed		High speed	0-25KM/H(40KM/H)
			Low speed	0-9KM/H
		Min turning radius	6.5m/r
		Tyre Model	16/70-20
Engine		Type	Yunnei
		Rated Power/RPM	92KW/2400RPM
		Max Torque/RPM	460N.W/1400RPM
		Cylinder	4
		Starter	Electric
		Cooling type	Water Cooling
Maxing Drum		Drum full capacity	6.2cbm
		Drum work capacity	4.0 cbm
		Bank angle	16°
		Self rotation angle	270°
		Rotation speed	21R/min
Chute		Swing Angle	≥60°
		Angle control	Hydraulic
		Size	Long :176CM
			Short :40CM
Loader		Weight model	Computer control
			Concrete standard	C15.C20.C25.C30
		Accuracy	Cement	≤±2%/time
			Relative error	≤±3%/time
			Water	≤±1%/time
			Additive	≤±1%/time
			Admixture	≤±2%/time
Loader control		Hydraulic control 4 way stick
