Portable Magnetic Drill Machine with Adjustable Speed Control

Product Description

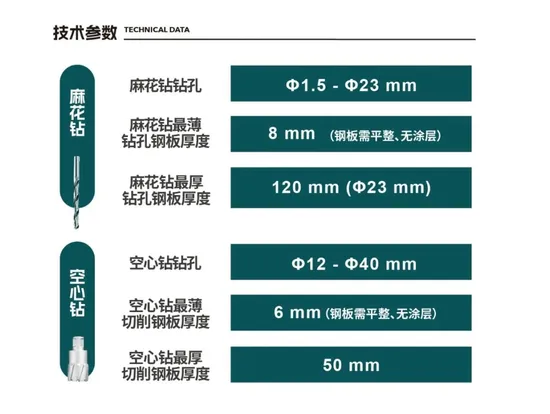

Detailed Description of JC2304 Magnetic Drill I. Product Usage Features The JC2304 magnetic drill is a portable and high-efficiency electric tool, primarily used for drilling, tapping, and core extraction on ferromagnetic materials such as steel. Its main applications include: Steel Structure Processing: Suitable for drilling operations in complex environments such as shipbuilding, bridge construction, steel structure engineering, subway construction, and large equipment maintenance. Pipeline Engineering: It can solve the problem of waste removal after pipeline drilling and is also capable of efficiently drilling stainless steel pipes and plates of certain thicknesses. Industrial Maintenance: In scenarios such as power plant maintenance and large equipment repair, the JC2304 magnetic drill can perform quick and precise drilling operations. Multi-Angle Operations: Due to its portability and flexibility, it can be used for drilling at various angles, including vertical walls and inverted positions, making it ideal for high-altitude work. II. Specifications The main technical specifications of the JC2304 magnetic drill are as follows: Parameter Name Parameter Value

Rated Voltage	220V
Rated Frequency	50Hz
Rated Power	1300W
Maximum Drilling Diameter	Twist drill φ23mm
Maximum Stroke	210mm
Magnetic Base Force	13000N
Rated Speed	330r/min
Weight	Approximately 21kg

In addition to these specifications, the JC2304 magnetic drill also features: Speed Adjustment: It supports forward and reverse speed adjustment, allowing users to adapt to different materials and processing requirements. Multi-functionality: It can be equipped with various accessories such as twist drills, core drills, and taps, enabling integrated operations for drilling, tapping, and core extraction. Portability: Compact and lightweight, it is easy to carry and operate, making it suitable for on-site work. III. Quality Standards The quality standards of the JC2304 magnetic drill are based on the mechanical industry standard JB/T 9609-2013. This standard specifies the basic parameters, technical requirements, testing methods, and inspection rules for magnetic drills, which are applicable to magnetic drills that perform rotary cutting operations on metal materials using a direct current electromagnet under general environmental conditions. The key points of the quality standards for the JC2304 magnetic drill are as follows: Electromagnetic Performance: The electromagnetic suction force of the magnetic drill must meet the design requirements, such as the 13000N maximum suction force for the JC2304. The electromagnetic chuck should generate a stable suction force quickly upon power-on to ensure the stability of the drill during operation. Mechanical Performance: The speed and stroke of the drill bit must comply with the technical specifications, such as the rated speed of 330r/min and maximum stroke of 210mm for the JC2304. The guide rails and transmission components should have high precision and good wear resistance to ensure drilling accuracy. Safety Performance: The magnetic drill should be equipped with overload protection and overheat protection to prevent motor damage. The machine must be securely attached to the workpiece before power is applied to ensure safe operation. Precision Requirements: High drilling accuracy, with the deviation of hole diameter from the design dimensions controlled within 0.1-0.3mm. The drilling process should maintain verticality to avoid hole misalignment. Durability: The housing and components of the magnetic drill should be made of high-strength materials with good corrosion resistance and wear resistance. The product should have a long service life with a low failure rate, in accordance with industry standards. Testing and Inspection: The product must undergo rigorous performance testing and quality inspection before leaving the factory to ensure compliance with JB/T 9609-2013 standards. IV. Product Advantages and Application Scenarios High Efficiency: The JC2304 magnetic drill uses electromagnetic adsorption technology to complete drilling operations quickly, offering higher efficiency compared to traditional drilling machines. High Precision: By fixing the machine body with electromagnetic suction, it achieves high drilling accuracy with minimal hole diameter and position deviations. Multi-functionality: It supports a variety of drills and accessories, enabling multiple operations such as drilling, tapping, and core extraction. Portability: Compact and lightweight, it is easy to carry and operate, making it particularly suitable for on-site applications.
