US$12,000.00-100,000.00
|
1 Set
(MOQ)
|
Basic Info.
Plastic Type
HDPE LDPE LLDPE PP Film
Certification
ISO9001:2008, CE
Color
Could Be Customized
Type of Extruder
Deagassing Tyep
After-Sale Service
Engineers Available to Service Machinery Overseas
Stage
Doulbe or Single or Multi
Feeder Type
Force Feeder or Compactor
Machine Type
Single or Double Stage Pelletizing
Material Processing
Compacting ---Pelletizer---Cutting ---Drying
Raw Materia
PP PE Film,Bag ,Bottle Flakes,etc
Keywords
PP PE Plastic Granulating Machine
Name
Plastic Recycling Granulator Machine
Machine
PP PE Pelletizer Line
Transport Package
Wrap Film
Specification
TSSJ100~200 THSJ65~220 TCSJ85~180 TCDJ85~180
Production Capacity
300~3000kg/H
Packaging & Delivery
Package Size
2200.00cm * 400.00cm * 500.00cm
Package Gross Weight
12000.000kg
Product Description

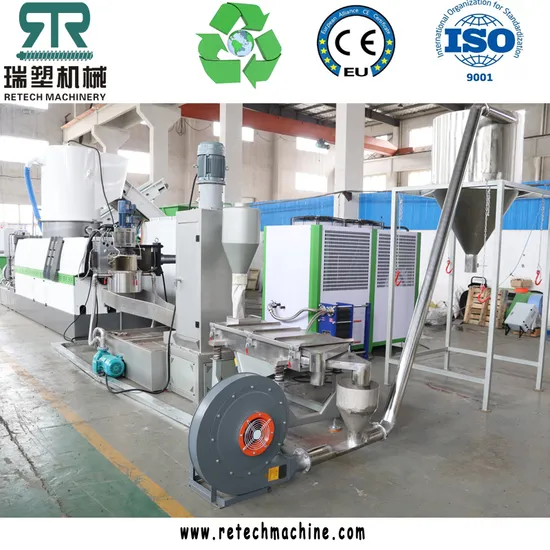

High Capacity Plastic LDPE LLDPE HDPE Film Recycling Pet Film Granulation Recycling Machine
Product Description
Application:
PE, PP film, Silk, Flakes (≤0.5mm), HDPE Bags, etc.
Note, our RC series compactor granulator can be pull strip cutting method,or water ring cutting method for option
Consist of:
Belt conveyor(metal detector) → Compactor → Main extruder(vacuum degassing system) → Hydraulic screen changer → Sub- extruder → Hydraulic screen changer → Water ring cutting system →Dewatering machine → Air blow system → Storage hopper → control cabinet.
Product Parameters
For Compactor Pelletizing Line:
Model | Diameter of screw | PE capacity | PP capacity |
TCDJ-85 | Φ85mm | 150-200kg/h | 100-150kg/h |
TCSJ-85/85 | Φ85/85mm | 150-200kg/h | 100-150kg/h |
TCDJ-100 | Φ100mm | 280-350kg/h | 250-300kg/h |
TCSJ-100/100 | Φ100/100mm | 280-350kg/h | 250-300kg/h |
TCDJ-130 | Φ130mm | 480-550kg/h | 400-500kg/h |
TCSJ-130/130 | Φ130/130mm | 480-550kg/h | 400-500kg/h |
TCDJ-160 | Φ160mm | 650-800kg/h | 600-750kg/h |
TCSJ-160/160 | Φ160/160mm | 650-800kg/h | 600-750kg/h |
TCDJ-180 | Φ180mm | 800-1200kg/h | 750-1000kg/h |
TCSJ-180/180 | Φ180/180mm | 800-1200kg/h | 750-1000kg/h |
For Force Feeder Film Pelletizer:
Model | Diameter of screw | PE capacity | PP capacity |
TSDJ-100 | Φ100mm | 100-150kg/h | 90-120kg/h |
TSSJ-100/100 | Φ100/100mm | 100-150kg/h | 90-120kg/h |
TSDJ-120 | Φ120mm | 200-250kg/h | 180-200kg/h |
TSSJ-120/120 | Φ120/120mm | 200-250kg/h | 180-200kg/h |
TSDJ-150 | Φ150mm | 280-350g/h | 250-300kg/h |
TSSJ-150/150 | Φ150/150mm | 280-350g/h | 250-300kg/h |
TSDJ-180 | Φ180mm | 380-420kg/h | 320-360kg/h |
TSSJ-180/180 | Φ180/180mm | 380-420kg/h | 320-360kg/h |
TSDJ-200 | Φ200mm | 450-500kg/h | 380-400kg/h |
TSSJ-200/200 | Φ200/200mm | 450-500kg/h | 380-400kg/h |
