US$2,900.00-4,550.00
|
1 set
(MOQ)
|
Basic Info.
Controlling Mode
Artificial
Cylindrical Grinder Type
Surface Grinding Machine
Certification
ISO 9001, Surface Grinding Machine
Grinding Wheel Size
180*(3-13)*31.75
Max Distance From Spindle Cente to Table
410mm
Coolant Pump Motor
0.12*2
Chuck
Permanent Magenetic Chuck
Color
Customer Requirement
Spindle Speed
28000(50Hz)/3360(60Hz)Rpm
Dimension
1490*1100*2060mm
Transport Package
Wooden Package
Production Capacity
200 Sets
Product Description
Product Characteristics:
1. Imported high accuracy grinding head.
2. High quality resin, ageing treatment.
3.Taiwan high quality hydraulic system and high precision grinding head.
Specification sheet:
MSI: Longitudinal and cross ward automatically, Z axis with servo motor.

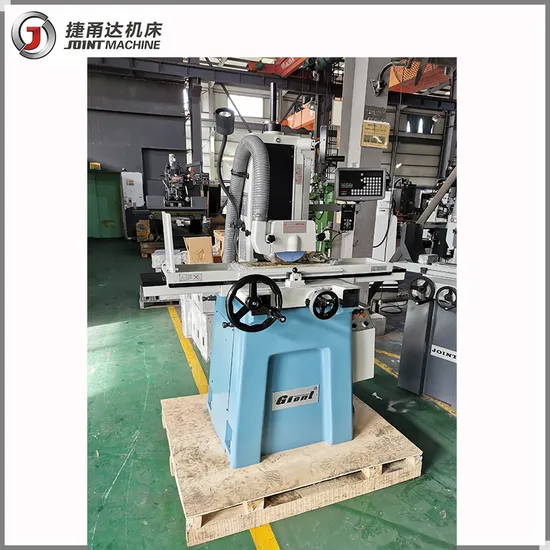

Model | G-618M |
Table size | mm | 460*150 |
X axis travel | mm | 470 |
Y axis travel | mm | 160 |
Table side way | | Slide way |
Max distance from spindle center to working table | mm | 410 |
Auto crossward feed | mm | - |
Crossward feed of hand wheel | 1 Rev | 5 |
1 Div | 0.02 |
Auto vertical feed | mm | - |
Vertical rapid moving feed | mm | - |
Vertical feed of hand wheel | 1 Rev | 1 |
1 Div | 0.005 |
Rotation speed | 50HZ | rpm | 2800 |
60HZ | rpm | 3360 |
Grinding wheel size | | Φ180×(3-13)×31.75 |
Spindle motor | | 2*2/1.5*2 |
Hydraulic motor | | - |
Crossward driven motor | | - |
Vertical driven motor | | - |
Coolant pump motor | | 0.12*2 |
Dust-clean motor | | 0.75*2 |
Dimension (L*W*H) | mm | 1490*1100*2030 |
Weight | kg | 850 |
Standard accessories: 1. Permanent magnet chuck 2. Dust clean / Coolant system 3. Grinding wheel 4. Oil pump 5. Working light 6. Wheel balance arbor 7. Wheel flange and extractor 8. Wheel dressing diamond tip and holder 9. Tool and toolbox 10. Operation manual | Optional accessories: 1. Two axis DRO 2. Coolant system + Dust suction 3. Balancing bracket 4. Inverter 5. Demagnizer 6. Vice 7. Punch dressor 8. Universal dressor |
Accessories:
Electric magnet chuck Permanent magnet chuck Demagnizer
Dust-suction Coolant system Balancing bracket
Overview:
Company Information: Shenzhen Joint Technology CO.,LTD., was established in 1995. One of our headquarters is located in PingHu town, Shenzhen City ,Guangdong province ,China, we are dedicating to research and development, production, sale, and service of mold processing machine tools and specialized machine tool equipments for machine work of excellent quality for more than two decades.
There are eight series of products-high speed turret milling machine, precision surface grinding machine, EDM machine tool, CNC milling machine, NC milling machine, Gantry type machine center, CNC engraving machine, and CNC lathe machine
Our own brand "JOINT " Has been the top quality machine's signal in domestic sales, JOINT also has been recognized as " GUANGDONG Famous Brand ", and milling machine was recognized as " TOP 10 Famous Brand of Milling machine " in China. Our product had been exporting to Europe, South America, Southeast Asia, the middle east etc, and enjoyed a good reputation there, Welcome your visit !
