Submersible Agitator Qjb Series

Product Description

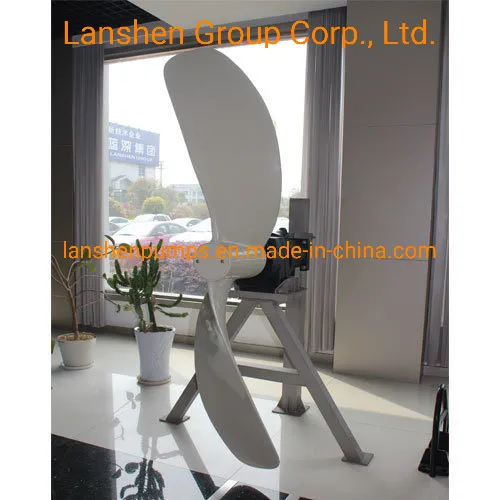

QJB submersible agitators are able to be located at any position. They have the best efficiency. They are widely used in waste water treatment plants and industry process to agitate the suspended substances contained water, watery slurry, icy water, liquid from industry process, roast liquid, etc. They can be also used to create water flow in the tank, to open up water channel, to oxygenate fishing pound, to prevent pound form icing.
CHARACTERISTIC
QJB agitator has the characteristic of compact structure, easy to install, simple to operate, easy to maintain, small power of the motor and low noises level.
IDENTIFICATION CODES
QJB 1.5/4-1100/2-60 /B QJB- Submersible agitator 1.5- Motor power 4- Pole number of the motor 60- diameter impeller 2- lamina 1100- rated rotate speed C/S/P- material
UTILITY CONDITION
The agitators can be operated normally and continuously at the following conditions: 1. Altitude of up to 1000m; 2. Max medium temperature of up to 40ºC; 3. Medium pH of between 5 and 9; 4. Liquid density of up to 1150kg/m3 5. Submersion depth of up to 20m; 6. Viscosity of up to 50cP in tank of volume between 1000 and 3000m3, viscosity of up to 1000cP in tank of volume between 500 and 700m3.
SPECIAL CAUTION
The agitator shall work entirely under water and shall not work in the ambient of explosion and fire hazardous area and corrosive gas or liquid.
TYPICAL USAGE
The agitator power is decided on the volume, density and viscosity of the agitated liquid and agitating depth. Several agitator are used in large tank.

Model	Power	Current	Speed	Blade dia.	Axial thrust	Weight
	KW	A	rpm	mm	N	Kg
QJB0.85/8-260/3-740C/S*	0.85	3.2	740	260	163	55
QJB1.5/6-260/3-980C/S*	1.5	3.9	980	260	290	55
QJB2.2/8-320/3-740C/S*	2.2	5.9	740	320	582	110
QJB4/6-320/3-980C/S*	4	9.3	980	320	609	115
QJB1.5/8-400/3-740S	1.5	4.5	740	400	600	70
QJB2.5/8-400/3-740S	2.5	7.3	740	400	800	70
QJB3/8-400/3-740S	3	8.0	740	400	850	70
QJB4/6-400/3-980S	4	9.6	980	400	1200	73
QJB4/12-620/3-480S	4	14.5	480	620	1100	184
QJB5/12-620/3-480S	5	18.0	480	620	1800	184
QJB7.5/12-620/3-480S	7.5	26.7	480	620	2600	229
QJB10/12-620/3-480S	10	29.3	480	620	2900	229
QJB12/12-700/3-480S	12	32	480	700	3100	250
QJB15/12-620/3-480S	15	42.8	480	620	4200	305
QJB18.5/12-620/3-480S	18.5	55	480	620	5300	315
QJB22/12-620/3-480S	22	65	480	620	6100	335
Note: * indicates the material of the casing is cast iron, others are stainless steel
Performance parameters of the submersible slow-speed agitator
Model	Power	Current	Speed	Blade dia.	Axial thrust	Weight
	KW	A	rpm	mm	N	kg
QJB3/4-2500/2-29B	3	6.64	29	2500	1960	220
QJB4/4-2500/2-33B	4	8.62	33	2500	2640	290
QJB5.5/4-2500/2-39B	5.5	11.7	39	2500	2920	290
QJB7.5/4-2500/2-43B	7.5	15.9	43	2500	3230	300
QJB2.2/4-2200/2-30B	2.2	5.05	30	2200	1305	210
QJB3/4-2200/2-34B	3	6.64	34	2200	1810	210
QJB4/4-2200/2-38B	4	8.62	38	2200	2420	280
QJB5/4-2200/2-43B	5.5	11.7	43	2200	2760	290
QJB1.5/4-1800/2-34B	1.5	3.65	36	1800	1120	190
QJB2.2/4-1800/2-39B	2.2	5.05	39	1800	1332	200
QJB3/4-1800/2-44B	3	6.64	44	1800	1815	200
QJB4/4-1800/2-52B	4	8.62	52	1800	2360	280
QJB5.5/4-1800/2-62B	5.5	11.7	62	1800	2820	280
QJB1.5/4-1600/2-39B	1.5	3.65	39	1600	680	155
QJB2.2/4-1600/2-43B	2.2	5.05	43	1600	910	165
QJB3/4-1600/2-51B	3	6.64	51	1600	1548	165
QJB4/4-1600/2-62B	4	8.62	62	1600	1810	170
QJB1.5/4-1400/2-43B	1.5	3.65	43	1400	650	150
QJB2.2/4-1400/2-50B	2.2	5.05	50	1400	845	160
QJB3/4-1400/2-65B	3	6.64	65	1400	1250	160
QJB4/4-1400/2-70B	4	8.62	70	1400	1680	172
QJB2.2/4-1100/2-80B	2.2	5.05	80	1100	1925	160
QJB3/4-1100/2-110B	3	6.64	110	1100	2240	160
QJB4/4-1100/2-130B	4	8.62	130	1100	2640	165
