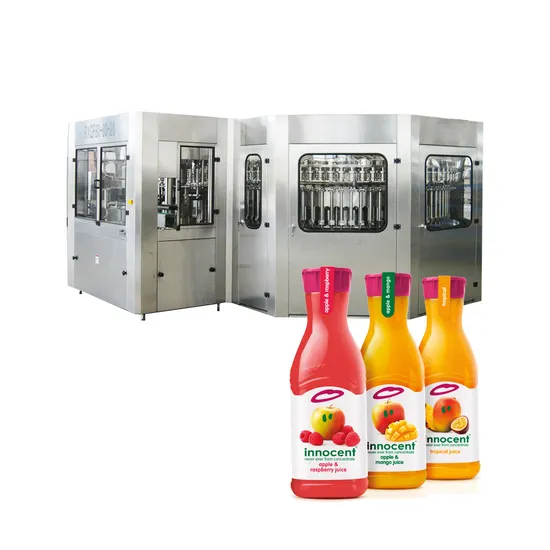

Whole Bottled Juice Production Line
The machine is mainly used for washing/filling/capping PET bottle juice, tea drinks and all kinds of energy drink for hot filling. Only need to change a few spare parts, that can suitable for filling pure water and mineral water.

1) Bottle infeed 2) Discharge Starwheel


Bottle infeed by combination of infeed starwheels. Nylon starwheel and conveyor belt work together
Equipped with bottle jam protection device. to discharge bottles.

3) Rinser

l. The rotary wheel is a fully stainless steel welded structure.
2. The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.
3. The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
4. All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
5. The rinser is driven by driving system positioned inside machine frame via gear transmission.
6. Transfer starwheel
7. Made of stainless steel of superior quality.

4) Filler
l. Rotary wheel fully made of stainless steel SUS 304.
2. Gravity filling method.
3. Filling valves are made of SUS316L.
4. Filling valves are reasonably structured with accurate filling.
5. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.
6. Level of cylinder is controlled with float-ball.
7. Filler is driven through gears inside the machine frame.
8. Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.
5) Capper

Capper is the machine with highest precision, influence very much with the stability and reliability of the filling monoblock. Our capper features as follows:
l. The equipment is designed with the support of experts from school of engineering and mechanical in Shanghai Jiao Tong University, and uses the technology of Arol from Italy, most advance technology in the world, developed with the experience of asepsis filling machine. For example, I) extruding wheel (main part to control the stability when sealing), uses the technology of Arol. Kinematical and kinetic design of the wheel by experts improves the stability and credibility of the equipment. II) Sealing faucet (main part to control the credibility of sealing), is improved by experts with the design of alnico. Besides the magnetic contortion variation device, there is variation dial which makes variation more easily. The benefit of this design is not only it can set the contortion, but also it makes contortion more precise and credible, and reduces inferior.
Tilting device
General description
The equipment is developed to match the hot filling beverage producing line, It have product inclined , using the product own temperature to sterilize the cap for second time, and soft the air -proof washer of caps, to tighten the closely between the bottle and cap. Sterilization time is over 30s. After sterilization, the conveyor will make the bottle stand automatically. In the whole process we use two vertical bars for direction, and have bottle inclined, continue the sterilization time and stand automatically. The whole process is stable.

Main features

1) Main motor adopts variable speed and it is easily to set the producing speed.
2) The whole body is stainless steel (SUS304), clean and sanitary outlook.
3) Material in the bottle embellish the bottle mouth completely and special device can be set to fulfill the track vibration in the process of bottle forwarding, and material in the bottle interchange the heat.
4) Conveyor system is using the macromolecule material, join the heat-endurable board and stainless steel fringe, the platform is flat and little abrasion
5) Wide fringe board is equipped with the heat-endurable rubber washer to ensure the gap in the whole process, ensure the stable forwarding of the bottle.

Cooling tunnel

PLJ Series cooling tunnel machine is a new design of cooling machine which absorbs advanced technique of the similar domestic and foreign equipment. It adopts the treatment of three-stage circulating cooling water and is used for the cooling of drinks which does not contain gas, such as tea drinks, fruit juice, soy sauce, etc. The cooling time depends on users' speed regulation. The machine is fabricated of stainless steel (SUS304) and has an aesthetic appearance, whose system is safe and reliable.

Shrink Sleeve Labeling Machine
Features
1. Whole machine adopt qualified stainless steel and good-quality of aluminum alloy , compact and reasonable fracture, convenient to adjust;
2. The label roll frame of shrinkage film with adjustable device, convenient to adjust according to differ volume label 5″~10″paper tube.
3. Simply installation, then can convenient for square and round bottle.
4. No need of instrument, rotary mechanism is convenient to adjust, apply to different bottle type.
5. Unique sleeve labeling method, adopt pressing sleeve labeling method, not only convenient but also reasonable.
6. Control the feeding system automatically, and flat the shrinkage film and adjust strain simultaneity.
7. Unique design knife plate, in the determined range, can change the knife base. Knife changing quickly and conveniently.
8. Middle guide-pole clip system, mould changing quickly, no need any instrument.
9. Label location system, can promote and demote in-phase adjust location according to specific bottle type requirement.
10. Imported servo system and high-sensitivity photoelectric from Japan, with high cutting precision of label.
11. Stainless steel electric control cabinet, OMRON PLC, imported from Japan.
12. Adopt advanced man-computer Interface auto controlling technology, key electric component all adopt international famous industrial brand.

PE Film Shrink Wrapping Machine MB series machine has been designed for no tray, no cardboard case, packing with low cost in the operations, it is widely used in food, beverage, chemical and office industries
Main performance features
Compact & artistic shape. The frame is novel, unique.
Electronic induction feeding film, action is balanced and quickly replacing film.
Isothermal sealing cutter. The seal intensity is above cooling sealing cutter 3 times, the seal is even and the life is above cooling sealing cutter 80 times.
Transport system with speed regulation by frequency variation, the transmission action is precise and synchro
The shrinkage chamber uses centrifugal thermal air circulation system, configuration is logical, heat insulation heat preservation, thermostat precision is high and the packing effect is better.
Disposition: SIEMENS, OMRON, UNIQUC, etc. advanced control component in the world, Well-equipped.
Technical details

washing, filling and capping heads Model (RXGF)	14-12-5	16-16-5	24-24-6	32-32-8	40-40-10	50-50-12	60-60-15	72-72-15
Production capacity(500ml) (B/H)	5,000	7000	10,000	15000	18000	22000	24000	30000
suitable bottle specification(mm)	φ=50-110=170 330-2250ml
Washing pressure(kg/cm 2 )	2-3
Motor power(kw)	Main motor 2.2kw	Main motor 2.2kw	Main motor 3kw	Main motor 5.5kw	Main motor 7.5kw	Main motor 11kw	Main motor 15kw	Main motor 19kw
Overall dimensions (mm)	2400×1650 ×2500	2600×1920 ×2550	3100×2300 ×2800	3800×2800 ×2900	4600×2800 ×2900	5450×3300 ×2900	6500×4500 ×2900	7680×6640 ×2850
Weight (kg)	2500	3500	4500	6500	8500	9800	12800	15000
