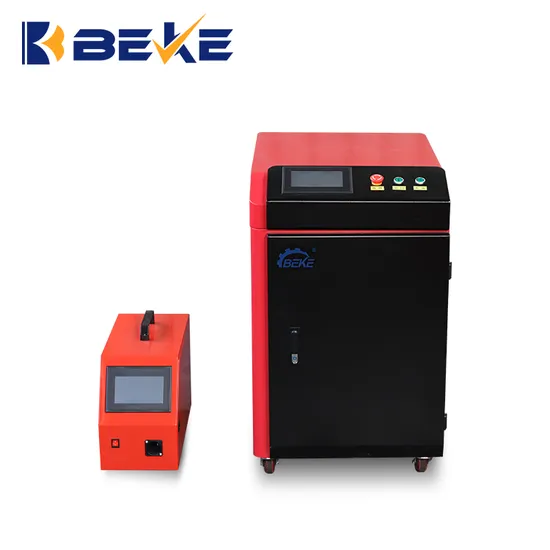

Beke CNC Laser Welding Machine Sheet Steel Metal Welding

Beke CNC Laser Welding Machine Sheet Steel Metal Welding

US$6,800.00
1-4 set
US$5,800.00
5+ set

Basic Info.

Model NO.
laser welding machine
Application
Manufacturing Industry
Technical Class
Continuous Wave Laser
Control
Automatic
Power Density
Heat Conduct Welding
Laser Classification
Optical Fiber Laser
Type
Optical Fiber Transmission Laser Welding Machine
Model
Bk-2000W
Laser Source
Max
Water Chiller
Hanli
Laser Head
Swing Laser Head
Transport Package
Wooden Box or Container Directly
Specification
1400*680*1500mm
Trademark
BEKE
Origin
China
HS Code
8515809090
Production Capacity
100 Set/Month

Product Description

Product Description

Technical Data
Power 2000w
Laser wavelength 1070 nm
Fiber length Standard 10M
Operation mode Continuous / modulation
Welding machine speed range 0-120mm/s
Cooling water machine Industrial thermostatic water tank
Working environment temperature range 15-35ºC
Humidity range of working environment < 70%, no condensation
Recommended welding thickness 0.5-3mm
Welding gap requirements ≤0.5mm
Working voltage AC380V
External dimensions 1400mm*680mm*1500mm
Equipment weight 240KG
Wide range of applications, cutting and welding: It can weld a variety of materials: carbon steel, stainless steel, galvanized sheet, white iron, copper, aluminum, etc., and can also cut a variety of metals.
One-time forming, high efficiency and high speed: single-sided welding, double-sided forming, support fillet welding, vertical welding, tailor welding, stitch welding and other welding forms, which are 5 to 10 times faster than traditional welding, greatly improving production speed and efficiency.
Consistent welding seam, neat and beautiful: the interface is firm, the welding seam is consistent, neat and beautiful, and does not deform.
