US$24,300.00
20-49 Pieces
Basic Info.
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Automatic Grade
Automatic
Spindle Speed Series
Stepless Speed Change
Tool Holder Type
Electric Vertical
Spindle Driven Form
Four Gears
Tailstock Sleeve Movement
250mm
Spindle Hole Fron Taper
Metric 120 1:20
Transport Package
Wooden Case
Specification
3600*2000*2000mm
Production Capacity
40000/Piecs
Product Description
Product Description

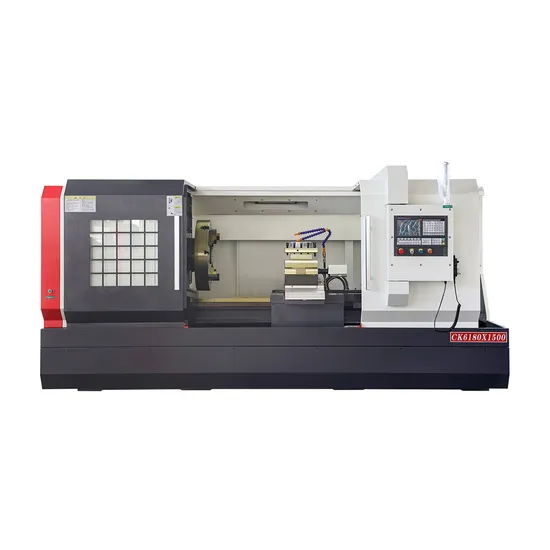

CNC lathe is one of the most widely used CNC machine tools. It is mainly used for cutting the inner and outer cylindrical surfaces of shaft parts or disk parts, the inner and outer conical surfaces of any cone angle, the complex inner and outer curved surfaces of revolution, cylinders, and conical threads, etc., and can perform grooving, drilling, reaming, reaming, etc. Hole and boring etc.
Advantages
Improving labor productivity and processing quality;
Shorten the production preparation cycle and reduce the requirements for workers' technical proficiency.
Features
High processing precision and stable processing quality; Multi-coordinate linkage is possible, and parts with complex shapes can be processed; When the processing parts are changed, generally only the NC program needs to be changed, which can save production preparation time; The machine tool itself has high precision and high rigidity, can choose favorable processing dosage, and has high productivity; The machine tool has a high degree of automation, which can reduce labor intensity. Detailed Photos
Product Parameters
Item | unit | ck61125 |
Maximum turning diameter of the bed | mm | φ1250 |
Maximum turning diameter on the pallet | mm | φ850 |
Maximum processing length | mm | 1500/2000/3000 |
Spindle drive form | / | Fourth gear |
Spindle speed series | / | stepless speed change |
Spindle speed | r/min | 30-84/53-150/125-350/300-835 |
Spindle end form | / | D11 |
Spindle hole front taper | / | Metric120 1:20 |
Spindle through hole diameter | mm | 105 |
X/Z axis positioning accuracy | mm | 0.025/0.03 |
X/Z axis repeat positioning accuracy | mm | 0.01/0.015 |
Workpiece machine accuracy | / | IT6-IT7 |
Work surface roughness | / | Ra1.6 |
X fast moving speed | mm/min | 4000 |
Z fast moving speed | mm/min | 6000 |
Tailstock sleeve diameter | mm | 100 |
Tail sleeve inner hole taper | / | MT6 |
Tailstock sleeve movement | mm | 250 |
Tool holdor form | / | Electric 4-station (optional horizontal 6-station) |
Ball screw diameter*pitch | mm | X:30*06 Z:50*10 |
Tool size | mm | 40x40 |
Packaging & Shipping
Company Profile
Henan Rowdai Machinery Equipment Co.Ltd Located in Zhengzhou.the central place of China. With long time exporting machines experience, we can not only supplying our customers stable quality products ,but also more excellent service.we supply all kinds of Machine tool to international market, like Lathe machine, CNC Lathe Machine, Milling Machine, CNC Milling Machine, CNC Machining Center, Grinding Machine, Hydraulic Press, Bending Machine, Drilling Machine, Press brake, Shearing Machine, and Machine tool accessories. We have our own engineer who has more than years of working experience and is professionally trained. Our trained engineers can help customers on behalf of company not only inspect goods before shipping but also track all links of production process.
