Spider Boom for Precise Concrete Placement by Manufacturer

Product Description

Main Configuration:

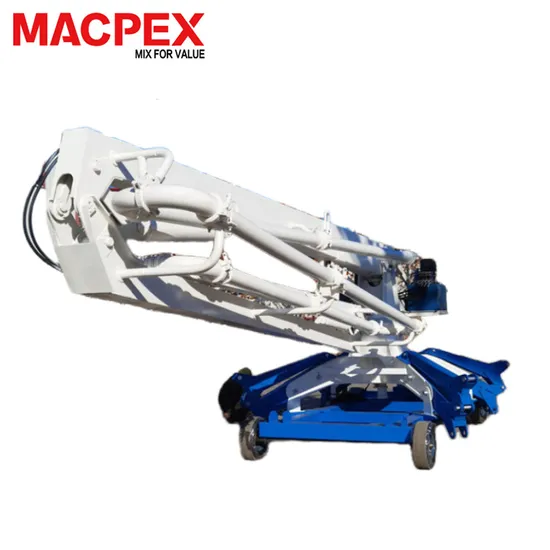

Introducing the Spider Boom for Precise Concrete Placement by SHANDONG MACPEX MACHINERY EQUIPMENT CO., LTD. This hydraulic placing boom is an innovative and efficient construction machine that offers advanced concrete placement solutions. It is a reliable and high-quality piece of construction equipment, perfect for use in concrete batching plants and construction sites. With its trailer-mounted design, it provides a mobile and efficient concrete placement system. Trust in our expertise as a leading construction machine manufacturer.

Item	Unit	Models and parameters
Model		MGY13	MG15	MG17	MG18	MG21	MG24	MG28	MG32
Max. placing radius	m	13	15	17	18	21	24	27.45	31.7
Big arm length	m	3.7	6	6.66	7.66	11	12	12.545	14.5
Big arm elevation	-	-2~84.4	0~70	0~65	0~65	0~65	0~65	0~65	0~65
Medium arm length	m	4.52	5	5.73	5.73	6.5	7.5	8.82	9.2
Medium arm elevation	-	0~180	0~180	0~180	0~180	0~180	0~180	0~180	0~180
Small arm length	m	4.78	4	4.61	4.61	3.5	4.5	6.085	8
Small arm elevation	-	0~180	0~180	0~180	0~180	0~180	0~180	0~180	0~180
Hose length	m	3	3	3	3	3	3	3	3
Concrete delivery pipe	mm	ø125×6	ø 125×6	ø 125×6	ø 125×6	ø 125×6	ø 125×6	ø 125×6	ø 125×6
Tail rotary radius	m	2.72	2.81	3.51	3.93	3.9	3.9	3.9	-
Total power	Kw	4	4	5.5	5.5	5.5	5.5	5.5	15
System pressure	Mpa	24	24	24	24	24	24	24	24
Rotary speed	r/min	0.3-0.8	0.3-0.8	0.3-0.8	0.3-0.8	0.3-0.8	0.3-0.8	0.3-0.8	0.3-0.8
Rotary range	/	0~360	0~360	0~360	0~360	0~360	0~360	0~360	0~360
Mast section	m	1.2×1.2×3	1.2×1.2×3	1.2×1.2×3	1.2×1.2×3	1.2×1.2×3	1.2×1.2×3	1.2×1.2×3	1.2×1.2×3
Bare machine weight	kg	2500	3000	4800	5200	5900	6500	7000
Balance weight	kg	2×900	2×1100	2200	2×1100	3×2000	3×2000	4×2000	-
Control mode		Panel/ Wireless remote control
