US$999.00-5,899.00
|
1 Piece
(MOQ)
|
Basic Info.
Control Mode
Push-Button Control
Position of Computer Room
Without Computer Room
Deceleration Device
With Deceleration Device
Lift Mechanism
Lift Chain
Carrying Capacity
Light Level
Feature
Explosion-Proof, Insulating
Certification
CE, ISO 9001
Rated Loading Capacity
250kg
Max. Lifting Height
3200mm
Control System
Both on The Platform and Ground
Emergency Stop
Manual Emergency Stop Valve
Platform Safety
Underpan Sensor(Optional)
Transport Package
Plywood Case
Specification
1430x1500x4050mm
Production Capacity
200 Units Per Month
Product Description

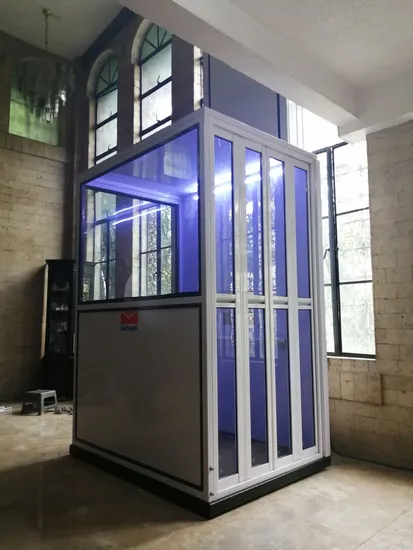

1. Introduce Our wheelchair lift consists of a platform with high side walls, an upper landing gate, a platform mounted gate, a drive system and easy-to use operating controls. Characterized by novel design, perfect stability and safety, nice appearance, low noise andso on, with 0.5-10.0m working range, 250kg capacity. Ideal for indoor and outdoor applications. 2. Specification
Name | No. | Lift capacity (kg) | Materials |
Wheel-chair vertical lift | WL0.25-N | 250 | Aluminum Alloy |
Platform size | 1430mm(L)* 1000mm(W) |
Dimension | 1430mm(L)*1000mm(W)* [Travel height +1600mm(H)] |
Max Platform Height | N(mm) |
Min Platform height | 80mm |
Configuration | Open through or front and side entrances |
Speed | 100mm/s |
Load capacity | 250KG |
Control voltage | 24V/DC |
Power Output | 0.75kw-2.2kw |
Power Input | 220V/50HZ (or customized for local power supply) |
Drive System | Hydraulic |
Control Mode | Inching Switch or Automatic |
Drive Control | Self-resetting system |
Overload | Protection Over current relay |
Material of Platform | Spraying plastic |
Guard panel & drive cabinet (framework) | Spraying plastic |
Automatical ramp | yes |
Column switch | Two column switch, one is on the ground floor, one on the first floor |
Operation Panel | Polished Stainless steel(up down and Emergency drop valve) |
Safety Wane Working Range | 75° |
Working Condition | Both indoors and outdoors |
Working temperature | From -10°~60°C |
Installation | Non-pit installation, directly fixed to concrete floor (the concrete floor below the platform shall not be lower than the ground) |
Control Device | Calling box (installed on the wall nearby) and remote controller(Extra optional) |
Emergency Stop | The lifting and lowering process can be stopped immediately by pressing the emergency button. |
3. Company Information MORN has devoted itself to the research and development, design and manufacture, salesand service of home lift, scissor lift, cargo lift and other hydraulic equipment. As a more than 8 years export experience supplier of hydraulic equipments supplier, Sinicmech machinery has more than 20000 square meters producing shop and assembly shop. That we have many advanced production equipment for cutting steel structure, machine parts, including scissor structure, platform, hinge pin, beams, articulated boom and other small parts. which made the precise scissor lift structure and boom lift, beams, and even the small needed parts, this is a great improve for our products quality and user's safety. 4. After-sale service A. We offer 12 month warranty apart from artificial faults, during warranty time, we will bear the cost of parts. B. If it is necessary for you, our engineer are available to service. C. We offer 24 hours service for technical support and any assistance.
