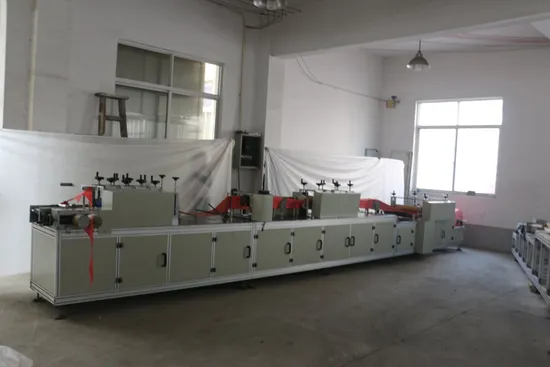

New Disposable Nonwoven Blue Surgical Doctor Cap Making Machine

Product Description

New Disposable Nonwoven Blue Surgical Doctor Cap Making Machine
PERFORMANCE CHARACTERISTICS:
ALT-330 Doctor Cap Making Machine adopt advanced ultrasonic welding to non-woven doctor cap forming a fold. It is a fully automatic production machine from raw material supplying to finished product output. With PLC system control, the stability is high, the failure is low. Import deceleration brake motor effectively reduced the defect rate of products. This machine with aluminum alloy rack, the appearance is beautiful and will not get rusted permanently. Under replacing the mould it can produce the different specification doctor caps.
The cap can be applied to electronic manufacturing, clean workshop, food and beverage service industry, food processing, school, spray processing, Stamping hardware, hospital, hand-processing industry, public health centre, beauty salon,
Pharmaceutical industry, factory, public place and so on.
TECHNICAL PARAMETERS:
Type:ALT-330
Power:8.5kw
Power Supply:AC380V or 220V
Designed Speed:120pcs/min
Optimum Speed:60-100pcs/min
Dimension:8250*880*1600mm
Weight:1800kg
INSTRUCTIONS:

No	Item	Quantity
1	Ultrasonic	8sets (Shangrong)
2	Motor	1set TaiWan "YongKun"
3	Suction pump	1set
4	Inverter	1set TaiWan "Sunfar"
5	Sensor	1set Japan"OMRON"
6	PLC	1set Japan "Mitsubishi"
7.	Touch screen	1 set TaiWan "Wei- Lun"

Payment: After 30% of the total value is paid in advance by (T/T),
The left 70% should be paid by (T/T) after you check up the finished
machine. And the cargo will be delivered after all the payment
arrives at our account.
Delivered time: 15days after confirm the order
Warrant term: 1 year
Package: Wooden Packing
Installation and test: The buyer should pay the round tickets ,visa, food and room in your country and our engineers $80 per day if you need our training and installation abroad.
Material roll width :540mm
Material density:25-50gsm, we use 30gsm always
1.Half/full elastic cap need :4mm width elastic
2.cut the band from cap: no need other material
3.tie on the band cap need : 20mm width nonwoven strip
