Wall Mounted Single-Polarized Ceiling Antenna 806-960MHz/1710-2700MHz/3300-3700MHz N Female 6dBi/7dBi/5.5dBi Vswr1.5 Pim3 115dbc 50W

Wall Mounted Single-Polarized Ceiling Antenna 806-960MHz/1710-2700MHz/3300-3700MHz N Female 6dBi/7dBi/5.5dBi Vswr1.5 Pim3 115dbc 50W

US$3.00
50-199 Sets
US$2.90
200-499 Sets
US$2.70
500-1,999 Sets
US$2.50
2,000+ Sets

Basic Info.

Model NO.
WM-0837-IS-NF-A01
Gain
7±0.5dBi
Material
N Female, Nickel Plated
Nature of Operation
Transmitting Antenna
Operating Wavelength
Microwave
Polarization
Linear
Sturcture Form
Wall Mounted Single-Polarized Ceiling Antenna
Usage Occasion
Wall Mounted Single-Polarized Ceiling Antenna
VSWR
≤ 1.5
Product Name
Wm-0837-Is-NF-A01
Impedance
50 Ω
Connector Type
N Female, Nickel Plated
Gain-dBi
≤ 5.5dBi
Pim3
115dbc@2X2w
Input Power(Maxlmum)
50W
Temperature Range
-40ºC~+85ºC
Transport Package
Carton
Specification
WM-0837-IS-NF-A01
Trademark
Nalei/ODM/OEM
Origin
China

Product Description

Product Parameters
Preferred Materials,Compliant with Standards
1.Connector:N Female,Nickel plated.
2.Shell:ABS,White.Precision Machining,Process Specification
Good Craftsmanship Creates Good Quality.
1.Connector:N Female,Nickel plated.
2.Shell:ABS,White.Factory Inspection,Stable Performance
1.Connector:N Female,Nickel plated.
2.Shell:ABS,White.Whole Process Product Quality Control
For Every Environmental Test, We use Equipment for Quality Inspection.1.Tensile Strength Test.2.Bending Life Test.3.Salt Pray Test.4.Temperature Cycling Test.
Industry-specific Attributes
TypeSmall Antenna
ApplicatonRF, Microwave
OriginNanjing,China
CertificationISO9001,ROHS,CE
CustomizationAvailable
TrademarkNalei
Product Description

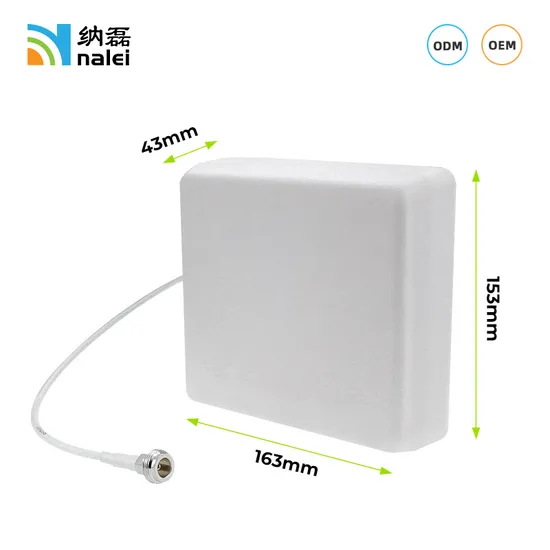

Product NameWall Mounted Single-polarized Ceiling Antenna WM-0837-IS-NF-A01
ModelWM-0837-IS-NF-A01
Material and Plating
ConnectorN Female,Nickel plated
ShellABS,White
Electrical Characteristics
Impedance50 Ω
Frequency Range806-960MHz/1710-2700MHz/3300-3700MHz
Gain6±0.5dBi@806-960MHz/7±0.5dBi@1710-2700MHz/5.5±0.5dBi@3300-3700MHZ
Beam Width@horizontal80deg@806-960MHz/60deg@1710-2700MHz/55deg@3300-3700MHz
Beam Width@Vertical70deg@806-960MHz/60deg@1710-2700MHz/30deg@3300-3700MHZ
Front-to-back Ratio>8@806-960MHz/12@1710-2700MHz/10@3300-3700MHZ
VSWR≤ 1.5
PIM3115dBC@2x2W
Input Power(Maxlmum)50W
Temperature Range-40ºC~+60ºC
ROHSCompliant
Product Display
Packaging & Shipping
Packaging & Delivery
Transport PackageBOX / Carton
Package Size (For Reference Only)30.00cm * 20.00cm * 8.00cm
Package Gross Weight (For Reference Only)0.500kg
Production Capacity10000 Piece/Pieces Per Week
PortNANJING/SHANGHAI,CHINA

Company Introduction
Cooperative Brands
Certifications
FAQ
Frequently Asked Questions
Q: Can you do our Designs (OEM)?
A: lf you have special requirements, welcome to contact us for more details. we can communicate all your reasonable requests honestly.
Q: Is the Price Negotiable?
A: Yes, It is negotiable, but it is subject to your order quantity.
Q: What's the MOQ (Minimum Order Quantity)?
A: Generally speaking 10pcs, but it depends on models.
Q. It is all Right to Add our Logo on your Products?
A: Yes, we can do printing logo or laser logo.
Q: Can you Send Samples to us for the Test?
A: Yes, samples can be sent, Please contact customer service for specific details.
Q: How about your Delivery Time?
A: Generally, it will take 7 to 35 days after receiving your advance payment. The specific delivery time depends on the item and quantity of your order.
Q: Do you Test all your Goods Before Delivery?
A: Yes, we will do a final inspection of the goods before delivery.
Q: How do you Give me your Goods?
A: By air, shipping by sea, truck by DHL, TNT, UPS, FEDEX. Choose the best shipment method according to the actual situation.
Q: Can you Produce According to the Samples?
A: Yes, we can produce your samples or technical drawings. We can build the molds and fixtures.
Q: What is your Sample Policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q: What Payment Methods do you Accept?
A: We accept all payment methods including PayPal, T/T, Credit Card, Western Union, and Bank Transfer. Please contact us for more details. But if you have different requirements, we may discuss them together.
Q. Does the Product Meet the Local Customs Clearance Standards?
A: Our products have been sold in large quantities all over the world, and all products have passed the relevant certifications recognized by the local government. In addition, we provide standardized product information and packaging to ensure full compliance with local customs clearance requirements.
If you have special requirements for customs clearance in your local area, please contact us before placing an order, we can provide timely and effective assistance.
