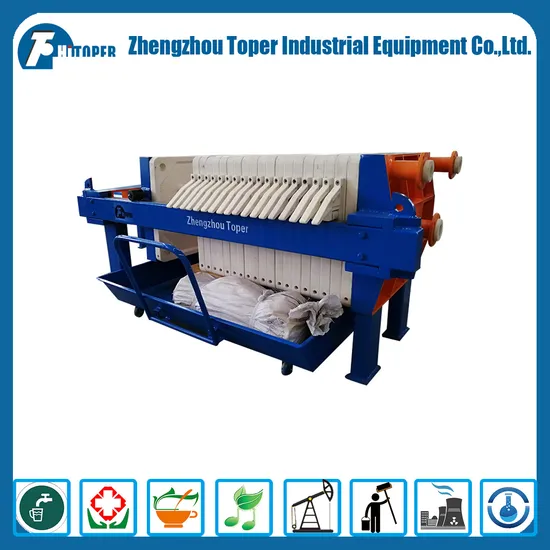

High Efficient Filter Press and Filter Plates Manufacturers in Wastewater Treatment

Product Description

Product Description
High Efficient Filter Press and Filter Plates Manufacturers in Wastewater Treatment
1.Consists of High Efficient Filter Press and Filter Plates Manufacturers in Wastewater Treatment:
1.Beam, High quality carbon steel Q345B and processed with sand blasting to remove rust and oxide skin,then painted by epoxy primer to get higher intensity and corrosion resistance.
2.Filter plate, Polypropylene(PP) with acid & alkali resistance, anticorrosion, innocuity, tasteless, light weight and high strength.
3.Filter cloths, High quality polypropylene acid and alkali proof or high quality polyester acid.
4.Hydraulic unit, China brand famous pumps and hydraulic valve;Carbon steel bending welding, sealing, air filtration external oil pump, cooling effect is good, maintenance is convenient;High and low pressure oil pipe for gb soft connection.
5.Electric control cabinet, PLC control cabinet with Siemens brand or brand Electrical components, Split type or can be fixed on the beam.

2.Operation process:
1.The hydraulic unit drive the head plate to press the middle plates and filter cloth between head plate and tail plate.And chambers form between every two plates.
2.The pump will deliver the mud into the chambers.Solids retainled in the chamber to be cake, and liquid flow out.Until the cakes is full.Then pump stops.
3.With about 10 minutes pressure holding.When you see there is no liquid flow it, the squeezing process finishs.
4.The plate shifter device will help to pull the plates one by one, and cake will discharge automatically.

Product Parameters
3.All types technical parameters:

Type	Filter area (m2)	Filter plate size (mm)	Filter cake thickness (mm)	Filter chamber volume (L)	Filter plate number (PCS)	Filtrating pressure (MPa)	Motor power (KW)	Weight (Kg)	Dimension (mm) (L×W×H)
XY4/450-30U	4	450×450	30	60	9	0.6	2.2	860	1950×700×900
XY6/450-30U	6			91	14			910	2200×700×900
XY8/450-30U	8			121	19			960	2450×700×900
XY10/450-30U	10			151	24			1010	2700×700×900
XY12/450-30U	12			182	29			1060	2950×700×900
XY15/450-30U	15			225	36			1130	3300×700×900
XY16/450-30U	16			243	39			1160	3450×700×900
XY15/630-30U	15	630×630		226	18			1725	2640×900×1100
XY20/630-30U	20			297	24			1993	3940×900×1100
XY30/630-30U	30			452	37			2360	3590×900×1100
XY40/630-30U	40			595	49			2788	4300×900×1100
XY30/800-30U	30	800×800		460	23			2170	3700×1400×1300
XY40/800-30U	40			595	30			2450	4300×1400×1300
XY50/800-30U	50			748	38			2700	4840×1400×1300
XY60/800-30U	60			902	46			2980	5440×1400×1300
XY70/800-30U	70			1056	54			3250	6040×1400×1300
XY30/870-30U	30	870×870		460	23			2580	3180×1200×1300
XY40/870-30U	40			595	30			2925	3570×1200×1300
XY50/870-30U	50			748	38			3318	4110×1200×1300
XY60/870-30U	60			902	46			3712	4550×1200×1300
XY70/870-30U	70			1056	54			4106	4990×1200×1300
XY80/870-30U	80			1210	62			4561	5430×1200×1300

4.Pictures Show:


Certifications

Company Profile
Company Information Zhengzhou Toper isspecialized in design,manufacture and sales of various filtration equipment,as well as comprehensive filtration solutions and projects. Zhengzhou Toper is the leading supplier of industrial eqipment in China,and also the professional export and service provider of fitler and separation equipment.
Customer satisfaction is our utmost priority thus, customer service team is always on the brink to help our customers with their queries at any time.
We believe in working as a unit with an attitude of complete trust and understanding and are determined to provide safe, reliable and competitively priced products to our customers.



All of Toper's products:
1.Program-controlled automatic filter press
2.Membrane filter press
3.Hydraulic compress filter press
4.Mechanical compress filter press
5.Jack filter press
6.Cast iron plate and frame/chamber filter press
7.Stainless steel plate and frame filter press
8.Round plate filter press
9.Cotton cake filter press
10.Cardboard filter press
11.DY belt filter press
12.DYX high pressure belt filter press
13.DNY rotary drum thickning/dehydrating belt filter press
14.Triple-belt thickning and dehydrating filter press
15.SS type three-foot upper discharge centrifuge
16.SD type three-foot and filter bag hoist discharge centrifuge
17.PD type filter bag hoist discharge centrifuge
18.Centrifuge of up discharge, three foot, clean series SSB
19.SX type manual top discharge centrifuge
20.PS type manual top discharge centrifuge
21.SGZ type automatic scraper bottom discharge centrifuge
22.PGZ type scarper bottom discharge centrifuge
23.LW series decanter centrifuge
24.Tubular centrifuge
25.Multi-layer stainless steel frame filter
26.Bag filter
27.Diatomite filter
28.Filter late
29.Filter cloth
30.Vacuum disc filter
After Sales Service
Our Services 1.We have professional person on line to advise you the most suitable type of machie according to your requirement.
2.Provide you comprehensive.Easy-understanding and detail information and technical data about the machie you interested;Solve your confusions or questions about the machine
3.Arrange the schedule if you pay a visit to our factory
4.Send our technical engineer to your area guid the installation,debugging ,training workers and solve the problems if rquired.
Packaging & Shipping
Packaging & Shipping We provide you reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.

FAQ
FAQ How to order filter press:
1.Select the model,plate and fram material,pressing mode and filtering form by considering the filter press introduction and parameters.
2.According to your products,select open flow and close flow ,washable or non-washable,and specify the conditions in the contract.
3.The unit is provided without pump.To order the unit complete pumps,state it in the contract.
4.Our company can supply non-standard model to meet your special demands.
