Automatic Paper Punching Machine Hydraulic Press

Product Description

Product Description

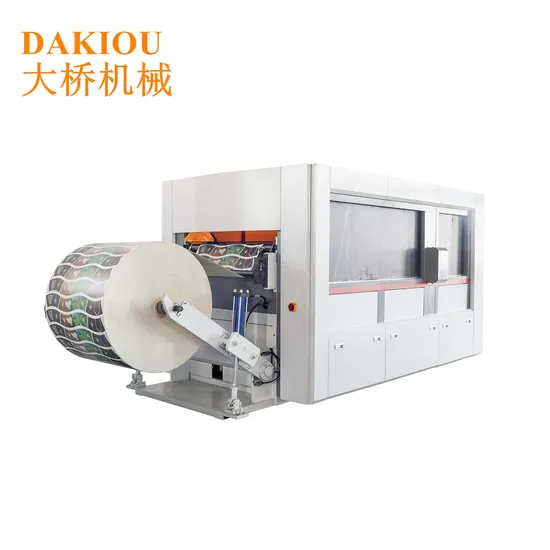

DAKIOU PY-950/1200 SERIES HIGH SPEED ROLL DIE-CUTTING MACHINE PY series high speed roll paper die-cutting machine is an ideal and professional machine in die-cutting,creasing,embossing and full-stripping various PE coated paper,normal paper,corrugating paper and plastic material.

Detailed Images
Technical Parameters

Model:	PY-950	PY-1200
Paper Convey Width:	250mm-950mm	250mm-1200mm
Max roll paper diameter:	1800mm	1800mm
Cut precision:	±0.1mm	±0.1mm
Speed:	150-210times/min	150-210times/min
Maximum cutting size:	950*540mm 950*640mm	1200*640mm 1200*750mm
Maximum Pressure:	350T	350T
Power:	14.5KW	14.5KW
Total Weight:	6200kgs(standard) 7800kgs(heavy)	8400kgs(standard) 100000kgs(heavy)
Overall Dimension:	4200*2100*1850mm	4200*2300*1850mm
Working Air Source:	0.6Mpa
Suitable material:	120-600gsm, white cardboard,PE coated paper,kraft paper,etc

Our Company
Ruian Daqiao packaging machinery co.,ltd(DAKIOU),as a developer and manufacturer of carton erecting,paper cup,roll die cutting and other paper packaging machines,Dakiou looks back on extensive expensive and fast develop spped in this field.Start from 2002,high performance models have evolved thanks to the commitment and know-how of our employees,intensive research and development,and the steady exchange with our customers on their needs and ideas.
Our company successfully certified by IS09001:2008 and products are approved CE certificate.We offer 360°service from advice to assembly,know-how meet technology for global customers.
FAQ We are Manufacturer...
1.Q:Where is your factory? How can I get there?
A: We are located in Ruian City Wenzhou, Zhejiang Province.
To Wenzhou Longwan airport by Air, from Shanghai is about 45mins, from Guangzhou is about 1hr 50mins and from Hongkong is about 2hrs. We will pick up you in the airport.
2.Q:Can your machine be customized?
A: Your better improvement suggestions are highly appreciated. Almost all of our products can be customized, including the sizes, color, logo, package and so on.
3.Q :What's the OLD(order lead time)?
A: For our standard model machines is about 30days after receiving your deposit.
4. Q: How about your package?
A: Our machines are well wrapped by plastic film to be water proof first, then loading and fixing in a plywood case. If by FCL(full container loading) we might use the wooden pallet with plastic film wrapping, without plywood case.
