US$20,500.00-22,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Automatic Grade
Automatic
Certification
GS, CE, ISO 9001
Max.Loading Capacity of Table
200kg
Transport Package
Wood Packaging
Specification
2200*1900*2200
Packaging & Delivery
Package Size
220.00cm * 190.00cm * 220.00cm
Package Gross Weight
2500.000kg
Product Description

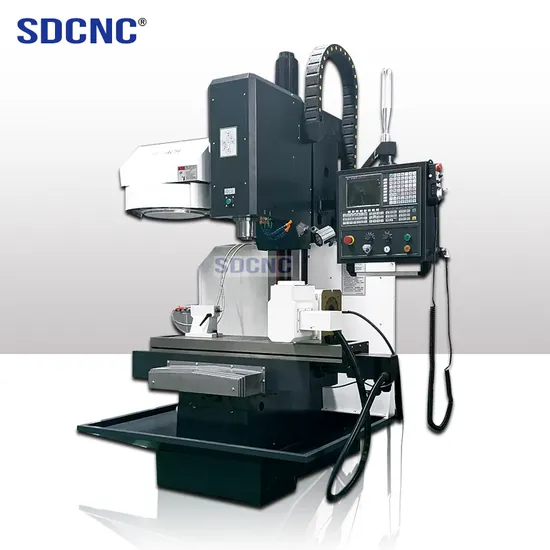

1. Production introduce and useXH7126 vertical machining center the overall rational layout is compact, stable performance and reliable quality,
which can realize the X, Y, Z three-axis linkage, widely used in mechanical processing of aerospace, mould,
automobile, internal combustion engines, textile machinery industries.2. Main structure characteristicX, Y, Z adopts linear guide, made by Taiwan, greatly improve the machining accuracy and efficiency of the machine.
Three-way feed adopts large pitch, high-precision ball screw, three-axis servo motor and ball screw adopt direct
connection form, adopt imported non-clearance elastic coupling, drive no clearance, small inertia, high transmission
rigid, to ensure the positioning accuracy of the machine;The ball screw support adopts pre-tensile structure, which
greatly reduces the influence of thermal deformation on the accuracy of the machine during the long running time.
SPECIFICATIONS
items | unit | XH7126(XK7126 ) |
talbe | Table size | mm | 800×260 |
T-slot size T | mm | 14×3×80 |
Max.loading capacity of table | Kg | 200 |
travel | Travel X,Y,Z | mm | 450×320×420 |
Spindle nose to work table | mm | 90-510 |
Spindle center to column guideway face | mm | 330 |
feeding | Rapid moving of X,Y,Z | m/min | 15,15,15 |
Feeding speed X,Y,Z | mm/min | 1-6000 |
spindle | Spindle nose taper | | BT40 |
Spindle speed range | r/min | 8000rpm |
Spindle power | kW | 3.7 |
accuracy | Position accuracy of X/Y/Z | mm | ±0.015 |
Re-position accuracy | mm | ±0.0075 |
magazine tool | Tools numbers | pcs | 12(XK7126 without magazine tool) |
Max. weight of tools | Kg | 8kg(XK7126 without magazine tool) |
Max. size of tools | mm | Φ130×300(XK7126 without magazine tool) |
other | Overall dimension | mm | 2200×1900×2200 |
weight | Kg | 2400 |
