Large Batch Factories Centerless Round Rod Grinding Machine for Locomotives Automobiles

Product Description

Product Description

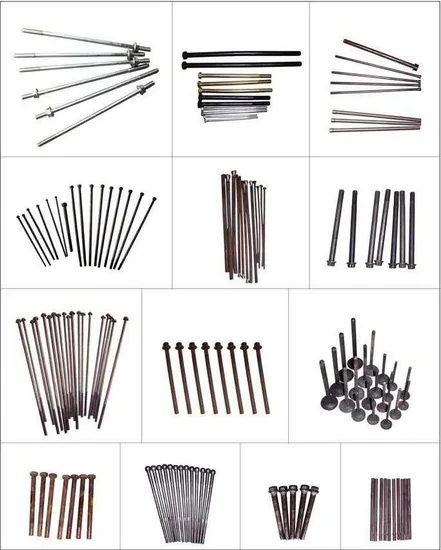

This machine is mainly used for grinding 5-80mm diameter cylindrical parts, suitable for locomotives, automobiles, tractors aviation, aerospace, electronics, instrumentation, bearings, tools, textile machinery and other industries of mass production enterprises. Large batch factories.
Machine Feature:
1. The spindle bearing of the grinding wheel adopts five-piece dynamic pressure bearing, which has large bearing capacity, good rigidity and smooth rotation.
2.The working speed of the regulating wheel adopts a stepless speed change, which is convenient to choose the appropriate speed for parts with different diameters.
3.The regulating wheel can be rotated at a small Angle in the horizontal plane. When grinding conical parts, the grinding wheel does not need to be modified into a cone.
4.The longitudinal movement of the grinding wheel dresser and the regulating wheel dresser is driven by hydraulic pressure, with uniform speed and high precision, and can reduce the labor intensity of the operator.
5.The copying guide rail of the two trimmers adopts double dovetail shaped steel ball structure, which has the characteristics of sensitive copying, high precision and long service life.
6. Needle rolling guide rail is adopted for feed movement, which has the advantages of sensitive movement, high motion precision and long service life. Differential screw rod is adopted for feed mechanism, which is simple in structure and convenient in operation. According to user requirements, double V-shaped dense needle rolling steel guide rail with preloading can also be used for feed movement, which also has the above advantages. Product Paramenters

Item	MT1050	MW1080B
Through-feed dia	2~50mm	¢5-80mm
Maximum grinding length	120mm	180mm
Plunge-feed dia	5-50	5~80mm
Grinding wheel specification	PSA300*150*127mm	P500*150*305mm
Regulating wheel specification	PSA300*150*127mm	PSA300*150*127mm
Grinding wheel speed	1668r/min	1300r/min
Regulating wheel speed	20~200 r/min	10-180r/min
Regulating wheel rotation angle on Vertical plane	-2°~+5°	-2°~+4°
Regulating wheel rotation angle on horizontal plane	-1°~3°	-1°~+3°
Feeding rate per grid for scale	0.002mm	0.005mm
Feeding rate per rotation for scale	0.4mm	0.5mm
Feeding rate per grid for corrector dial	0.01mm	0.01mm
Corrector speed	0.01~4m/min	0.01~4m/min
Center height	220mm	210mm
Grinding wheel motor power	11kw	15kw
Regulating wheel motor power	1.5kw	2.2kw
Lubrication motor power	0.09kw	0.09kw
Hydraulic motor power	1.1kw	0.37kw
Cooling motor power	0.09kw	0.12kw
Machine weight	3300kg	3700kg
Machine size	1950*1750*1650	1940*1670*1500mm
Roundness	≤2μm	≤2μm
Cylindricity	≤3μm	≤3μm
Roughness	Ra 0.32 μm	0.32Ra
