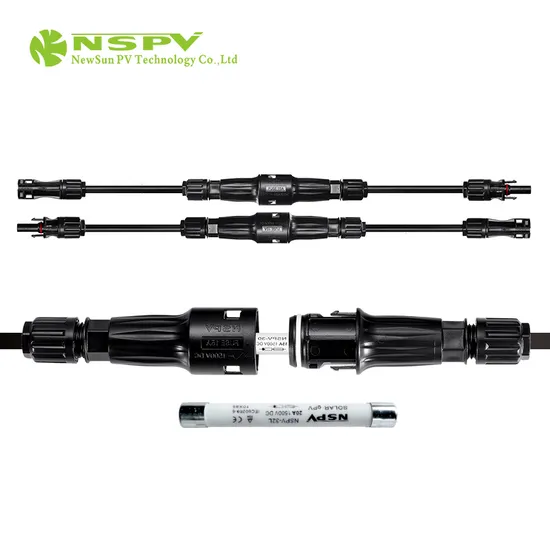

2to1 Solar Branch Harness TUV T-Type Branch Fuse Connector 1500VDC

2to1 Solar Branch Harness TUV T-Type Branch Fuse Connector 1500VDC

US$28.59
1,000-9,999 Pieces
US$25.32
10,000+ Pieces

Basic Info.

Model NO.
FFM TSSB44-003
Application
Solar System
Certification
TUV/CE
Terminal Material
Copper
Interface Type
DC/DC
Rated Voltage
1500V DC
Insulation Material
PPE/PA/TPE
Flame Class
UL94-V0
Degree of Protection
IP68
Safety Degree
II
Suitable Calble Cross Setions
1.5~10mm2
Rated Impulse Voltage
12kv
Transport Package
Box
Specification
23.5
Trademark
NSPV
Origin
China
HS Code
8535900090
Production Capacity
50000pieces/Day

Packaging & Delivery

Package Size
38.50cm * 28.50cm * 26.50cm
Package Gross Weight
1.000kg

Product Description


Product Description
Product Specifications
Insulation material PPE/PA/TPE Safety degree II
Rated impulse voltage 12KV Flame class UL94-V0
Rated voltage 1500VDC Ambient temperature range -40ºC…+85ºC(IEC)
Test voltage 8kV(50Hz,Imin) Suitable cable cross sections 1.5~10mm2 /16-8AWG
Contact resistance ≤0.25mΩ Connecting system Crimp connection
Contact material Copper,Tin plated Nut cap locking force 0.8-1.0Nm
Degree of protection IP68(1m,1H) Upper limiting temperature 110ºC(IEC)
Overvoltage category/Pollution degree CATIII/2 Suitable for fuse size 10*85/14*85
Detailed Photos


Packaging & Shipping
Company Profile NewSun PV Technology Co., Ltd(NSPV) is a company with modernization management, which provide key one-step solution with design, research and development, mass production and sales. The project of our company is divided into two major parts: Firstly, the design, integration, installation and maintenance of PV solar power station, as well as photovoltaic engineering procurement and construction(EPC). Secondly, the development, production and sales of components and parts for PV solar system.
Our products include photovoltaic system connection, system control, system protection, system optimi-zation, etc., which are in line with TUV, CE and other relevant standards. The field involves photovoltaic system application, wind and solar energy complementary, micro-grid integration and others. " Exploration and innovation,quality,honesty and pragmatism , win-win cooperation, social responsibility " is the consistent spirit for NSPV people .
Offer high quality, economical cost, safe solution and reliable technology with optimization in energy conservation and environmental protection is the solid goal for photovoltaic component manufacturers and system installers include NSPV .
We will continuously make contribution to " Green energy" and " Environmental protection" for establishing humans better tomorrow.
FAQ
Q: How can I trust you and your company?
A: Dongguan Newsun PV technology Co.,Ltd has been established for above 13 years, our product were sold in many countries with good feedback, good quality, competitive price which mostly have been approved by TUV, CE and other EU institutions. Furthermore, our company has passed ISO9001 quality management system certification, hold the high-tech enterprise certificate and a number of patents.
Q: What's your shipment method?
A: We can ship by express, air, sea and train. Normally we checked and compared, then provide customer the most proper shipment method.
Q: If I want to release order, what's the process?
A: Thanks. You can send inquiry to us by Made-in-China, or send us by e-mail. We will reply within 24hrs.
Q: What's your contact information?
A: Our Add:14F, 12Building, No.52 Fuhai Road, Xiagang Community, Chang'an Town, Dongguan City, Guangdong.




Looking forward to your contact, thank you!
