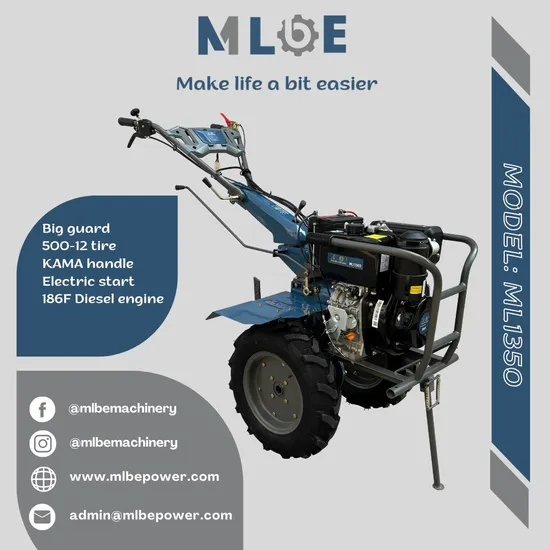

9HP Ml1350 Gear Driven Diesel Cultivator/Motoblok/Kultivator/Tiller Machine/Walking Tractor

Product Description

The Utilizations of MLBE ML1350 Diesel Gear-Driven Tiller

Functional Instruction

1. Breaking up hard soil
Gear-driven tillers are designed to handle harsh soil conditions, making them ideal for breaking up hard, compacted soil that may be difficult to till with a garden tiller.

2. Preparing the seedbed
Gear-driven tillers can be used to prepare seedbeds for planting crops, vegetables, or flowers. The machine's powerful tines can create a smooth and even seedbed that's ready for planting, cultivating & ploughing.

3. Tilling large areas
Gear-driven tillers are ideal for tilling more extensive gardens or farming fields due to their durability and power. These machines can cover a large area quickly and efficiently, saving time and effort compared to mini tillers.

4. Mixing soil and compost
Gear-driven tillers can mix soil and compost, creating a nutrient-rich growing medium perfect for planting vegetables, flowers, or crops.

5. Removing weeds
Gear-driven tillers can be used to remove weeds from garden beds, allowing for healthy plant growth and preventing weed growth from taking over the garden. That's why it's also called power weeder.

6. Creating raised beds
Gear-driven tillers can be used to create raised beds, which are ideal for gardening in areas with poor soil conditions or limited space. Working like a cultivator tractor is also a feature of it as a tiller.
Factory & Production Line Show
Universal Accessories

Parameters

Model	ML1350DE
Dimensions(mm)	1600×1050×1100
Tilling Width(mm)	800-1350
Tilling Depth(mm)	150-300
Shifting Gears	1, 0 ( -1 ), 2
Transmission Mode	#32Gear box
Engine Model	Diesel MLD186FA
Displacement(cc)	418
Max Output(Hp.kw/rpm)	10(6.3)/3600
Starting System	Recoil Start/Electric start
Transporting Wheels	4.00-8/400-10/500-10/500-12 wheels optional
Tilling Blades	4+1 group 40pcs
Packing Dimensions(mm)	1050×570×780
N.W/G.W(Kg)	122 / 132
Cont. Load (20 GP)	65
Cont. Load (40 HQ)	132
