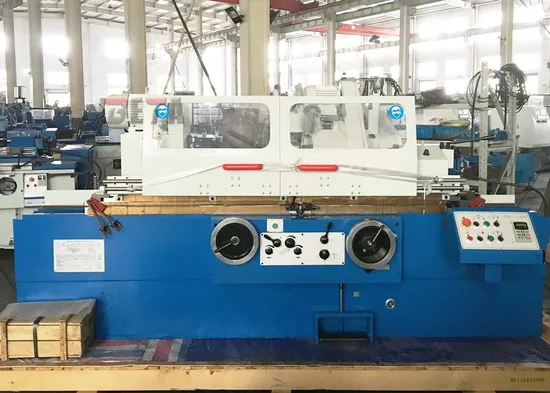

New M1432b Universal Cylindrical Grinding Machine
Basic Info.
Model NO.
M1432B
Type
External Grinding Machine
Processing Object
Metal
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
External Internal Universal Cylindrical Grinding M
Model
M1432b
Grinding Diameter
8-320mm
Grinding Type
Cylindrical Grinding Machine
Grinding Length
1000/1500/2000/3000mm
Delivery Time
2 Month
Warranty Time
12 Months
Voltage
380V
Max.Workpiece Weight
150 Kgs
Function
External and Internal Cylindrical Grinder
Ginding Type
Cylindrical Grinding Machine
CNC
Available
Key Word
Grinding Machine
Color
Blue and White
Payment
T/T
Transport Package
Wooden Case
Trademark
BETA
Origin
Shandong, China
HS Code
8460291100
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
300.00cm * 200.00cm * 200.00cm
Package Gross Weight
2500.000kg
Product Description
M1332 M1432 CNC External Internal Universal Cylindrical Grinding Machine Price| Model | UNIT | M1432B | |
| Distance between centers | mm | 1000, 1500, 2000, 3000 | |
| Center height | mm | 180 | |
| Dia.Ground (O.D) | mm | 8-320 | |
| Dia.Ground (I.D) | mm | 30-100 | |
| Max.length ground (O.D) | mm | 1000, 1500, 2000, 3000 | |
| Max.length ground (I.D) | mm | 125 | |
| Max.weight of work piece | kg | 150 | |
| Workhead Swiveling angle | / | +90° | |
| Workhead Center taper (MT) | MT | 4 | |
| Workhead Spindle speed | r/min | 50HZ:25-220 Stepless | |
| Wheelhead wheel spindle speed | r/min | 1670 | |
| Wheelhead rapid travel | mm | 50 | |
| Wheelhead Max.travel | mm | 246 | |
| Wheelhead Swiveling angel | / | ±30° | |
| Hand feed per.rev | mm | rough:2 fine:0.5 | |
| Hand feed per.gra | mm | rought:0.01 fine:0.0025 | |
| Wheel size (ODxWxID) | mm | 400x50x203 | |
| Periphearal velocity | m/s | 35 | |
| Internal grinding spindle speed | r/min | 10000/15000 | |
| Internal grinding wheel size | mm | max:50x25x13, min:17x20x6 | |
| Hand feed per.rev | mm | 6 | |
| Max.swiveling angle of table | Clockwise | / | 3°(1000, 1500), 2°(2000, 3000) |
| Anticlockwise | / | 7°(1000), 6°(1500), 5°(2000), 3°(3000) | |
| Longitudinal speed range of table | m/min | 0.1-4 | |
| Tailstock Center taper (MT) | MT | 4 | |
| Quil travel tailstock | mm | 30 | |
| Wheelhead motor power | kw | 5.5 | |
| Internal grinding | kw | 1.1 | |
| Workhead motor power | kw | 1.5 | |
| Packing dimension | cm | 322*200*205, 422*200*205, 540*200*205, 739*200*205 | |
| Gross weight | tons | 5.3(1000), 6.1(1500), 7.9(2000), 9.9(3000) | |
Standard accessories:
Coolant tank,
wheel periphery dresser base with diamond pen,
flange and wheel exactor,
standard grinding wheel,
balancing arbor,
leveling wedge,
working lamp,
open steady rest,
internal grinding attachment
