Torsel Dual Functions CNC Grinding Machine for Carbide Tipped Circular Saw Blades

Product Description

TF650 features and advantages
Used for grinding TCT( tungsten carbide tipped) circular saw blade tooth top and face. Multi-function model which is able to grind hook angle, top angle and bevel angle. This one has a upgraded model TFE800, able to grind saw blade up to 800mm.
Features:
1. Multifuctional --sharpening tooth face&top
2. CNC servo motor for precise positioning
3. Built-in program for ease of use.
4. User friendly interface panel with touch screen
5. tooth skipping, automatic compensation function available
6. special treated cast iron base and imported parts.
7. Ready for both water and oil coolant
Adavantages:
1. Easy operation: CNC with friendly interface panel, various tooth shapes available, all parameters can be set directly and stored automatically. Portable electrical handwheel for elaborate actions
2. High accuracy: <0.02mm or even better. Four axis servo motor to realize satisfactory sharpening performance
3. Good stability: use specially treated cast iron base, no deformation,low vibration,long term use.
4. High efficiency: 1~20mm/s adjustable grinding speed.
Machine parameters

Saw blade diameter	110~700mm (it has an upgraded model for 800mm)
Hook angle	-8°~ 27°
Top angle	8°~30°
Chamfer angle of top	45°~-45°
Chamfer angle of face	30°~-30°
Bore diameter	12-120mm
Wheel diameter	125mm*32mm
Wheel speed	4000~5000r/min
Grinding speed	1~20mm/s
Power	4KW
Dimensions	1800 X1200 X2030mm
Weight	1600kg

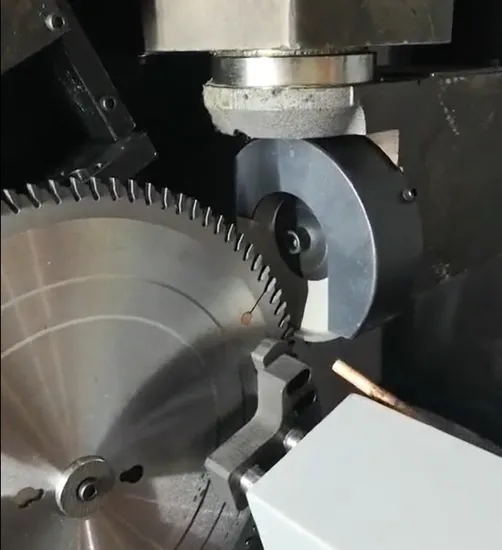

Machine pictures
Interface panel with touch screen
Portable electrial handwheel
Hebei Tuosi Mechanical Equipment Co.ltd is a professional saw blade manufacturer, specializing in producing circular&band saw blade tooth sharpening machine, circular sawing machine and other machine related to saw blade production. We have dozens of machines for you to choose from, including precision and economy models, to meet your different needs for quality and price. Just let us know your needs, tailored solution is available.
Exhibition show
FAQ
1. What products do we have?
Four categories saw blade grinding machine:
1. economic type: normal accuracy, normal saw blade diameters, lower price, suitable for tct saw blade.
2. accurate type: high accuracy, large diameter saw blade can be processed, suitable for tct saw blade.
3. grinding machine with robot: robot auto picking and putting saw blade, suitable for mass production of tct saw blade.
4. cold saw blade grinding machine: highest accuracy, suitable for cermet tipped saw blade.
Except saw blade grinding machine, we also supply Measuring Projector, Side Runout Inspection Machine, Radial Runout Inspection Machine, Automatic Belt Polishing Machine, CNC Router Bit Grinding Machine, Automatic Tooth Seat Grinding Machine,etc.
2. What are the advantages of our sawblade grinding machine?
1) long service life: using quality cast iron base treated by high temperature tempering and vibration aging. no deformation and low vibration.
2) easy operation: CNC with friendly interface panel, all parameters can be set directly and stored directly. A machine can store up to 100 sets of data.
3) high efficiency: adjustable grinding speed, robot auto load, one person can operate several machines at the same time.
4) high accuracy: use quality machine components to realize high accuracy.
5) competitive price: price is very competitive for such good quality.
