Small Cheaper Price Plastic Lid Tray Box Blister Vacuum Machine

Product Description

Product Description
I. Feature & parameter
- Adopting the latest international plastic molding tech & craft.
- High effect, environment friendly, easy to handle and other advantage.
- Combines machine, electricity and gas integration design, and PLC human-machine interface control.
- Full auto lid forming, hole punching, cutting, stacking with counting.
- This equipment is specialized in the production of coffee lid, coke lid, cup lid, bowl lid etc.
- Available material HIPS, PVC, PET and other plastic sheet molding production

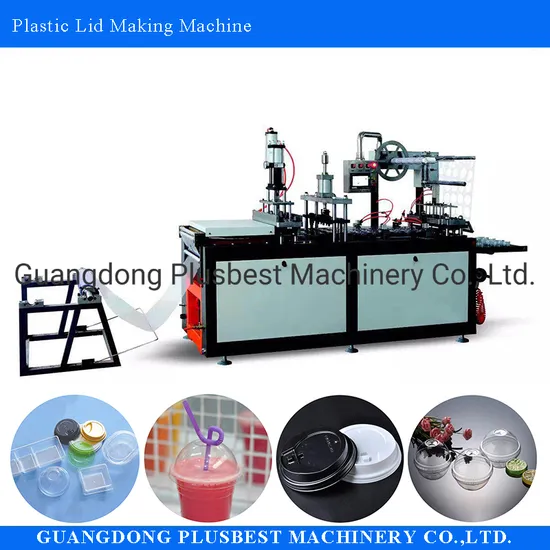

II. Machine photo
III. Technical Data

Mode No.	PB-500
Available material	HIPS-PVC-PET
Stroke Range(mm)	30-340
Max. Forming Area(mm)	480*320
Main Motor(kw)	3
Sheet Servo Motor(kw)	0.75
Heating Power(kw)	12kw
Max. Depth(mm)	50
Forming Speed(cycles/min)	10-32
Air Pressure(Mpa)	0.5-0.7
Air Consumption(m³/h)	≥ 0.22
Noise	75Db
Weight(kg)	1900
Dimension(mm)	2900*950*1700

IV.About Us PLUSBEST is a professional machinery enterprise, supplier, importer and exporter located in SHANTOU CITY OF China.As the professional machinery enterprise, we our team have already been working in this field for more than decade, focusing on PLASTIC PACKAGING MACHINERY, such as Plastic Sheet Extruder, Thermoforming Machine, Vacuum Forming Machine, Offset Printing Machine, Drinking Straw Machinery, Film Blowing Machine, Auxiliary, Mould etc. They are widely used in multi-industry of food, pharmacy, toys, chemical fertilizer, health care, electronic or hardware etc.We PLUSBEST MACHINERY have been enjoying a great reputation. So far our overseas business for more than 40 countries has been reached to Europe, South America, North America, Oceania, Africa, Middle East and Southeast Asia. High quality and service by heart make more and more partners working with us for bright future.With both skillful export experience and professional equipment knowledge, we all PLUSBEST people are always to provide better service and innovating technology support, as well as new products introduction for customers all over the world.Warmly welcome home and abroad friends to visit PLUSBEST.
