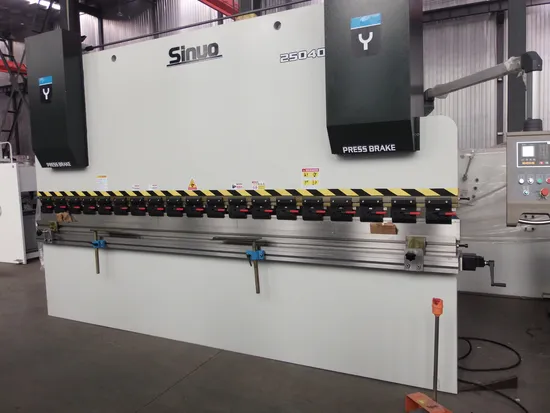

Bending Machine/Hybrid Electric CNC Press Brake/Synchronous Torque CNC Press Brake
Basic Info.
Model NO.
WC67K-300/6000
Warranty
3-year
Condition
New
Certification
RoHS, ISO 9001:2000, ISO 9001:2008, CE, Tp
Automation
Automatic
Suitable for
Plastic, Rubber, Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Beading Machine
Foundry
Can Contract
Pigment
Can Be Customized
Sell Abroad on Behalf of
We Can Talk
Transport Package
Seaworthy Packing
Specification
6000*2200*5200
Trademark
Sinuo
Origin
China
Production Capacity
2000set/Year
Product Description
| order numbe | Machine tool model | WXC67K-300T/6000 | comments on a form | |
| 1 | The nominal force | 3000KN | ||
| 2 | Bend length | 6000mm | ||
| 3 | Distance between columns | 5000mm | ||
| 4 | Throat mouth depth | 400mm | ||
| 5 | Maximum opening height between the workbench and the slider | 580mm | ||
| 6 | Maximum working pressure of the hydraulic system | 40Mpa | ||
| 7 | numerical control system | MD320/MD11/E21 | ||
| 8 | operating platform | Height (away from the ground) | 800mm | Compensation station <no fixed station> |
| width | 280mm | |||
| 9 | Sliding movement | route or distance of travel | 250mm | |
| carrying idler idler | 10mm/s | |||
| return trip | 60mm/s | |||
| work; | 8mm/s | |||
| 10 | Power of main motor | rate of work; | 18.5KW | |
| speed | 1440r/min | |||
| 11 | Plate thickness | wallboard | 70mm | |
| Working table plate | 90mm | |||
| slider | 80mm | |||
| 12 | outline dimension | Long * wide * high | 6200*2100*3400 | |
The main hydraulic cylinder and slider are the main moving parts of the bending machine. The main hydraulic cylinder structure is mainly composed of cylinder block and piston. The seals are mainly inlet rings with good sealing performance.
The machine tool has a front support frame to facilitate the material push. .Three-axis standard (Y1.Y2.X).
.Integral welding structure.
.Italy ESA or Netherlands DELEM NC system.
.Germany Rexroth or Holland servo manifolds.
.Germany HEIDENHAIN grating ruler.
.Servo motor and drive.
. Imported seals
.Standard upper and lower mold.
.Front material supporting frame.
Selectable:CYBEIEC CNC
