ISO 1000L-2000L Plastic IBC Water Tank Chemical Storage Blow Molding Machine

Product Description

Product Description

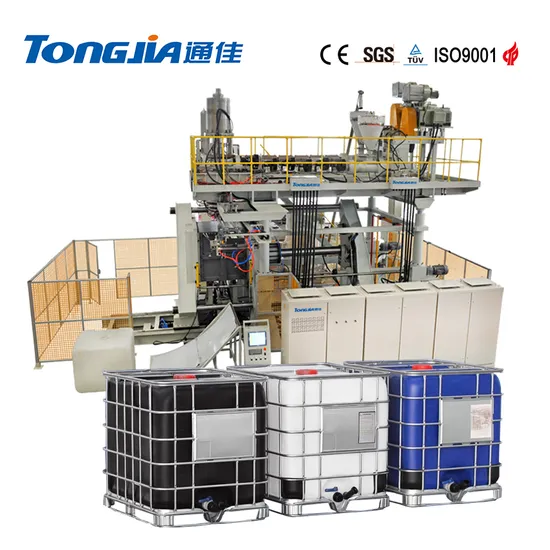

IBC Tank Plastic Blowing Molding Machine
Tongjia TJ-KB2000L/IBC hollow blow molding machine is mainly used to produce industrial IBC packaging barrels, blow molding trays,
civil water storage tanks, amusement facilities, etc. The original imported wall thickness control system ensures the uniformity of the
thickness of the container and meets the needs of users. Requirements for hollow products of specifications.

Configuration
Clamping system	Diagonal double tie bar center clamping bi-diredional synchronous high precision linear guideway clamping device
Accumulayor head	Single cylinder center-feeding accumulator die head
Extrusion system	DC speed control + Hardened face gear reducer
Hydraulic system	All imported hydraulic valve +hydraulic servo control system
Control system	Imported PLC + Europe imported complete machine control system (GEFRAN from Italy )

Parameters
Specifications	Units	TJ-KB2000L/IBC	TJ-KB3000L/SP
Max. product capacity	L	2000	3000
Machine dimension	m	11x6.5x6.5	11.5x6.6x8.9
Machine weight	Ton	60	70
Clamping Unit
Mold platen size	mm	1650x1600	2000x2500
Power
Total power consumption	KW	368	398
Avenrage power consumption	KW	220	238
Extruder unit
Screw diameter	mm	150	150
Plasticising capacity	kg/hr	400	400
Screw heating power	KW	70	70
Extruder driving power	KW	185	185
Die-head
Die head heating power	KW	50	80
Accurroujator capacity	L	40	80

About us
Shandong Tongjia Machinery Co., Ltd. specializes in producing high quality plastic machinery. We are one of the top manufacturers
of plastic machinery in China. As the Vice Chairman of China Plastic Processing Machine Industry Association and the member of China
Light Industry Machinery Association, all of our products have passed ISO9001,SGS Certificate and CE Certificate from TUV. Many of our
products have exported to America, Canada, Greece, Russia, Belarus, UAE, Iran, Singapore, Vietnam, Japan, Korea, Malaysia, Spain,
Argentina, Brazil, more than 80 countries in the world.
After Sales Service
1.12 Hours----Your reply will be replied within 12 hours.
2.Service----We offer your professional service in fluent English.
3.Delivery----1~3 months.
4.Free Design----Professional designers, free designs.
5.Certificates----Third-party verification service provider.
6.Service----OEM service offered; Design service offered; Buyer label offered.
Why choose us?
1.Our factory was founded in 1953 and we are market-leader in this line in China.
2.In the plastic machinery field, we have more than 30 years of relevant experience.
3.Our products extend all over the national and over 90 countries and areas of the world.
4. Our spare parts are international famous brand components.
5. Engineering team provide you with the most suitable model towards your products.
6.We will send our engineers to your factory installation the machine and train your worker after the machine
arrive your factory.
7.We will offer our best price and quality and hope have a good cooperation with you.
8.Our machines run stable, high output and our technology from German
FAQ
Q1:What's your warranty policy?
A1:The Seller will guarantee the machine for 18 months since the date of shipment(that is leaving from Seller's factory)
or the seller will guarantee the machine for 12 months since the date of starting installation and adjustment, whichever
comes first.
Q2:What's your minimum order quantity?
A2:Min order quantity:1 set or by negotiate with each other.
Q3:What package do you use for the product?
A3: Be Coated with anti-corrosion oil, and covered with plastic film, then packed in wooden box.
Q4:Do you have technical instruction if I buy your product?
A4:Please read the user manual carefully for your reference, we have detail instruction on it. If your problems still can
not be solved, welcome to contact us for help.
Q5:What is your overseas service?
A5:We will provide high quality overseas service ,our technical staff will be able to provide you with technical support,
for you personally to overseas assembly and test equipment.
Q6:Will you conduct training for our staff here?
A6:Yes, we will provide technology support to factory technology, training for the relative person.
Q7:What are your terms of payment?
A7:We accept T/T, L/C, D/P,Western Union, Paypal, Money Gram.
Q8:I am very satisfied after I read your FAQ, how can I start to purchase my order?
A8:Please click the bottom of this page or contact our sales on Trade Mange online!
