Corrugated Paper Cardboard Printing Machine 2/3/4 Color Corrugated Die Cutting Slotter Slotting Flexo Printer Machine for Carton Box

Product Description

Corrugated Paper Cardboard Printing Machine 2/3/4 Color Corrugated Die Cutting Slotter Slotting Flexo Printer Machine for Carton Box
Product Description

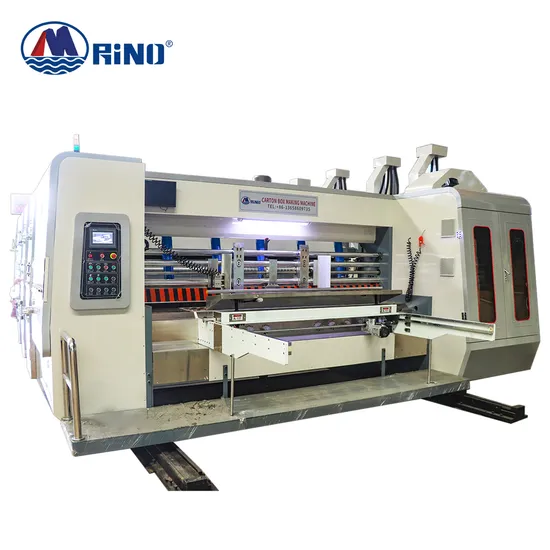

Product description of carton flexo printing machine

This machine can complete the multi-color printing, crimping, slotting, trimming and corner cutting of cardboard at one time. The equipment adopts the front edge adsorption paper feeding, the host computer and the fan frequency converter control the start and stop, and the touch screen adopts the PLC programming system of the industrial control parts, which realizes the human-machine interface to control the operation of all parts. The printing accuracy of this machine can be operated. The front of the main machine is equipped with paper output monitoring equipment, and the situation of the paper output department is observed at any time when starting and stopping to ensure the safety of the personnel who start the machine and adjust the machine. All parts are separated and combined electrically, pneumatic locking, pneumatic lifting, and automatic ink distribution system to ensure the normal operation of the whole machine, fine printing patterns and accurate color registration.
Product Parameters

Parameters of flexo printing machine

Model	HP-LM1400
Width	2800mm
Maximum speed(pcs/min)	230
Wallboard thickness(mm)	60
Gear thickness(mm)	60
Maximum paper size(mm)	1400 X 2600
Minimum paper size(mm)	350 X 650
Maximum printing size(mm)	1400 X 2400
Standard printing plate thickness(mm)	3.2---7.2
Cardboard thickness(mm)	3---12
Precision(mm)	Tinted accuracy ±0.5, Slotting accuracy±1.5, Die cutting accuracy ±1.5
Power (kw)	38
Total power(kw)	45

Product Details

Main units of carton flexo printing machine

Lead edge feeding unit
1. The paper feeding adopts the most advanced leading edge paper feeding technology, and the material of the paper feeding roller shaft is bearing steel.
2. The control panel is equipped with a 7-inch human-machine interface color touch screen, which can realize the operation of the paper feeding unit, the printing unit, the slotting unit, and the die-cutting unit.
Printing unit
1. Diameter of printing roller ¢480mm. Made of high-quality steel, the surface is finely ground, hard chrome plated, dynamic balance correction runs smoothly, and is suitable for high-speed printing. The roller is engraved with reference marks in the horizontal and circumferential directions, which is convenient for hanging and matching printing plate. The ratchet-wheeled fixed plate reel with plate hanging groove is suitable for quick plate change. The horizontal distance adjusted of the printing plate roller is 6mm electric adjustment, the effective adjustment range: 12mm, the printing plate can be corrected when running and stopping.
Die cutting unit
The gap between the die roller and the rubber roller is adjusted electrically, and the air-locked fixed adjustment mechanism is stable and reliable. The rubber roller has a 50mm horizontal travel device and a speed difference compensation system. Each knife is in a different position and wears evenly, which effectively prolongs the service life of the rubber pad.
Company Profile

Our company

Rino is a fast growing group company mainly committed to manufacturing and exporting high quality products with reasonable price to fulfill the needs of the most rigorous buyers. With the development of 20 years ,Rino Group already established flexo printing machine plant ,manual die cutting machine plant ,corrugated production line plant in Hebei province , carton packaging plant and trade department in Jinan Shandong province, Oversea branch in Chennai India.Our company has nearly 20 years of experience in carton packaging production and professional technical team which can provide reasonable packaging solutions, after-sales service, timely and comprehensive for each customer. Aiming at offering the most suitable solution and professional service, Persisting in client requirement oriented, offering high quality, reasonable price and cordial service which have formed a unique service mode.
We sincerely expecting for cooperation with all global clients on the basis of Mutual-Trust, Mutual-Understanding, and Mutual-Benefit.
FAQ1.Q:What is the machine warranty?
A:one year.
2.Q:Does your machine with CE certificate?
A:Yes, issued by Italian organization
3.Q:What is the production time while placing order?
A:About 20 days
4.Q:What is the delivery time?
A:15-30days after get the payment.
5.Q:Can your company handle shipping for customers?
A:Yes, just give us destination sea port or container yard
6.Q:Does the packing strong?
A:Yes, all packages are double-checking before delivery
7.Q:How about after-sales service process?
A: We offer life time A.S.S. Please feel free to contact after-sales department.
8.Q:Do you have machines in stock?
A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
9.Q:Do you inspect machines before packing?
A:Of course we do.we have QC department to debug the machine before packing
10.Q:What's the payment term?
A:T/T 30% in advance, the balance paid before delivery.
11. Q: Do you accept factory visiting?
A:We are highly greeting for your visiting.
