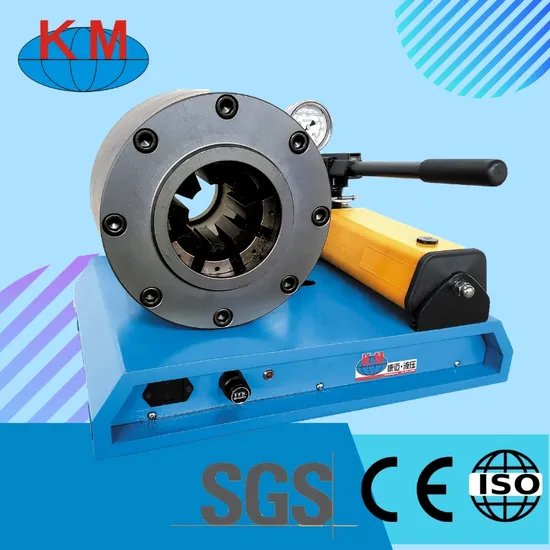

Hand Hydraulic Hose Crimping Machine (KM-92S-B)
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
KM-92S-B
Certification
CE, ISO
Condition
New
Customized
Customized
Automatic Grade
Automatic
Structure
Horizontal
Size
Max 1 1/4inch Hydraulic Hose
Name
Manual Hose Crimping Machine
Type
Button Type
Weight
70kg
Accessory
Hydraulic Hose Dies12 Sets
Color
Blue
Crimp Range
4mm-32mm
H.S.
846291900
Application
Crimp Hydraulic Hose, Fitting & Ferrule
Package Size
550*520*395mm
Transport Package
Wooden Case
Specification
CE
Trademark
KANGMAI
Origin
China Handan
HS Code
846291900
Production Capacity
2000/Set
Product Description
Hand hose crimping machine KM-92S-B techincal data:
| Crimp range | 4mm-32mm |
| For hydraulic hose | 1 1/4inch |
| Max opening without dies | 108mm |
| Opening | 28mm |
| Force | 1370KN |
| Cycle time | --- |
| Voltage & Power | BY HAND,NO MOTOR |
| Optional voltage | BY HAND,NO MOTOR |
| Pump | Manual pump |
| Dies sets | 12 |
| System pressure | 30Mpa |
| Machine size | 550*520*395MM |
| Weight without oil | 70kg |
| Shelf+quick change | NO |
| Electric limit switch | NO |
| Electric control with touch screen | NO |
KM-92Sdies information:
| Die bore | Hose I.D. |
| 12 | Φ4 I-II |
| 15 | φ6 I-II |
| 18 | Φ8I-II |
| 21 | φ10 I-II |
| 24 | φ13 I-II |
| 27 | φ16 I-II |
| 30 | φ19I-II |
| 33 | φ19III-IV |
| 36 | φ25 I-II |
| 39 | φ25 III-IV |
| 45 | φ32 I-II |
| 48 | φ32 III-IV |
Note: Die bore&Length can customized as your hydraulic fitting & ferrule size.
KM-92S-B manual hose crimping machine features:
1.Small volume,low weight and easy to be moved
2.When crimping to the pre-set size,indicator light will be on.
3.Suitable for outdoor,non-electricity manipulation.
4.Fast speed with compound die base.
5. Load-off handwheel make the die reture fast.
KM-92S-B detail shown:
KM-92S applition:
1. Suitable for OUT DOOR MAINTAINCE, ONLY 26.5KG, EASY TO CARRY.
2.Used rubber hose to transmit hydraulic pressure as there working power.
3. used in Building Construction, Petroleum Industry, Chemical Industry, Car and Motor Industry.
