Thermal resistance,Pt100,thermometer calibration low temperature -100 to 100 deg C liquid thermostatic bath

Product Details

Product Description

Product Description
Products Description

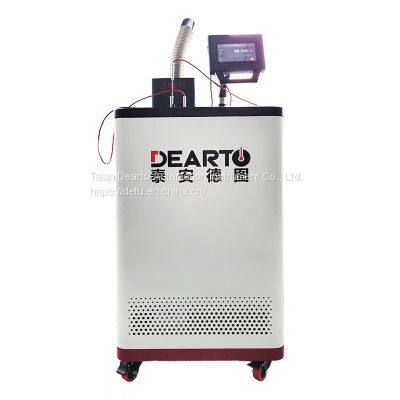

DTS-CT intelligent precision thermostatic bath is a new type of intelligent thermostat introduced by our company. It adopts touch screen control and operation, completely intelligent man-machine interface, and the control is more convenient, simple and practical. A dual-cavity side stirring technology is used in the structure to make the constant temperature bath reach the ideal uniform temperature field through intelligent PID adjustment, which can meet the verification / calibration work of various temperature sensors such as low temperature thermocouples, industrial thermal resistors, pressure thermometers, bimetallic thermometers, glass liquid thermometers, etc.
Functional characteristics
1. Intelligent Manipulation
Large touch screen control, intelligent man-machine interface, multi-function display window, control more intuitive, simple and fast;
2. Slope heating
The temperature control rate is adjustable, the heating rate is set according to the actual verification or calibration, and the temperature rise is uniform, which meets the verification / calibration of various temperature switches.
3. Volatility tips
Wave motion of 10 or 1 min can be displayed, the fluctuation can be calculated automatically, and the temperature is judged intuitively.
4. Intelligent rehydration
The automatic rehydration function can be set up, and the oil transportation system can complete the rehydration function after starting, so as to avoid the safety and unstable factors caused by the reduction of liquid level.
5. Intelligent mixing
At room temperature, without starting temperature control, the control system automatically closes the stirring motor, prolongs the service life of the equipment and reduces noise.
6. Double sensor overheating protection
Built-in hardware and software dual protection, using dual sensors to monitor the operation process.
Hardware overheating protection, completely separated from the main control system independent operation, overtemperature automatic power cut off, more safe and reliable.
7. Precision temperature control
Adopt imported AA level temperature control sensor and variable parameter temperature control algorithm to ensure the maximum rate"zero" overshoot stability at different temperature points.
8. Excellent stability and uniformity of temperature field
Special structure, blocking stage heat insulation treatment, intelligent adjustment of stirring speed, advanced adaptive control algorithm, so that the constant temperature bath has excellent temperature field stability and temperature field uniformity;
9. Multipoint calibration
Adopt multi-point calibration algorithm to realize built-in standard and precision temperature measurement.
10. Communication function
Support USB 、WIFI、WLAN、 serial communication function;
11. Curves show free scaling
Real-time curve display, support multi-touch, free scaling function;
12. Ergonomic design
The intelligent temperature control instrument adopts three-axis mechanical cantilever installation, the angle length is adjusted at will, does not occupy the slot table space, is convenient to operate;
13. Composite thermal insulation design
A variety of insulation materials, composite insulation design, limiting internal heat spillover.
14. Oil pollution prevention design
The countertop is designed with an integrated operating table, and the built-in overflow loop prevents the liquid medium from flowing to the bath table, and the removable stirring motor cover is convenient to clean up the oil pollution quickly.
Product Paramenters

Product name	Intelligent refrigeration thermostatic bath
Model	DTS-CT01G	DTS-CT10G	DTS-CT30G	DTS-CT40G	DTS-CT80G	DTS-CT100G
Temperature range	0~100℃	-10~100℃	-30~100℃	-40~100℃	-80~95℃	-100~95℃
Control method	Touch screen
Display	7 inch screen display
Resolution	0.001℃
Working medium	Antifreeze				Anhydrous ethanol
Uniformity of horizontal temperature field	≤0.01℃				0.010℃
Uniformity of vertical temperature field	≤0.01℃				0.010℃
Temperature fluctuation	≤0.01℃/10 min				±0.010℃/10 min
Work area dimensions	φ130×480 mm
Volume	18.5 L
Max power:(KW)	2		2.8		3.5
Dimensions :(mm)	660(L)×540(W)×1120(H)				700(L)*590(W)*1120(H)
Weight:(Kg)	120				155

Patent certificate
