High-End Turning CNC Lathe Machines Mini CNC Lathe with Five Tool CNC Lathe for Metal and Different Materials

High-End Turning CNC Lathe Machines Mini CNC Lathe with Five Tool CNC Lathe for Metal and Different Materials

US$12,417.00-16,183.00 1 Piece (MOQ)

Basic Info.

Model NO.
W20
Processing Accessory
Centre CNC Lathe
Guide Rail
THK,PMI
Tool Holder
Five-Knife
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE
Condition
New
System
Syntec
Axis Number
Each Knife Have Two Axis
Other Optional Functions
Depending on Customers Needs
Transport Package
Wood Box
Specification
1550*1060*1650mm
Trademark
HANBS
Origin
Chian
Production Capacity
60sets/Month

Packaging & Delivery

Package Size
1650.00cm * 1150.00cm * 1800.00cm
Package Gross Weight
1800.000kg

Product Description

W20- High-End Turning CNC Lathe Machines Mini CNC Lathe with Five Tool CNC Lathe for Metal
Product Description
Product Description
1.Three feeding axes adopt import linear guide rail.
2.Three feeding axes travel in high speed,reduce the idle movement time andincrease the work efficiency.
3.More tools than usual gang type lathe and quicker tool change time.
4.Ideally apply to machine various super slender component.
5.Favorable price,superior performance.

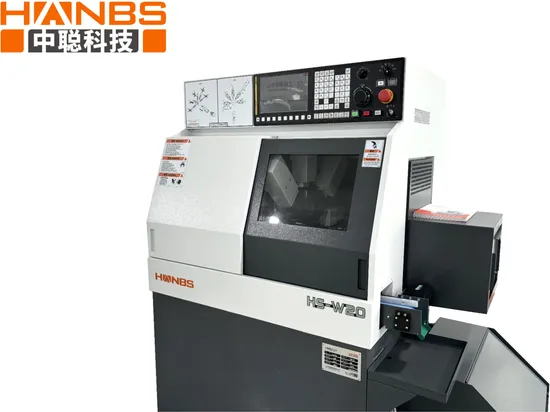

Product Photoes
Product Information
control system
HANBS self-innovate (yn 1.0 versions)
Servo axis number
Standard 12 axis
Programming method
5-channels G code programming, each axis can be programmed separately
The number of knives
Group 5
Maximum machining diameter
Φ15mm Φ20mm
Maximum machining length(50mm in guide mode)
The walking knife mode is 50mm
Maximum axial bore diameter
(When the back shaft is 12mm and the handle is 10mm)
Φ6mm
Drilling arm handle diameter
∅5(Three)∅6(Two)
Attack capability (spindle reversal mode)
M6 Copper
Dental tapping ability (doraxial delivery)
M5 Copper
Car thread function
Yes
Multi-knife synchronous processing function
Yes
Radial max bore diameter
Φ7mm
Radial max bore tapping size
M5
Maximum clamping diameter of the back side spindle
∅12mm
Maximum bore diameter of the back-side spindle
∅6mm
Maximum tapping diameter of the back-side spindle
M6
Spindle power
2KW(With the function of score)
Backside platform axle power
1.0KW
Maximum spindle speed(For short use only)6000rpm
6000rpm
Back maximum speed (for short use only)
6000rpm
Maximum removal length of piece
50mm
Side power tool unit (optional)
2
End face power tool unit (optional)
1
Row knife ( 8 * 120 * 3))
3
Standard maximum number of tool installed
(5 knives + 5 drill / boring)
10
High maximum number of tool installed
(5 + 5 drilling / boring + 1 back strong drill)
11
Knife size
8*8
Z1.2.3.4.5 axial stroke
50mm
X1.2.3.4.5 axial stroke
30mm
Backshaft itinerary
150mm
X1.2.3.4.5 axial power
400W
Z1.2.3.4.5 axial power
400W
Z1, Z2, Z3, Z4, Z5, and Z2 axis fast-forward speed
30m/min
X1, X2, X3, X4, X5 axis fast forward speed
30m/min
Center height of spindle
1010mm
High version input power
7.6KW
weight
1800Kg
Fuel tank storage
50L
size
1550*1060*1650mm

Factory
Customer photoes
Packing & shipping
Examples of processed products
Certifications
Q&A Q1.Are you manufacturer or trading company?
A. We are professional machine tool manufacturer, we set export sales center & showroom in Dongguan city.Welcome to visit.
Q2. How can I place order and get more details about the machine ?
A: You can contact us by email or on line and tell me which details you want to know I will send you the processing vedio and photos.
Q3. About the price can you give the favourable or best price?
A. We have different series machine,and we will recomand you the suitable machine according to your products.Our aims is to become long-term cooperation and friends so we will give you the favourable price for you.
Q4.Can you provide some certificate?
A. According to different country,we can provide different certificate which you need.
Q5.What kind of products your machine can processing?
A.Maxi processing diameter is 46 mm.Mini processing daimeter is 3mm.And you can send me the drawings about your products our engineer will do the assessment.
Q6.How will the machine be transported?
A.We transport machine by sea and the port is Shenzhen.
Q7.What is the features about the machine?
A.High precision and rigidity,improve customers' production and help customer to solve the problems.
Q8.How will the machines be packed?
A.We will fix the machine axial and pack it in wooden cases,make sure that the machine not be damaged.
