Hr17 Series 160A, 250A, 400A, 630A 3p Fuse Switch Disconnector

Hr17 Series 160A, 250A, 400A, 630A 3p Fuse Switch Disconnector

US$10.80-69.00 1 Piece (MOQ)

Basic Info.

Model NO.
HR17
Installation
Indoor High-voltage
Operation
Manual
Grounding Mode
Not Grounding
Movement Mode
Vertical Rotary Type
Number of Poles
Three Pole
Grounding
Un Grounded
Series
Single-Stage
Run
Vertical Rotation
Switching Mode
Single Throw-in
Common Model
Hr17b
Structure of Operating
Manual
Certification
CE, ISO9001, CCC
Brand
Dhecn
Rated Isolating Voltage Ui
690V
Rated Working Voltage Ue
400V
Rated Working Current Le
160A-630A
Pole
3p
Transport Package
Carton
Trademark
DHECN
Origin
China
HS Code
8536500000
Production Capacity
10000PCS/Month

Product Description

ApplicationHR17B series fuse-switch disconnector,is applied to circuit of rated current 40A to 630A.It has 2P,3P and 4P.And it can operate with load.It has 2P,3P,4P.And It canbe installed by hunging on the busbar, can also be installed on the fixed board.And it provides the upper and lower terminals for input and output,with a knife edge introduction and arc extinguishing device.And shell cover has the sealed detect hole which install signal switch,detect switch inside. And it can be used as knife switch by equiping fuse monitor.This product conforms to standard of IEC60947-3,GB14048.3.
Normal operational conditions and installation conditions3.1 Temperater: no higher than +40ºC,and no lower than -5ºC,and the day average temperature no higher than +35ºC.3.2 Altitude: no higher than 2000m3.3 The relative humidity: no more than 50%,when temperature is +40ºC.The product can withstand higher humidity under lower temperature,for instance,when it at +20ºC,the production can withstand 90% relative humidity.The condensation that happened because of temperature changes should be taken care.And Installation location should have no exploresion danger, and no gas and conductive dust which can cause corrosion and insulation damage.3.4 Class of pollution: 3 Calss3.6 Installation type:III, IV.For more details and information, please contact us.
Main technical parameter
Model No. HR17B-40 HR17B-63 HR17B-160 HR17B-250 HR17B-400 HR17B-630
Rated insulation voltage Ui 690V 690V 690V 690V 690V 690V
Rated operate voltage Ue 400V 400V 400V 400V 400V 400V
Rated operate current Ie 40A 63A 160A 250A 400A 630A
Rated short-circuit making capacity 400A 630A 1600A 2500A 4000A 6300A
Rated ultimate short-circuit current Inc 50kA 50kA 50kA 50kA 50kA 50kA
Use type AC-23B AC-23B AC-23B AC-23B AC-23B AC-23B
Fuse(match) RT14-40
(14 x 51)
RT14-63
(22 x 58)
NT00-160 NT1-250 NT2-400 NT3-630

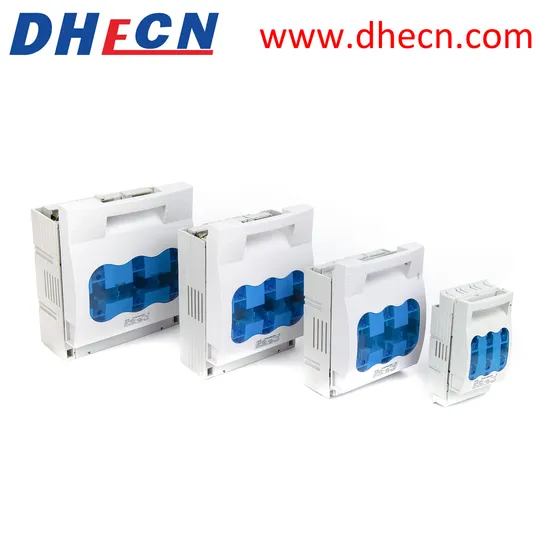

Actual images of the product are as followings:
Actual image of the parts:
