HD-1200 Pharmaceutical Multi-Direction Mixer
| US$1.00-25,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
HD-1200
Application Area
Pharmaceutical, Pharmaceutical
Certification
CE, ISO, GOST, SONCAP, CCC, API
Condition
New
Stirring Type
Gravity
Working
Diffusion Mixer
Drum Volume (L)
1200
Max. Loading Volume (L)
950
Max. Loading Weight (Kg)
950
Speed (R/Min)
0-10
Motor Power(Kw)
11
Mixer Type
Powder Mixer
Layout Type
Horizontal
Mixing Drum Shape
Drum
Operating type
Cycle Operating
Warranty
1 year
Transport Package
Seaworthy
Specification
GMP
Trademark
SPM
Origin
Shanghai
HS Code
8474390000
Production Capacity
950L/Load
Product Description

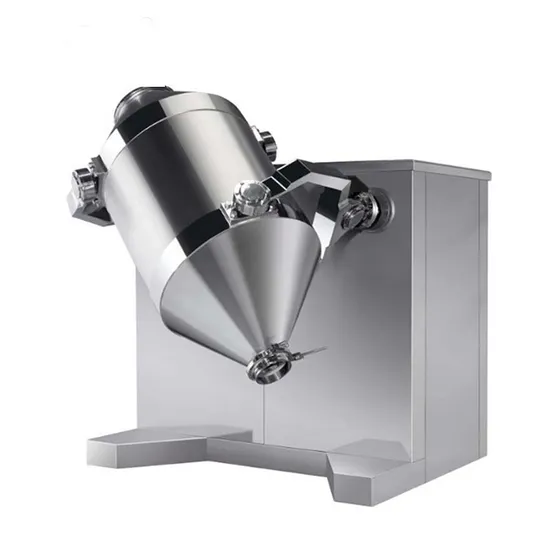

HD-1200 Pharmaceutical Multi-Direction Mixer
Type SWH-1200
Mixing Volume(L):1200
Max. Loading Volume(L):950
Max. Loading Weight (G):950
Speed(R/Min):0-10
Motor power(KW):11
Size(MM):2400×2800×2550
Weight(KG):2800
Application:
This new designed mixer is widely applied in pharmaceuticals foodstuffs, chemical, industrials and light industries to mix dry powder and granulator.
Principle:
This mixer provides high quality mixing by meanings of the multi direction movements of its barrel which fast the fluidity and diffuse of the materials avoid specific gravity accumulation, due to eccentricity.
Structure:
It is mainly composed of machine set drive, system, electrical control system, multidirectional, motions mechanism mixing tank, it is more efficient than ordinary mixers with a unique barrel body, made of stainless steel, inside and outside polished, with no death-corner.
Features:
1. Even mixing, higher barrel volume utilization than that the 40% of other mixers.
2. Special designed barrel with fine inside and outside polishing materials down load by self weight no sharp corner, no materials remained, easy to wash mixing within barred no environment pollution.
3. It doesn't produce for pollution of the environment, when mix the material into special.
Technical parameter:
| Type | SWH25 | SWH-100 | SWH-200 | SWH-400 | SWH-600 | SWH-800 | SWH-1000 | SWH-1200 | SWH-1500 |
| Mixing Volume(L) | 25 | 100 | 200 | 400 | 600 | 800 | 1000 | 1200 | 1500 |
| Max. Loading Volume (L) | 17 | 75 | 160 | 320 | 480 | 640 | 800 | 950 | 1200 |
| Max. Loading Weight(g) | 17 | 75 | 160 | 320 | 480 | 640 | 800 | 950 | 1200 |
| Speed (r/min) | 0-15 | 0-15 | 0-15 | 0-12 | 0-11 | 0-10 | 0-10 | 0-10 | 0-10 |
| Motor power(KW) | 0.55 | 1.5 | 2.2 | 4 | 5.5 | 7.5 | 7.5 | 11 | 15 |
| Size (mm) | 900*900 *75 | 1200*1600 *1500 | 1400*1800 *1600 | 1700*2100 *1850 | 2100*2400 *2250 | 2200*2500 *2300 | 2280*2600 *2500 | 2400*2800 *2550 | 2500*3100 *2600 |
| Weight(kg) | 150 | 500 | 800 | 1200 | 1500 | 2000 | 2500 | 2800 | 3000 |
