Single Phase High Voltage 35kv Floor Mounted No Fuse Capacitor

Product Description

Company Profile Henan Energy Electric Equipment Co., Ltd. was established in 2011 and is an excellent and reliable power equipment manufacturer in China. The company mainly develops and produces oil-immersed transformers, dry-type transformers, box-type substations, high-voltage switches, and medium and low voltage complete sets of equipment. The equipment put into production and operation of the project advocates energy saving, intelligence, informatization, and mechanization. The company has established the Henan Triangle Energy-saving Transformer Engineering Technology Research Center, with 71 utility model patents and 15 invention patents. With years of accumulation in the transformer industry and strong technological innovation capabilities, HZEC products are sold to the Middle East, North America, South America, Europe, Southeast Asia, Africa, and other regions, covering more than 40 countries.

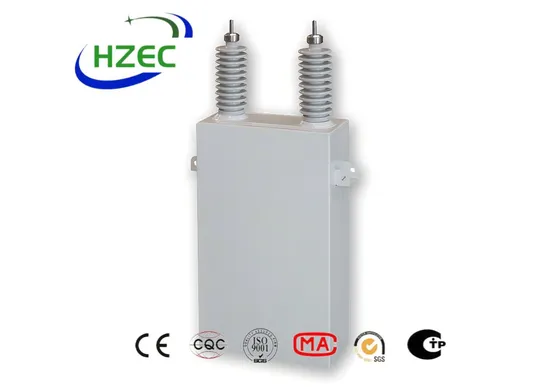

Product Description 35KV direct-floor capacitors can insulate a single capacitor to 95/200kV, and in the 35kV small-capacity compensation device can be removed from supporting insulation bushings to achieve fully insulated floor installation, which has the advantages of simple installation, space saving, cost reduction and strong seismic ability.
The capacitor is composed of core, shell, outgoing porcelain sleeve, etc. The box wall is welded on both sides for installation, and one side is equipped with a ground bolt. The core of a capacitor is composed of a number of components and insulating parts, in order to adapt to various voltages, the core is composed of a number of small components in parallel and then connected in series.
The capacitor is equipped with discharge resistance inside, and the shell is formed and welded by stainless steel plate.
Standards:GB/T 11024; DL/T 840; IEC 60871 Product Parameters

Item	Unit	Parameter
Rated voltage	kV	35/√3 (negotiable)
Rated frequency	Hz	50, 60
Rated capacity	kvar	50, 100, 150, 200, 250, 300, 400, 500 (negotiable)
Loss Angle tangent value(tanδ)		≤0.0003
Phase		Single
Insulation level	kV	95/200
Discharge resistance		The capacitor is equipped with discharge resistance, and after disconnecting from the grid, the voltage on the terminal can be reduced to less than 50V within 10 minutes
Capacitance deviation		-3%~+5%
Protection method		No fuse

Properties 1. Bushing: cold-pressed, anti-pollution type bushings, creepage distance is not less than 31mm/kV.
2. Liquid medium: 100% benzyl toluene (M/DBT) is used, which has excellent low temperature performance and partial discharge performance.
3. The main insulation adopts composite insulation structure, which ensures excellent electrical performance and has certain mechanical strength, ensuring that the ground insulation of the capacitor complete set is 100% reliable without protection.
4. Good sealing performance: annual leakage rate is less than 0.1%, through automatic argon arc welding, vacuum leakage test, hot aging and other measures to ensure the sealing performance of the capacitor.
5. Partial discharge level: the extinguishing voltage is not less than 1.5Un, and each capacitor is tested for partial discharge during factory test.
Service Environment 1. Indoor and outdoor installation
2. The elevation of the installation site is generally not more than 2000 meters
3. Temperature category: -40/B, pollution level: 1V
4. There is no gas or steam that is seriously corrosive to metal
5. No strong mechanical vibration
6. No explosive, inflammable and dangerous goods. Order Instruction 1. Rated voltage; 2. Rated capacity; 3. Rated frequency; 4. Standards,
5. Service conditions (altitude, temperature, indoor or outdoor, humidity, etc.), 6. Other special requirements.
