Product Description

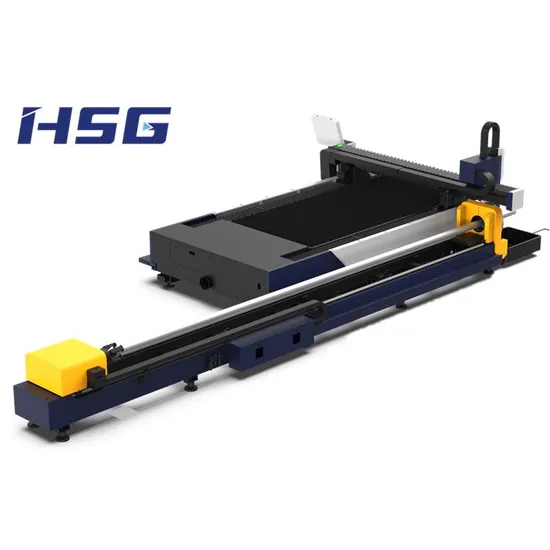

Hsg Laser Plates and Pipes Fiber Laser Cutting Machine 1500W 2000W 3000W CNC Stainless Steel/Carbon Steel Aluminium Sheet Metal Fiber Laser Cutting Tube Machine
Application Materials(HSG Metal Tube And Plate Fiber Laser Cutting Machine With Rotary Device)
Fiber Laser Cutting Equipment One machine dual-use, small floor area, fast production
- Fully automatic pneumatic chuck1.Cut Both Sheet and Tube Metals
2. Load from Front, Left and Right Side
3.Autofocus Cutting Head
4.Carbon Steel Welded Machine Bed
* Machine appearance, technical parameters, function description, data comparison shown in this page are from HSG in-house laboratory. All testing results and experimental data shall be subject to real machine. Detailed Photos
Integrated Electric Cabinet The cabinet is integrated with machine body with no needless cable connection. Its high-standard sealing can prevent electric elements from dust and wipe out any possible ignition.
Open Structure Machine running is intuitively visible and materials can be loaded from front, left and right side easily.
Simply-designed Structure As a sheet & tube 2-in-1 machine, GB can help users to save costs of purchase by 40%. It has single platform and simple design, with 50% less occupied area and high workshop utilization.
Optional Features:
Safety light curtain: halt the machine instantly while detecting any intruder to protect machine and workers
Fiber laser cutting machine with rotary axis
About fiber laser cutting machine rotary axis, please tell us your pipe/tube material diameter and length, then we can recommend the suitable rotary axis size to you.
Compact Size GB has single platform and its size is only 8400*3150mm (G3015B).The machine is open-structured and its work process is visible. Materials are loaded from front, left or right side.
Alpha A CNC System Easy to operate even by green hands
Match with 2000+ process data on its graphical programming interface
Compatible with multiple files, incl. DXF, DWG, PLT and NC code
Micro-connection cutting
Active obstacle avoidance
Real-time monitoring of core components
Active reminder of machine maintenance
HSG-NEST Nesting Software
HSG-NEST works as a standalone and network-free software. Nesting will start instantly after inputting parts graphics, message and sheet size. Relevant machining reports are also available to be output.
* HSG-NEST is a standard configuration for 4000W+ models and optional for machines below 4000W.
Carbon Steel Welded Machine Bed
Due to 500Mpa tensile strength and welding stress elimination by low annealing and vibration aging, the machine bed will keep high precision and stability for over 20 years. Covered with military-level anti-burning manganese steel plate, it can also help to prevent thermal deformation.
High-precision Autofocus Laser Cutting Head Based on Japanese technology, the cutting head can adjust its focus according to laser beam mode to make sure of mirror-like surface. It is easy to cut thin and thick sheets stably, and repair or maintain at low costs. * Autofocus accuracy ±0.01mm * Automatic cooling and obstacle avoidance * Anti-pollution design * Give early warning if abnormal Tailor-made Lasers
HSG has reached cooperation with Raycus to launch tailor-made 6600W lasers. Its power is enhanced from 6000W to 6600W at unchanged price.
Double Pneumatic Chucks
The chucks are featured by wireless control, one-key clamping and auto centering. The clamping force keeps constant to clamp heavy tube tightly. Concave supports are also adopted to prop up tube.
Φ20-210mm
20*20-150*150mm
Rectangular diagonal≤210mm
1.5kw 2kw 3kw 4kw 6kw 8kw 12kw Mild Stainless Steel Aluminum Copper CNC Sheet Metal or Tube Pipe Automatic Fiber Laser laser Cutting Machine
Quality Inspection Process(HSG Laser Co.,ltd)
Product Parameters

Model	G3015B III	G4020B III	G6020B III
Power	1500-6000W	1500-6000W	3000-6000W
Working Area (L*W)	3000mm*1500mm	4000mm*2000mm	6000mm*2000mm
X/Y-axis Positioning Accuracy	±0.03mm/m	±0.03mm/m	±0.03mm/m
X/Y-axis Repositioning Accuracy	±0.03mm	±0.03mm	±0.03mm
Max. No-load Speed	60m/min	60m/min	60m/min
Max. Acceleration	0.5G	0.5G	0.5G
Cutting Capacity of Round Tube	Φ20-Φ210mm	Φ20-Φ210mm	Φ20-Φ210mm
Cutting Capacity of Square tube	20*20-150*150mm	20*20-150*150mm	20*20-150*150mm
Max. Loading Weight of Sheet	800kg	1400kg	1900kg
Max. Loading Weight of Tube	100kg	100kg	100kg
Overall Dimensions (L*W*H)	8400*3150*1650mm	8400*3880*1650mm	8400*3880*1650mm

Certifications
Packaging & Shipping
Company Profile
HSG LASER CO.,LTD
HSG Laser, founded in 2006 as a hi-tech enterprise focusing on R&D, production and sales of laser equipment, is dedicated to serve global customers with intelligent metal forming solutions.

4000mm*2000mm Desktop Hot Sale Iron/ Stainless Steel/ Aluminum/ Copper CNC Fiber Laser Cutting Machine Price for Sheet
After Sales Service

FAQ
Fortune Laser Metal Plate Sheet and Pipe/Tube Laser Cutter CNC Fiber Laser Cutting Machine with Rotary Axis
1-I knew nothing about this machine, what kind of machine i should choose?
-Very easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you perfect solutions and suggestions.
2-What can it cut? How thick can it cut at most?
-Laser machine for metal usually deal with carbon steel, stainless steel, aluminum, brass and alloy. The maximum thickness is different between different models and materials. Please check in the product introduction page.
3-How long is the warranty?
-We offer 1-year warranty.
4-Where is your headquarters?
-Our headquarters is in foshan, Guangdong Province, China.
5-Can I visit your factory?
-Of course.Please contact us any time . We will arrange in advance.
6-Do you have engineer to teach me/my workers?
-Yes, we offer free training for each customer. We promise to help until everything gets right.
