CNC Column Granite Marble Profile Cutting Diamond Wire Saw Machine Stone Cutting Machine

CNC Column Granite Marble Profile Cutting Diamond Wire Saw Machine Stone Cutting Machine

US$32,000.00-38,000.00 1 Set (MOQ)

Basic Info.

Model NO.
CNC-2000/2500/3000
Application
Machinery & Hardware, Art & Craft, Chemical, Construction, Mineral Industry, Stone Industry, Stone Machinery
Source Voltage
380V
Automation
Automatic
Cutting Ability
High Speed
Control
CNC
Certification
API, CCC, SONCAP, GOST, ISO, CE, SGS
Name
Stone Cutting Machine (Diamond Wire Saw Machine)
Function
Cutting Marble, Granite, Slate, Nature Stone, etc
Max Processing Size
3000*2000*1500mm
Main Motor
7.5kw
Gross Motor
11kw
Outline Dimension
6500*6300*3800mm
Gross Weight
5000kg
Water Consumption
4m3/H
Control Type
CNC
Certificates
Ce, SGS, ISO9001
Transport Package
Load in a 20 Feet Container
Specification
6500*6300*3800mm
Trademark
Xianda
Origin
Jinjiang, Fujian, China
HS Code
84641090
Production Capacity
1000 Sets/Year

Product Description


CNC Column Granite Marble Profile Cutting Diamond Wire Saw Machine Stone Cutting Machine
Application
CNC-2000/2500/3000 Mono wire cutting machine ( rope saw ) function: Cutting column slabs, semi circular slabs, English letters, and other diversified compllicated special shape. Materials the wire saw machine can cut include marble, granite, natural stone etc.
Wire saw machine (Rope saw), mono wire cutting machine, cutting column / cylinder slabs.

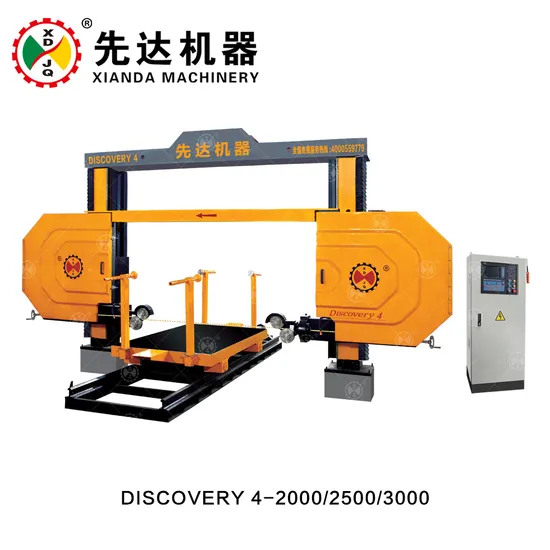

Marble Granite CNC Diamond Wire Saw Stone Cutting Machine CNC-2000/2500/3000 adopts CNC systerm, Four-Axis linkage, which can process the circular stone slab, roman column, numeral, letter, Chinese characters and other designed shapes.
1. It has heavy load bearing structure, four orbits on each upright column, adjusted the balance by the rollers, with less friction and higher precision.
2. The left and right frame achieve synchronized lifting by steering equipment on the upper frame. The lifting accuracy increased by the conbine of lead screw and double nuts.
3. Cantilever part, firstly the lead screw and pole adjust the distance of guide wheel, guide wheel is controlled by CNC. Secondly in order to make the diamond wire rope cutting direction coincidence, reducer control the guide wheel rotating angle.
4. Worktable is running by lead screw and railway.
5. There has automatic alarm if wire broken.
6. Aluminum wheel diameter is 1600mm. One fly wheel slide through sheave, oil pump control rope tension.
Keywords: Stone machine, stone cutting machine, marble cutter, wire cutting machine, mono wire cutting machine
Technical Parameter
Parameter Unit CNC-2000 CNC-2500 CNC-3000
Max processing size (L*W*H) mm 3000*2000*1500 3000*2500*1500 3000*3000*1500
Dimension of worktable mm 2500*1300 2500*1300 2500*1300
Main motor Kw 7.5 7.5 7.5
Gross motor Kw 11 11 11
Outline dimension(L*W*H) mm 6500*6300*3800 7000*6300*3800 7500*6300*3800
Gross weight Kg 5000 5500 6000
Water consumption M3/h 4 4 4

Xianda machinery
Fujian Xianda Machinery Co. Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine, wire saw stone cutting machine, block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company, we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.
Exhibition
Related Products
Our after-sale service Team
We are a vigorous and creative team with great passion, we are always trying to provide better service for you, if you meet any problems about stone cutting machine, please contact us at any time suits you. Other stone cutting machines we produce: Diamond wire saw machine, bridge cutting machine, bridge saw and a series of stone machine for special shape processing.
For more information, you may refer our home page: HTTP: //chinaxianda. En. Made-in-China. com/
FAQ
1. Manufacturer Profiles
We are the Top 10 stone cutting machine manufacturer with ISO & CE certificate since 1985.
We own 70% China market share at special shape stone cutting machine series.
We are a company which is specially for producing stone machines for exporting.
2. Quality Control
We have our own experienced QC.
Our machine will be strictly inspected.
We will provide a Testing Video for each machines before shipping out if required by customer.
3. Delivery time
Based on order quantity, normally three weeks against payment.
4. Warranty
All the machines have one year warranty.
5. After Services
Our marketing team will response for your question within 24 hours.
Technical support will be available in any time.
Free replacement will provide once the failure confirmed caused by our product quality.
6. Contact

Web: HTTP: //chinaxianda. En. Made-in-China. com/
Add: Anqi Road, Wuli Industrial Park, Jinjiang City, Fujian, China.
