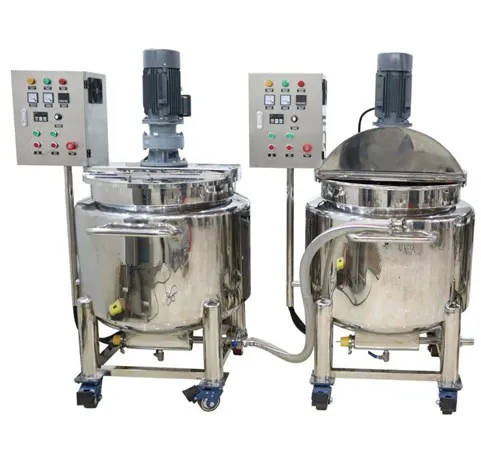

New Design Stainless Steel Ice Cream Aging Maturation Tank
| US$2,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
KQ
Application
Liquid with Suspended Solids, Viscous Fluid, Liquid
Application Area
Agricultural Chemicals
Certification
CE, ISO
Condition
New
Main Material
Stainless Steel
Mixing Drum Shape
Double Cone
Stirring Type
Diving
Warranty
One Year
Working
Heating and Mixing Tank
Name
New Design Stainless Steel Ice Cream Aging Maturat
Heating Pasteurizing
for 300L to 10000L
Electric Heating and Mixing
Tank for Preparing Chocolate
Jacket Heating Tank
Heating and Mixing Tank
Electric Heating Bars
Customized
Heating Tank Application
Juice, Milk, Beverage
Motor
ABB, Siemens /China Brand
Tank Agitator
36rpm, 48rpm, 96rpm, 2900rpm
Working Life
More Than 10years
Spare Parts
Supply
Cooling
Ice Water
Cleaning
CIP Spray Ball
Manual Book
Yes
Control Box
Yes
MOQ
1set
Mixer Type
Double Screw Cone Mixer
Layout Type
Verticle
Operating type
Continuous Operating
Transport Package
Standard Export Wooden Box
Specification
ISO
Trademark
KQ
Origin
Shanghai China
HS Code
8479820090
Production Capacity
1000set/Year
Product Description
New Design Stainless Steel Ice Cream Aging Maturation Tankthe broadest range of tank heating solutions in the electric heatingindustry.
Chocolate Melting Tank/Chocolate Mixing Tank
Normal Electric Heating Mixing tank with customized agitator
Mainly used for preserving and storing fresh milk or other fresh liquid. It's the ideal HEATING and storage equipment for pasture, milk station, milk, and food and beverage factory and pharmacy industry.
Heating tanks for milk, ice cream , jam , sauce, to pasteurize
asphalt, glue, adhesive, plastic, plastisol, wax. In addition to heated tanks
Product Name
Vertical mixer, Blending tank, Mixing vessel
Applicable range:
1. Used as liquid storage tank, liquid composing tank, temporary storage tank and liquid blending tank etc.
2. Ideal in fields such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.
TankCapacity(L) | 200, SS304 | 300, SS304 | 500, SS304 | 1000,SS304 |
| REV | 36r/min | 36r/min | 36r/min | 36r/min |
| Electric motor of the agitator | 0.55KW,380v,50hz | 0.75KW,380v,50hz | 0.75KW,380v,50hz | 1.1KW,380v,50hz |
| Electric heating tube power | 15KW,380v,50hz | 18KW,380v,50hz | 24KW,380v,50hz | 45KW,380v,50hz |
| Heating Area(M2) | 0.9 | 1.1 | 1.9 | 4.5 |
| Material Input/output(DN MM) | 38 | 38 | 38 | 50 |
| OUTSIDE DEMENSION(L*W*H)MM | 900*900*1600 | 1000*1000*1500 | 1100*1100*1700 | 1400*1400*1750 |
| GROSS WEIGHT(KGS) | 150 | 200 | 300 | 450 |
Structure characteristics
1. Adopt structure of internal tank and external package, with heat preservation materials inside.
2. Materials are all sanitary stainless steel.
3. Humanized structure design and easy to operate.
4. Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.
Configuration of tank
1. Quick open manhole.
2. Various types of CIP cleaners.
3. Fly and insect resistant sanitary breathing cover.
4. Adjustable triangular bracket.
5. Dismountable materials input pipe assembly.
6. Thermometer (According to customer requirements ).
7. Ladder (According to customer requirements).
8. Side blender.
9. Liquid level meter and lever controller (According to customer requirements).
10. Eddy-proof board.
Remarks
It can be made according to special requirements of customers.
We can design the products according to your special request.
OEM is welcome too.Melting Mixing Tank
New Design Stainless Steel Ice Cream Aging Maturation Tank .
