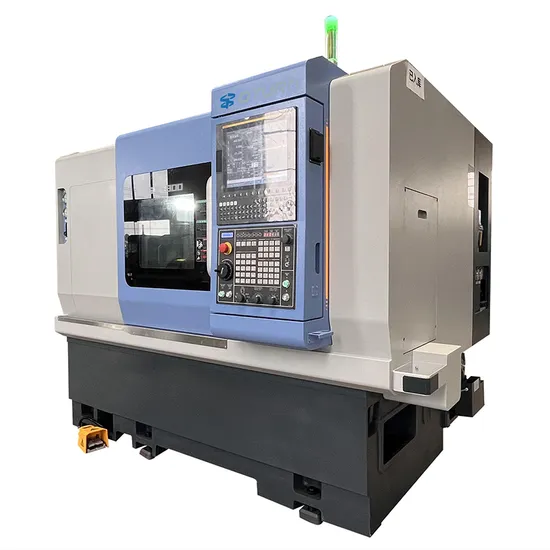

CNC Slant Lathe Turning Center Swiss Type Sy800 with OEM/ODM

CNC Slant Lathe Turning Center Swiss Type Sy800 with OEM/ODM

US$28,500.00-182,000.00 1 Set (MOQ)

Basic Info.

Model NO.
SY800
Type
Turret Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Control System
Fanuc, Siemens, Mitsubishi
Spindle
A2-6,A2-8,A2-11
Chuck
6,8,10,12inch
Tool Turret
Vdi or Bmt
Motor Power
11,15,18.5,22kw
Transport Package
Plywood Case
Specification
3500*2110*2100
Trademark
Oturn
Origin
China
HS Code
8458110090
Production Capacity
1000/Year

Packaging & Delivery

Package Size
350.00cm * 211.00cm * 210.00cm
Package Gross Weight
6700.000kg

Product Description


Product Description
1.Adopt direct drive synchronous electric spindle device: magnetic ring incremental encoder (sine and cosine) positioning accuracy: 20 arc seconds, C-axis indexing accuracy: 40 arc seconds. 1.Effectively eliminate spindle vibration, and the nose deflection accuracy is within 0.002MM. Improve the surface finish of the workpiece, 2.adopt a rear-mounted rotor, which makes installation and maintenance faster, 3.the spindle motor is equipped with a cooling system to suppress the influence of thermal displacement and ensure a constant operating temperature of the spindle. The spindle system has undergone strict dynamic balance testing. The good accuracy retention, high rigidity and high efficiency enable the whole machine to not only complete finishing, but also perform rough machining and heavy cutting for users. It is especially suitable for mass production of complex shapes and high smoothness. product.
2. World-class high-rigidity overall design servo turret. Equipped with a high-precision clutch to ensure its positioning accuracy and repeatable positioning accuracy. It is equipped with a servo motor to drive the cutterhead to rotate for bi-directional or arbitrary tool selection. The hydraulic principle is used to loosen and clamp the clutch, and the proximity switch feedbacks the clutch action signal to quickly and accurately achieve the tool change action.
3. The machine tool is equipped with THK linear guides and ball screws. The heat-treated and precision-ground ball screws can ensure the best accuracy and durability. Each axis adopts a direct transfer axis structure and a double-anchor pre-relay method to prevent thermal changes. The bit quantity will be reduced to the minimum, greatly improving the processing accuracy. The high-rigidity, large-sized, heavy-duty linear slide rails maintain intact accuracy when the machine is subjected to impact, and the displacement is smooth and low-noise, which can extend the service life.
4. This machine provides users with a complete hydraulic and lubrication system, using high-quality hydraulic pumps, hydraulic valves and other components to greatly reduce the failure rate. The hydraulic and lubrication systems are designed to be simple and reliable. The machine tool adopts centralized quantitative automatic lubrication.
5. Programmable hydraulic tailstock and high-rigidity structure of the integral tailstock can eliminate vibration and improve stability. It can be controlled by programmable or manual buttons, and the sleeve telescopicity is realized by hydraulic cylinder, which is convenient, fast and reliable.
6. It adopts Taiwan rotary chuck cylinder and optional automatic chip removal device, which can greatly reduce the labor intensity of the operator and achieve safe and efficient production. The above functional components can be programmed and controlled, and various types of equipment can be designed and installed according to the special requirements of the user. Special fixture. Product Parameters

Name Unit SY800
Travel Max. upward rotation of bed surface mm Φ700
Max. processing diameter mm Φ650
Max. processing diameter on tool holder mm Φ350
Max. processing length mm 790
Spindle
Cylinder
Chuck
Spindle nose type A2-6
Spindle maximum speed rpm 4000
Cylinder/Chuck lnch 10″/8″
Spindle bore diameter mm Φ79
Bar diameter mm Φ65
Spindle motor power kw 15/18
Spindle motor torque (1:1.4) Nm 134-196

X/Z
axis feed
X/Z axis limit travel mm 350/960
X/Z axis rail specifications spes 45 pin roller
X/Z axis screw specifications mm 4012
X/Z axis motor power kw 2.9
positioning accuracy mm ±0.005
Repeatability mm ±0.003
X/Z axis rapid movement m/min 24/24

Servo Turret
Tool station pcs 12T
Outside diameter tool holder specifications mm 25X25
Inner diameter tool holder specifications mm Ф40
Adjacent tool change time sec 0.2
Positioning accuracy / ±2"
Repeatability / ±1"
Tail stock Hydraulic tailstock / Hydraulic tail seat
Maximum travel of tailstock mm 630
Tailstock sleeve tapered hole type Mos 5#
Tailstock sleeve diameter mm Ф100
Sleeve stroke mm 100

Mechanical Size
Overall dimensions (length x width x height) approx. mm 3500*2110*2100
Weight (approximately) kg 6700
Other Cutting fluid tank volume L 250
Cooling water pump power W 750
Hydraulic unit box volume L 40
Hydraulic oil pump motor power kw 1.5
Lubricating oil tank volume L 2
Automatic lubrication pump motor power W 50

Products Configurations
Company Profile
Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines?
A: Please tell me your specifications, and we will help you select the best model, or you can choose the exact model yourself. Alternatively, you can send us the product drawings, and we will recommend the most suitable machines for your needs.
Q2: What are the main products of your company?
A: We specialize in all kinds of machines, such as CNC Lathe Machine , CNC Milling Machine, CNC Turning Machine, Vertical Machining Center, Horizontal Machining Center, Lathe Machines, Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
A: We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong. You are warmly welcome to visit us.
Q4. How do you transport it?
A: Provide Transportation Solution DDP/CIF/FOB/FCA
Q5: What are the Payment Terms?
A: T/T, 30% initial payment when ordering, 70% balance payment before shipment
Q6:What's the OMQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1. We strongly suggest you tell us the size, and material of your workpiece for our evaluation, if possible, better to send us a workpiece drawing so that we can recommend you the most suitable model.
2. If need a CIF Price, please kindly tell us the port of destination.
