Convenitonal 4 Wire Fire Alarm with Relay Output No/Nc Option

Convenitonal 4 Wire Fire Alarm with Relay Output No/Nc Option

US$10.70
1-99 Pieces
US$10.00
100-499 Pieces
US$9.50
500+ Pieces

Basic Info.

Installation Mode
Built in
Certification
CE, ISO, CCC
Application
Industry, Communication Electronic Products, Special Equipment
Rated Operational Voltage
DC9~28V
Product Type
Smoke Detector with Relay Output
Sound Pressure Level
Above 80dB
Appliction
Security System,Industrial Control Equipment
Transport Package
Carton
Specification
D103mm, H55mm
Origin
China
HS Code
8531901000
Production Capacity
10000/Month

Product Description


Introduction

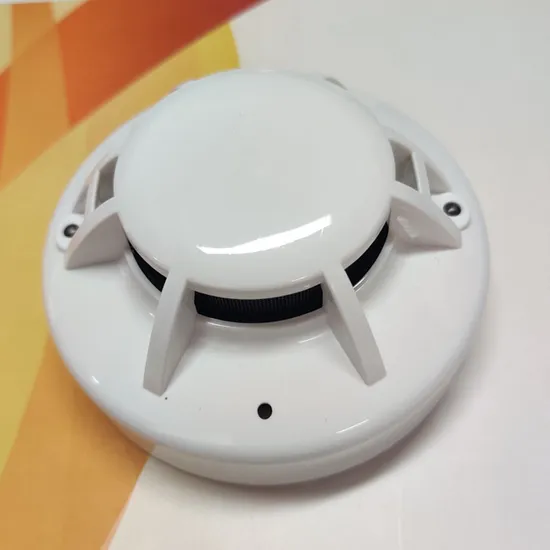

4-Wire smoke alarm with relay output is common used for industrial control equipment, power cabinet, charging pile, alarm bell etc fire warning system. This smoke alarm has the characteristics of high sensitivity, stability and reliability, small power consumption and durability. Easy to install.
Parameters
Product Name smoke detector with relay output Rated operational voltage DC9~28V
Sound pressure level ≥80db Static current ≤200uA
Alarm current ≤45mA Work temperature -10°C~+50°C
Output Sound&light alarm, relay output/NO NC option Humidity ≤95%.
Sensitivity 0.15~0.3dB/m Contact capacity 1A/DC24V

Functions
1. Detection.
Press detection button, it can fully check the alarm functions. And the alarm light flashes quickly with a rapid sound.
2. Alarm.
In the normal environment, The alarm will flash automatically every 10S and automatically detects the concentration of smoke in the surrounding environment at regular intervals(around 1.6s),If the smoke concentration is close to the alarm value, the alarm starts to perform intelligent calculation, and the alarm indicator light starts to flash. If the calculation result reaches or exceeds the alarm value, the alarm will start the sound-light alarm and start the relay. When the ambient smoke concentration drops below the alarm value, the alarm will automatically return to the normal working state.
3. Output.
Passive contact output. Contact capacity 24V/1A, NC or NO two kinds of output.
Installation
First drill two mounting holes with a diameter of 5mm on the ceiling 43~ 62.5mm apart. Fix the alarm base with the plug and screw. Then connect the power line and output line.install the alarm to the base in the correct direction. Press down and tighten clockwise, finally turn on the power, it works.
Product range
4-wire smoke detectors with relay output.
2 wire smoke and heat detectors for switch fire sensor
Standalone smoke detectors and combustible gas detector
Explosion-proof product for fire alarm system
Addressable fire alarm system
Wireless alarm system
Electrical fire monitor system
Extinguishing control system
Fire door monitor system
Fire extinguishing Water cannon System
Service
1. OEM &ODM service.
2. Provide technical support and after-sale service.
3. 1 year warranty.
4. Normally 15 working days lead time.
5. Welcome sample order.
