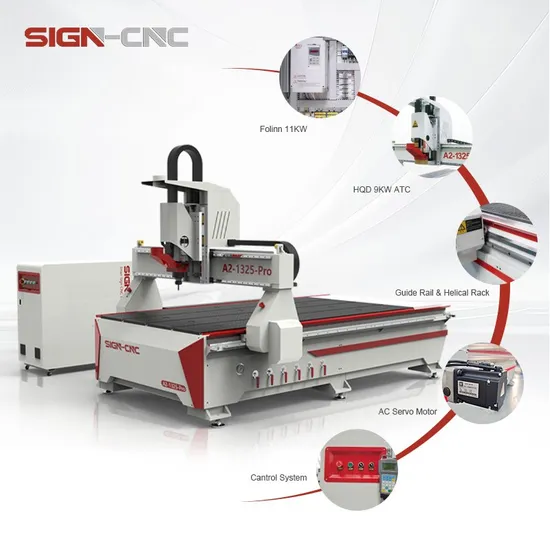

Sign 2024 Hot Model Semi-Atc CNC Router Machine with Atc 9kw Spindle for Custom for Wood Engraving Cutting
Basic Info.
Model NO.
A2-1325
Condition
New
Certification
ISO, CE
CNC or Not
CNC
Voltage
380V
Model
A2-1325
Size
1300*2500mm
Spindle Height
200mm
200mm
T-Slot Table
Max. Power Consumption
2.0kw
Max. Working Speed
25000mm/Min
Spindle Power
6.0kw Hqd
Spindle Speed
0-18000rpm
Drive Motors
AC Servo Motor
Control System
DSP B11
Transport Package
Wooden Package
Specification
13 cubic meter package
Trademark
SIGN-CNC
Origin
China
HS Code
8465990000
Production Capacity
1000set/Year
Product Description
Sign 2024 hot model Semi-Atc CNC Router Machine with ATC 9KW spindle for Custom for Wood Engraving CuttingSpecification
| Model | A2-1325 |
| X, Y Working size | 1300x2500mm |
| Z feed Height | 200mm |
| Table Surface | T-slot table |
| X, Y Structure | Rack and Pinion Drive, 25mm Linear Square Guide Rail |
| Z Structure | 25mm Linear Square Guide Rail and Ball Screw |
| Max. Power Consumption | (Without spindle) 2.0Kw |
| Max. Rapid Travel Rate | 33000mm/min |
| Max. Working Speed | 25000mm/min |
| Spindle Power | 6.0KW Air cooling spindle |
| Spindle Speed | 0-18000RPM |
| Drive Motors | AC servo motor and driver |
| Working Voltage: | AC220V/50/60Hz |
| Command Language | G code |
| Control System | DSP B11 |
| X,Y,Z repositioning Accuracy | ±0.01mm |
| X,Y Resolution | <0.01mm |
| Software | Artcam |
| Running Temperature | 0 degree - 45 degree |
| Relative Humidity | 30% - 75% |
| Optional Parts | Rotary system, Vacuum table |
Jinan Sign CNC Equipment Co., Ltd.
