US$32,000.00-38,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Bridge Cutting Machine
Application
Construction, Stone Industry
Cutting Ability
High Speed
Max Blade Diameter
2800mm
Max Processing Length
3300mm
Max Processing Width
2500mm
Max Lifting Stroke
1400mm
Transport Package
Standard Packaging
Specification
950*470*350cm
Production Capacity
100pieces/Month
Packaging & Delivery
Package Size
800.00cm * 440.00cm * 370.00cm
Package Gross Weight
15000.000kg
Product Description
Product Description
/Product name | /Unit | RQC-2200-4D | RQC-2500-4D | RQC-2800-4D |
/Blade diameter | mm | Φ2200 | Φ2500 | Φ2800 |
/Maximum lifting stroke | mm | 1350 | 1350 | 1350 |
/ Maximum machining length | mm | 3800 | 3500 | 3200 |
/ Maximum processing width | mm | 2200 | 2200 | 2200 |
/Saw blade number | pcs | 3-16 | 6-16 | 9-16 |
/Wate consumption | m3/h | 15 | 15 | 15 |
/ Main motor power | Kw | 45 | 55 | 65 |
/Total power | Kw | 56 | 66 | 76 |
/Weight | kg | 14000 | 14500 | 15000 |
/Oveiall dimensions(LxWxH) | m | 8.0x4.4x3.7 | 8.0x4.4x3.7 | 8.0x4.4x3.7 |

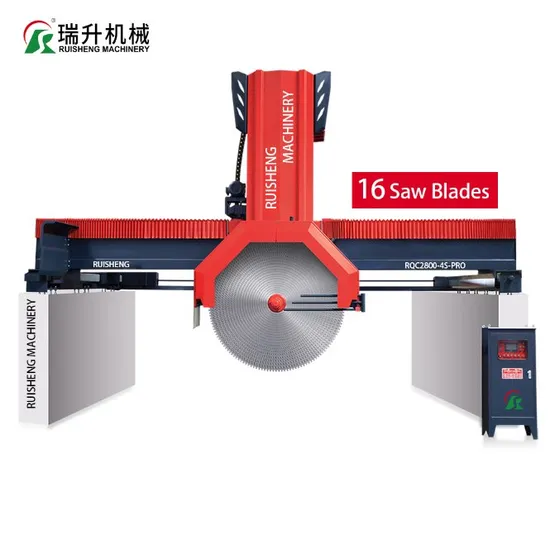

RS-2200/2500/2800 uses PLC system and Human-machine interface, combined with Ultra-high precision rotary encoder toslice, uses inverter to control left-right feeding and adjusts the speed according to the stone material. It uses hydraulic lifting system, and the forward-backward slicing uses high-precision screw nut driving, automatic slicing, main spare parts adopt imported good-quality materials, The block can be placed on the ground directly and economize the worktable and its maintenance costs: The whole machine is featured with high cutting efficiency, high slicing precision, flatness of plate after cutting, high stability, easy-operating to suit granite and marble block with high value.
Note:360 rotating worktable can be selected if customer re-quires.
