Product Description

Product Description

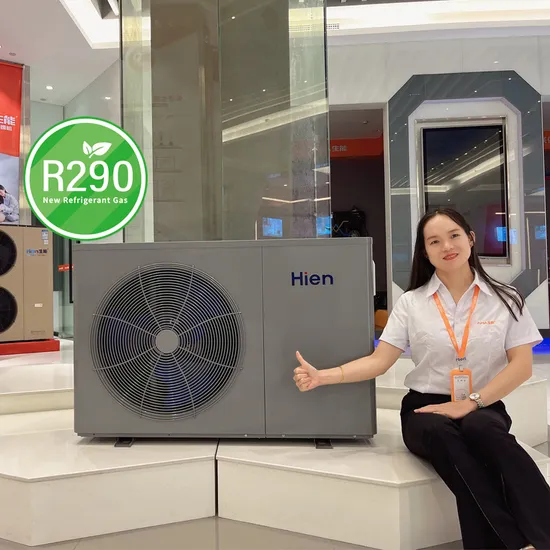

The EcoForce Series R290 DC Inverter Heat Pump - your ultimate solution for year-round comfort and eco-efficiency.
This all-in-one heat pump revolutionizes your space with its heating, cooling, and domestic hot water capabilities, all powered by the eco-friendly R290 refrigerant, which has a Global Warming Potential (GWP) of only 3.
Upgrade to the EcoForce Series R290 DC Inverter Heat Pump and embrace a greener, more efficient future for your comfort needs. Say goodbye to the chill with hot water temperatures reaching up to 75°C.The machine can operates smoothly even under -20°C ambient temperatures.
EcoForce Series Features:

1	All-in-one Functionality: heating, cooling, and domestic hot water functions in a single DC inverter monoblock heat pump.
2	Flexible Voltage Options: Choose between 220V-240V or 380V-420V, ensuring compatibility with your power system.
3	Compact Design: Available in compact units ranging from 6KW to 16KW, fitting seamlessly into any space.
4	Eco-Friendly Refrigerant: Utilizes R290 green refrigerant for a sustainable heating and cooling solution.
5	Whisper-Quiet Operation: The noise level at a distance of 1 meter from the heat pump is as low as 40.5 dB(A).
6	Energy Efficiency: Achieving a SCOP of up to 5.19 offers up to 80% savings on energy compared to boilers heating systems.
7	Extreme Temperature Performance: Operates smoothly even under -20°C ambient temperatures.
8	Superior Energy Efficiency: Achieves the highest A+++ energy level rating.
9	Smart Control: Easily manage your heat pump with Wi-Fi and Tuya app smart control, integrated with IoT platforms.
10	Solar Ready: Connect seamlessly with PV solar systems for enhanced energy savings.
11	Anti-legionella function: The machine has a sterilization mode, capable of raising the water temperature above 75°C

Hien Heat Pump Saves Up to 80% on Energy Consumption Hien heat pump excels in energy-saving and cost-effective aspects with the following advantages: The GWP value of R290 heat pump is 3, making it an environmentally friendly refrigerant that helps reduce the impact on global warming. Save up to 80% on energy consumption compared to traditional systems. SCOP, which stands for Seasonal Coefficient of Performance, is used to evaluate the performance of a heat pump system over an entire heating season.
A higher SCOP value indicates higher efficiency of the heat pump in providing heat throughout the heating season.
Hien heat pump boasts an impressive SCOP of 5.19
indicating that over the entire heating season, the heat pump can produce 5.19 units of heat output for every unit of electricity consumed.
The heat pump machine boasts improved performance and comes at a more favorable price.The noise level at a distance of 1 meter from the heat pump is as low as 40.5 dB(A).
The nine-layer noise reduction measures include:
New type of eddy current fan blades;
Low air resistance grille, designed to better fit air flow dynamics;
Compressor shock absorber pads for vibration reduction;
Simulated technology optimized vortex design for finned heat exchanger;
Simulated technology optimized pipeline vibration transmission design;
Sound-absorbing cotton and peak cotton for noise absorption and reduction;
Variable frequency compressor load adjustment;
DC fan load adjustment;
Energy saving mode;
Can be connected with PV solar system Heat pump with a PV solar system allows homeowners to maximize energy efficiency, reduce utility bills, and contribute to a more sustainable future by harnessing the power of renewable energy sources. Heat pump with a powerful sterilizing mode With the ability to reach temperatures as high as 75ºC, this cutting-edge product guarantees the elimination of harmful Legionella bacteria and viruses, ensuring the highest level of water safet. Invest in your health and that of your loved ones with our state-of-the-art heat pump. Experience the unmatched convenience, energy efficiency, and superior performance this product has to offer. Don't compromise on safety and hygiene when it comes to your water supply. Choose our heat pump with its exceptional sterilizing mode, and enjoy the reassurance of pristine water quality every single day. Take the next step towards a healthier and safer environment - choose our heat pump today!
SMART CONTROL FAMILY
The intelligent controller with RS485 is adopted to realize the linkage control between the heatpump unit and the terminal end, Multiple heat pumps can be controlled and connected to be welmonitored.With Wi-Fi APP enables you to operate the units through a smart phone wherever and wheneveryou are.
WIFI DTU
To deliver the best user experience, EcoForce series is designed with a DTU module for remote datatransferring, and then you can easily monitor the running status of your heating system.
IoT Platfrom An IoT system can control multiple heat pumps, and salespersons can remotely view and analyze usage conditions of individual users through the IoT platform.
Smart APP control Smart APP control brings a lot of convenience to users. Temperature adjustment, mode switching, and timersetting can be achieved on your smart phone. Moreover, you can know power consumption statistics andfault record at anytime and anywhere.
Product Parameters

Dc Inverter Heat Pump		New	WLRK-8IBM	WLRK-10IBM	WLRK-12IBM	WLRK-14IBM
Cooling Conditions			Outdoor Air Temperature 35°C DB / -, Indoor Water Tem.Inlet/Outlet :23°C / 18°C.
Rated Cooling Capacity		kW	1.5 ~ 5.8	2.2 ~ 7.6	2.8 ~ 13.0	3.3 ~ 14.2
Cooling Power Input		kW	0.34 ~ 2.15	0.51 ~ 2.81	0.64 ~ 3.90	0.75 ~ 4.40
Current Input Range		A	1.55 ~ 9.83	2.33 ~ 12.88	2.93 ~ 16.92	3.43 ~ 19.17
Cooling EER		W/W	4.4 ~ 2.7	4.4 ~ 2.7	4.4 ~ 3.33	4.4 ~ 3.22
Heating Conditions			Outdoor Air Temperature 7°C / 6°C, Indoor Water Tem.Inlet/Outlet: 30°C / 35°C.
Rated Heating Capacity		kW	3.3 ~ 8.6	3.8 ~ 9.9	4.3 ~ 12.0	4.8 ~ 14.0
Heatinging Power Input		kW	0.55 ~ 1.88	0.64 ~ 2.19	0.72 ~ 2.60	0.81 ~ 3.04
Current Input Range		A	2.51 ~ 8.59	2.93 ~ 10.51	3.30 ~ 11.32	3.71 ~ 13.23
Heating COP		W/W	6.02 ~ 4.58	6.02 ~ 4.52	6.02 ~ 4.61	6.02 ~ 4.60
Heating Conditions			Outdoor Air Temperature 7°C / 6°C, Indoor Water Tem.Inlet/Outlet: 50°C / 55°C
Rated Heating Capacity		kW	3.1 ~ 7.8	3.5 ~ 9.6	3.9 ~ 11.4	4.4 ~ 13.1
Heatinging Power Input		kW	0.67 ~ 2.67	0.76 ~ 3.29	0.85 ~ 3.91	0.96 ~ 4.49
Current Input Range		A	3.12 ~ 12.21	3.52 ~ 15.13	3.93 ~ 17.88	3.16 ~ 21.3
Heating COP		W/W	4.63 ~ 2.92	4.63 ~ 2.92	4.63 ~ 2.92	4.63 ~ 2.92
Voltage		V/Hz	220V- 240V ~/50Hz
Rated Water Flow		m³/h	1.48	1.7	2.06	2.4
Rated of Waterproof		/	IPX4
Control Mode		/	Heating, Cooling, DHW, Heating+DHW, Cooling+DHW
Refrigerant		/	R290
Compressor	Form	/	Double-rotor type	Double-rotor type	Double-rotor type	Double-rotor type
	Brand	/	Highly Inverter	Highly Inverter	Highly Inverter	Highly Inverter
Net size		mm	1200*470*765	1200*470*765	1370*500*935	1370*500*935
Weight		kg	100	110	130	138
Nosie Level		dB(A)	≤55
Fan	Form	/	Inteligent variable frequency fan motor
Operation ambient temperature		°C	-20 ~ 43
Max.Outlet Water Temperature		°C	75
Inlet pipe diameter		mm	G1"	G1"	G1"	G1"
Outlet pipe diameter		mm	G1"	G1"	G1"	G1"
Packing size		mm	1270*555*808	1270*555*808	1440*570*1080	1440*570*1080
WI-FI function		/	√	√	√	√
ErP Energy class		/	35ºCA+++/ 55ºCA++
Test Standard		/	EN 14825

Company Profile
About our factory:
Hien New Energy Equipment Co., Ltd is a state high-tech enterprise incorporated in 1992,. It began to enter the air source heat pump industry in 2000, registered capital of 300 million RMB,as a Professional manufacturers of development, design, manufacture ,sales and service in the air source heat pump field.Products cover hot water, heating, drying and other fields. The factory covers an area of 30,000 square meters, making it one of the largest air source heat pump production bases in China.

Production Experience	Total foorspace	Cooperated suppliers	ODM services	R&D Team	Transaction Amount
24years	(51,234)square meter	(5300+)	available	100+ Workers	800,000,000+

Production Line
Sample Room
Exhibition
Cooperative
FAQ
Q.Are you a trading company or manufacturer?
A: We are a heat pump manufacturer in China.We specialized in heat pump design/ manufacturing for more than 24 years.
Q.Can i ODM/ OEM and print my own logo on the products?
A: Yes, Through 24 years research and development of heat pump, hien technical team is professional and experienced to offer customized solution for OEM,ODM customer, which is one of our most competitive advantage.
If above online heat pump does not match your requirements, please do not hesitate to send message to us, we have hundreds of heat pump for optional, or customizing heat pump based on demands, it is our advantage!
Q.How do l know if your heat pump are good quality?
A: Sample order is acceptable for testing your market and checking our quality And we have strict quality control systems from raw material incoming until finished product delivery out.
Q.Do you test all the goods before delivery?
A: Yes, we have 100% test before delivery. If you need any assistance, please feel free to contact us.
Q: What certifications do your heat pump has?
A: Our heat pump have CEcertification, ISO 14001, ISO 45001, and ISO 9001 certification.
Q: For a customized heat pump, how long is the R&D time (Research& Development time)?
A: Normally, 10~50 business days, it depends on requirements, just some modification on standard heat pump or a totally new design item.
