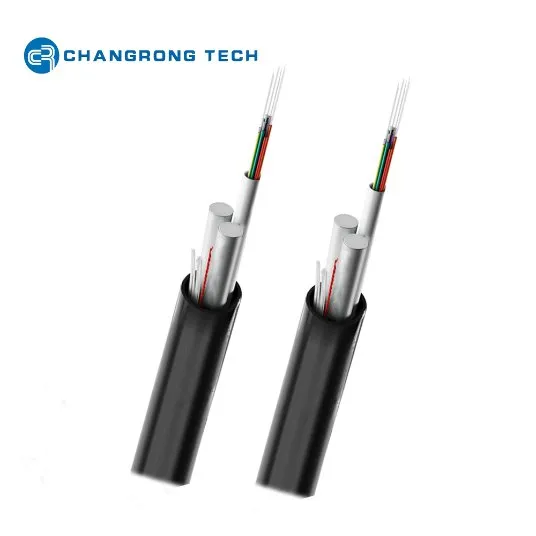

4core 6core 8core 12core Outdoor Span 80m 100m as Drop Optical Fibre Mini ADSS Asu Fiber Optic Cable

4core 6core 8core 12core Outdoor Span 80m 100m as Drop Optical Fibre Mini ADSS Asu Fiber Optic Cable

US$0.20
20,000-99,999 Meters
US$0.18
100,000-999,999 Meters
US$0.16
1,000,000+ Meters

Basic Info.

Model NO.
ASU
Connection Structure
N/M
Material Shape
Round Wire
Allowed Lateral Pressure
>1000(N/100mm)
Allowed Tensile Strength
1000N<10000N
Core
2-12 Core
Certification
RoHS, CE, ISO9001
Brand
Changrong
Sheath Material
PE
Strength Member
FRP
Color
Black
Applications
Aerial
Model
Asu
Sheath
MDPE
Transport Package
Wooden Drum or Carton
Specification
ASU 4B1.3 6B1.3 12B1.3
Trademark
Changrong Tech
Origin
China
HS Code
85447000
Production Capacity
35000km/Year

Packaging & Delivery

Package Size
75.00cm * 75.00cm * 75.00cm
Package Gross Weight
240.000kg

Product Description


Cross Section
Detailed Photos

Product Description
The fibers are positioned in a loose tube made of high modulus plastic and filled with gel. The tube and two FRPs are SZ stranded. The cable core is filled with water blocking yarn. Finally, PE outer jacket or AT outer jacket is completed. One ripcord is applied in the jacket to make the striping easily.
• All dielectric structure, resistant to electromagnetic interference
• Small diameter , light weight, cost-effective, easy for stripping, splicing, simplified installation and maintenance

Application
Aerial self-supporting
Outdoor wiring

Product Parameters
Counts 1-12 24
Span 80 M 120M 80 M 120M
Cable Diameter(mm) 6.6 7.6 7.5 8.2
Weight(Kg/km) 45 62 52 65
Tensile Strength(N) 1500N 2000N 1500N 2000N
Crush Resistance(N/100mm) 2000N
Bending Radius(mm) Static/Dynamic:10D/20D
Temperature(ºC) Storage /Operation:-40ºC~70ºC
Our Advantages

Packaging & Shipping

FAQ
1.Are you the real manufacturer?
Yes. We are the real manufacturer in Chuzhou Anhui Porvince, China.

2.What is your fiber brand ?
We have our own fiber production lines and the preforms are from YOFC, FIBERHOME.

3.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?
25 years for fiber optic cable

5.Which kind of certification you have ?
ISO9001, ISO14001

6.What is your delivery time?
Usually within 7-10 working days

7.What about your annual production capacity?
Outdoor Fiber Optic Cable : annual output is 35000 KM;
FTTH/FTTX/FTTA Cable: annual output is 1200000 KM per year;


8.What is your payment way?
T/T, L/C, Western Union and Paypal.

9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
