CE Factory 500kg 2.5m Roll Paper Stacker with 360 Degree Rotation Clamp

Product Description

Product Description Electric roll lifter, also known as electric roll stacker,electric rotary forklift or electric powered walkie stacker,which is designed for carrying cylindrical or roll materials of varying sizes up to 47 inch in diameter rated with a maximum weight capacity and lift height of 2200 lbs and 118 inch high respectively.

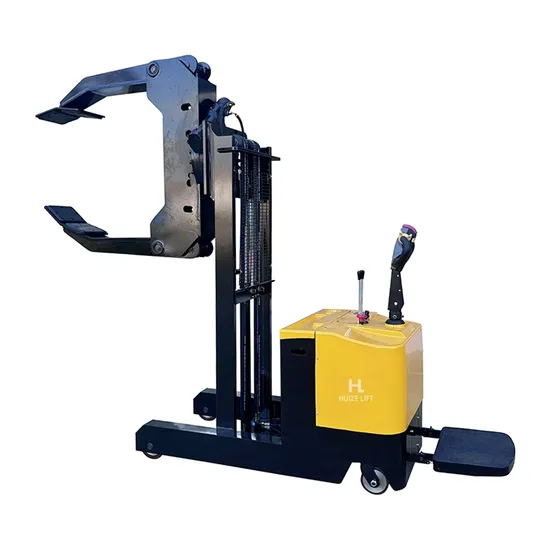

The electric roll lifter features powered drive and lift and comes with a unique roll gripper,the roll clamp attachment lifts reels of material, such as paper, from the vertical position and rotates to the horizontal position, by means of powered motorised clamping and rotation.
This electric roll lifter is frequently to handle rolls of material including paper, film, foil, textile and nonwovens. These materials are commonly found in the print and packaging industries. For instance paper roll handling equipment is commonly used in the paper industry to lift and transport paper rolls to printing machines and throughout the manufacturing and distribution process.

Model	CDD0516-Z	CD1016-Z	CDD0525-Z	CDD1025-Z	CDD1030-Z
Load Capacity(kg)	500	1000	500	1000	1000
Max Lift Height(mm)	1600	1600	2500	2500	3000
Battery(V/Ah)	24/200	24/200	24/200	24/200	24/200
Charger(V/A)	24/30	24/30	24/30	24/30	24/30
Self-weight(kg)	710	730	760	790	830
Overall Size(mm)	2500*1650*2000	2300*1450*2000	2100*1250*1780	2000*1050*1780	2000*850*2050
Lift Motor(kw)	2.5	2.5	2.5	2.5	2.5
Drive Motor(kw)	AC1.5	AC1.5	AC1.5	AC1.5	AC1.5
Climbing Slope(%)	4/6	4/6	4/6	4/6	4/6
Working Aisel(mm)	2600	2400	2200	2100	2100
Walking Aisel(mm)	1700	1500	1300	1100	900
Roll Diameter(mm)	800-1200	600-1000	400-800	200-600	100-400
Service Brake	Electromagnetic Braking
