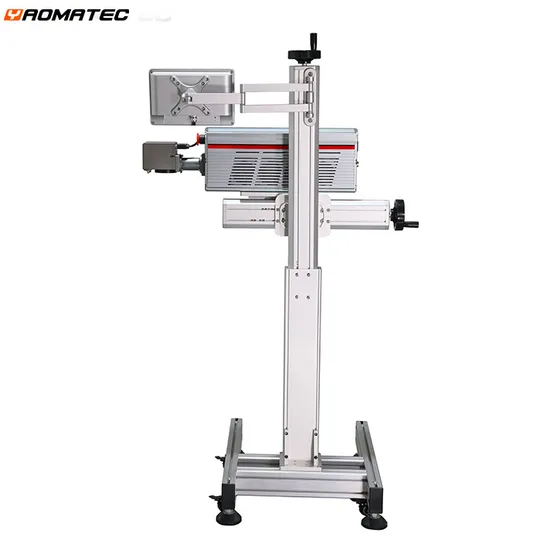

Yaomatec 30W CO2 Laser Marking Machine for Beverage Bottles
Basic Info.
Model NO.
Co2 laser printer
Application
Printing & Packaging
Cooling System
Air Cooling
Technical Class
Continuous Wave Laser
Automatic Grade
Automatic
Applicable Material
Metal/Nonmetal
Type
Flat-Plate
Laser Classification
Gaseous Laser
Engraving Method
Vector Engraving
Transport Package
Box
Specification
Co2 laser printer
Trademark
Yaomatec
Origin
China
HS Code
8443329090
Production Capacity
1000
Product Description
Yaomatec 30W CO2 laser marking machine for beverage bottles Product Parameters| technical index | 30W | |
| Parameter of laser | laser | CO2 laser |
| Wave length | 10.6 um | |
| Laser tube life | 30,000-40,000 hours | |
| Average output power | Adjustable from 0 to 30 watts | |
| Range of frequency | 0KHZ-30kHz | |
| Power stability (average power) | Plus or minus 5% | |
| Angle of divergence | <7mrad | |
| Property of polarization | Vertical line polarization | |
| Power stability (peak power) | 40W | |
| Beam quality | M1.8-2.0 <2.6mm | |
| Marking header parameters | Speed of marking | >=7000-8000mm/s (high speed >=10000mm/s) |
| Mark character speed | 300 characters /s, Roman font, 1mm high | |
| Mark character speed | 300 characters /s, Roman font, 2mm high | |
| Precision of marking | 3-5 microns or less | |
| Minimum marking line width | 10 microns or less | |
| Depth of marking | ≤1mm(depending on material) | |
| Type of font | Built-in a variety of font effect selection, font can be edited | |
| Effect of font | Dot matrix or line printing effect, can be edited and modified on their own font | |
| Minimum character height | 0.5 mm or less | |
| Optical output characteristics | Range of marking | Focusing lens F=160mm, range 100×100mm(standard) can be equipped with a variety of ranges 0-500mm |
| Working focal length | 160mm±2mm(160 focusing lens) | |
| Indicating laser light | Laser type/wavelength/power | Double red light, wavelength 10.6um,30W |
| Cooling system | Mode of cooling | Air cooling |
| Property of system | Rated power rating | 0.6 KW |
| Power requirement | 220V/ single phase /50Hz/600W | |
| Environmental requirements | 0~35ºC, humidity ≤90% | |
| Other | Mode of maintenance | Lifetime maintenance free |
| Industrial protection | IP54 | |
| Support for printing information | Can print text information, variable information, serial number, batch number, bar code, two-dimensional code, micro mark and pattern. There is no limit on the number of lines and font size of information printed. | |
| Applicable materials | Non-bare metal, paper products, food packaging bags, PVC, PET, PA, PPO extrusion materials, glass, etc. | |
Packaging & Shipping
SHIPPING:UPS1.UPS shipping: 7-15 days arrive2. Delivery time: within 1-2 days Note: don't include import taxes 1,we only charge printer price and freight cost 2,please confirm you have the ability of custom clearance about the printer before buy it. it's better use company name to receive.PAYMENT: support pay through ******, TT bank transfer, Western Union ,etc.
