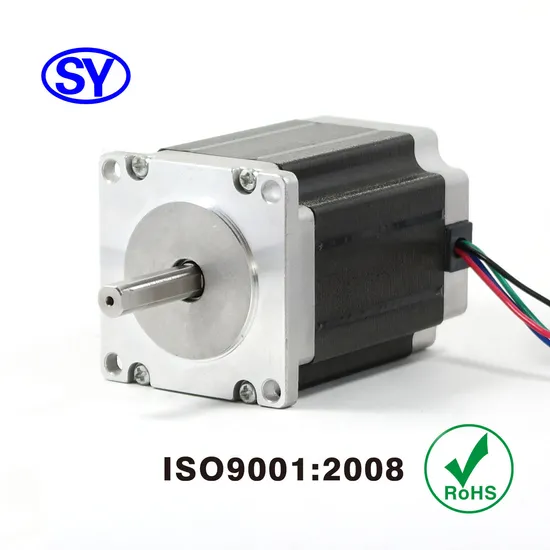

NEMA 23 57 * 57mm Medical 3D Printer DC Electrical Stepping Stepper Motor

NEMA 23 57 * 57mm Medical 3D Printer DC Electrical Stepping Stepper Motor

US$8.63
100-999 Pieces
US$7.88
1,000-1,999 Pieces
US$7.20
2,000+ Pieces

Basic Info.

Model NO.
57BYGH510 Series
Number of Stator
Two-Phase
Excitation Mode
HB-Hybrid
Function
Driving
Number of Poles
8
Operate Mode
2 Phase-8 Parts
Type
Magnetic-Electric
Certification
ISO9001, RoHS, CE
Brand
Shengyang
Motor Series
57 Bygh
Step Angle
1.8 Degree
Shaft End Length
31mm (1.22 in)
Shaft
D-Cut Shaft
Connectors
Plug-in or Lead Wires
Payment Term
30% Deposit, 70% Balance Before Shipment
KEYWORD
3D printer
Usage
Robot joint
Applications
CNC
Key word
High torque
Transport Package
Export Carton
Specification
RoHS, ISO9001: 2015, REACH
Trademark
SY
Origin
Zhongshan
HS Code
8501109990
Production Capacity
3000000 PCS/Year

Product Description

57 mm (NEMA 23) Medical Stepper Electrical Motor
Features:
High Torque
High Accuracy
Smooth Movement; Stepper motors, AC servo motors and brushless dc motors are avaiable to customized for the world, NEMA 11, 14, 16, 17, 23, 24, 34 stepper motor, 50W, 100W, 200W, 400W, 500W, 750W, 1000W, 1200W AC servo motor, and brushless dc motor are all included. The derived products are widely used in ATM machines, digital scanners, stylus printers, plotters, slot machines, CD-ROM drivers, stage lighting, camera lenses, CNC machines, medical machines, 3D printers, cleaning machines and quadcopter for industry and our life. All the derived products of us can be customized for your needs;
Product Description
1. Specifications:
Holding Torque: 930 mNm (131 oz-in)
Resistance per Phase: 0.76 ohm
Inductance per Phase: 3.3 mH
Rated Current: 1.2 A
Step Angle: 1.8° ± 5% full step, no load
Ambient Temperature: -24ºC - +60ºC
Relative humidity: 90% MAX
Resistance Accuracy: ±10%
Insulation Resistance: Larger than 100 mΩ 500V DC
Dielectric Strength: 600 V AC for 1 S, leakage current less than 1 mA;
2. Note:
Performance and parameters can be customized, just simply send your motor diagram or samples to us, the competitive price will be sent to you soon for your reference.
Pricing is decided by the motor's performance and parameters, more important by you requirments, contact us and get the latest the price list.
3.Payment term:T/T in advance, 30% deposit, 70% balance before shipment. Or LC at sight.

About Zhongshan Shengyang Motor Co., Ltd.:
Zhongshan Shengyang Motor Co., Ltd., established in 2011, has anual production capability of more than 3 million pieces for stepper motor and micro motor. We passed ISO9001:2008 quality system, all of raw materials comply with RoHS, contact us and talk details.
Contacts: Ms. Rita Law
Mobile: (+86) 13631101993
shengyangmotor.en.made-in-china.com
Motor Series
&
Length
Motor Model Holding Torque Shaft
Length
Resistance
per
Phase
Inductance
per
Phase
Rated Voltage/
Rated Current
mNm oz-in mm in ohm mH V / A
57BYGH0
31 mm
(1.23 in)
57BYGH010-B-27 840 119 27 1.07 10 23 1.2
57BYGH1
52 mm
(2.05 in)
57BYGH103-1 850 120 24 0.95 8 17 8/1.0
57BYGH2
56 mm
(2.21 in)
57BYGH220-B-21 1240 175 21 0.83 2.4 5.8 2
57BYGH3
49 mm
(1.93 in)
57BYGH301-A-27 1020 145 27 1.07 10 23 0.8
57BYGH4
49mm
(1.93 in)
57BYGH401-B-27 900 128 27 1.07 8 33 0.6
57BYGH5
77 mm
(3.04 in)
57BYGH510-C-31 930 132 31 1.23 0.76 3.3 1.2
57BYGH6
65 mm
(2.56 in)
57BYGH601-C-22 1260 178 22 0.87 3.5 5.7 1.5
57BYGH7
98 mm
(3.86 in)
57BYGH701-C-31 1380 195 31 1.23 1 3 1.5
57BYGH9
46 mm
(1.82 in)
57BYGH910-B-27 1480 210 27 1.07 8.5 26 2
