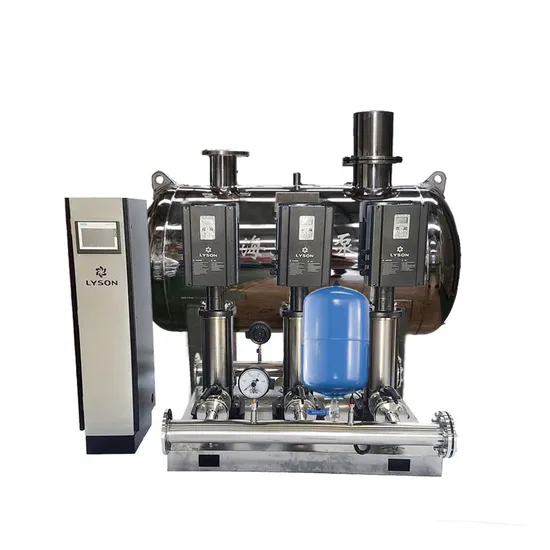

Equipment for Pressurized Water Supply of Pressure-Free Tube Network
Basic Info.
Model NO.
LZW
Max.Head
>150m
Max.Capacity
>400 L/min
Driving Type
Motor
Impeller Number
Multistage Pump
Working Pressure
High Pressure Pump
Influent Type of Impeller
Clear Water
Position of Pump Shaft
Vertical Pump
Pump Casing Combined
Verticaljoint Surface Pump
Mounting Height
Suction Centrifugal
Impeller
Closed
Usage
Pump, Pumps, Condensate Pump, Slurry Pump, Circulating Pump
Type
Lzw
Color
Silver
Material
Cast Iron
Motor
100% Cooper Wire
Pressure
High Pressure
Theory
Centrifugal
Transport Package
Standard Export Packing or According to Customers′
Specification
ISO9001/CE
Trademark
LYSON or OEM
Origin
Shanghai, China
HS Code
8413709990
Production Capacity
5000/Month
Product Description
Product Description Products Name:
Automatic Constant Pressure Variable Flow Water Water Pump Water Supply Equipment
Conditions of use: Suitable for conveying the temperature under 60 celsius water and similar to that of liquid water, pump system working pressure of up to 11 bar.
The scope of performance parameter: This series a total of 6 species, 50kinds of specifications and its
performance parameters range:
1 flow Q= 18~108 m3/h
2. Lift H= 30 ~ 160 m
3. Speed n=1450/2900 r/mi8
4. Power P=1.1~ 274kW
| fault phenomenon | failure cause | elimination methods |
| The manual is normal Automatic transmission failure | 1.No power supply or one or two phase power supply is needed | Check all phases of power supply and restore power supply |
| Water level is too low | Put water in the sink | |
| The motor burned | Repair or replace the motor | |
| 1.Line is loose | Check wiring and tighten connectors | |
| 2.Frequency converter malfunction | Check the fault content, check the cause according to the frequency converter manual, and restart after reset.Or disconnect the inverter power supply for a few seconds, the inverter fault reset before starting. | |
| 3The frequency converter is damaged | Repair or replace | |
| 4.Pressure switch damage | Repair or replace | |
| 5The pressure transmitter is damaged | Repair or replace | |
| 6.Switch failure | Repair or replace | |
| Pump non - suction pressure gauge pointer to beat violently | Insufficient water supply for perfusion, air leakage at the connection between pipeline and instrument | Check pipeline and bottom valve, refill water diversion. Tighten air leakage |
The pump consumes too much power | Too much flow, impeller wear | Check whether the pump shaft is bent, replace the impeller, close the outlet valve to reduce the flow |
