Advanced Industrial Colloidal Mill for Versatile Processing Needs

Advanced Industrial Colloidal Mill for Versatile Processing Needs

US$1,000.00 1 Piece (MOQ)

Basic Info.

Drive
Electric
Crushing Degree
Fine Grinding Machine
Crushing Style
Grinding and Impact
Principle
Roller Culling
Cutter Material
High-Speed Steel
Finished Surface
Outer Surface Process
Compressive Strength (for Crushing)
>300MPa
After-Sales Service
Online Support
Warranty
One Year
Transport Package
Wooden Package
Origin
China

Packaging & Delivery

Package Size
220.00cm * 140.00cm * 170.00cm
Package Gross Weight
500.000kg

Product Description

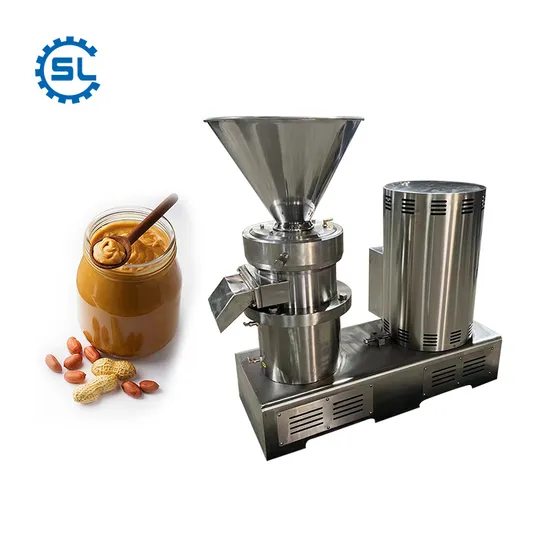

Industrial multi-functional Colloidal mill machine Product Description Peanut butter making machine is mainly used for producing peanut butter, almond butter, salty butter, peppery butter, sesame paste and so on. It can also be used to grind peanut milk, protein milk, soy milk, dairy products, fruit juice, etc. The peanut butter making machine has the features of high yield and working efficiency and small size, which makes the peanut butter making machine extremely popular both for home and commercial use. After processing with the peanut butter machine, particle size of raw material ranges from 2 to 50 microns with more than 90% homogeneity. Thus, the peanut butter making machine is the ideal equipment for processing ultrafine particles.
Product Parameters
Model GLS-80 GLS-130 GLS-180 GLS-240
Fineness (mesh) 50-100 100-200 100-200 100-200
Capacity(t/h) 0.1-0.5 0.5-2 0.8-6 4-15
Power 4kw,380v,50hz 11kw,380v,50hz 20kw,380v,50hz 37kw,380v,50hz
Dia of rotor 80mm 130mm 180mm 240mm
Dimension (mm) 410*420*940 1000*450*1110 1000*500*1110 1330*510*1290
weight 210kg 400kg 450kg 1300kg
Detailed Photos
Application
The peanut butter application
1. The peanut butter making machine can be used to grind peanut almonds, sesame, tomato, cashew nut, bean, pea, chili, garlic and ginger, etc.
2. The whole machine body of peanut butter making machine is made of stainless steel with compact structure, stable working, low noise, rust-proof, easy to clean and maintain.
3. The peanut butter making machine also has the advantages of wide adaption, easy variation in speed and different types of motor may be replaced to suffice the demands for special materials to be processed.
4. Material after processing has particle size of 2 ~ 50 microns, homogeneous degree of more than 90%. The peanut butter machine is the ideal equipment of fine powder processing.
5. According to the materials to be processed, the rotor and stator made of different materials could be used. The whole peanut butter machine could be assembled or disassembled easily.
6. The nominal revolving speed and its variable range could be ordered by customers according to different uses of peanut butter machine.
7. Customer can choose common motor or explosion-proof motor.
8. The peanut butter making machine is suitable for restaurant, supermarket, home, small processing plant and big factory for commercial use.
Our Advantages The peanut butter making machine has the features of compact structure, smooth operation, low noise, corrosion-resistant, easy to clean and maintenance, high degree of automation, great reliability, sealing production and non pollution. The peanut butter making machine functions by the different geometry of the stator and the rotor rotates at high speed under the relative motion. Materials are broken by cutting, grinding and high-frequency vibration of peanut butter making machine. There are three grinding zones in the broken room, the first one is rough grinding, the second one is fine grinding and the third one is ultrafine grinding. Through adjusting the gap between the rotors, it can effectively achieve the required standard.
