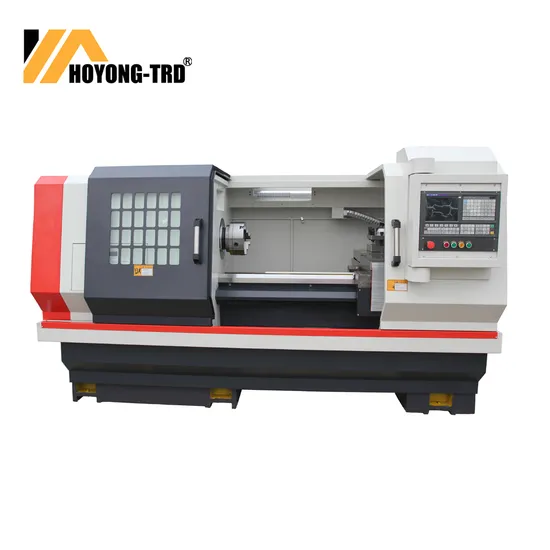

High Precision CNC Horizontal Bench Lathe Machine Ck6150 Ck6152 Ck6156 Ck6160
| US$10,000.00-30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CK6150 CK6152 CK6156 CK6160 CK6163
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Swing Over Bed
400mm, 460mm, 500mm
Swing Over Cross Slide
180mm, 250mm
Max. Turning Length
750/1000/1500mm
Spindel Bore
80mm
Spindle Speed
100-2000rpm
Spindel Nose
A2-6
Motor Power
5.5kw
Transport Package
Plywood Case
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84581100
Production Capacity
30
Product Description
CNC LATHES FEATURES:
1.high rigidity pedestal and wider lay board are suitable for heavy cutting
2.four station electric turret
3.frequency conversion stepless speed regulation
| STANDARD ACCESSORIES | OPTIONAL ACCESSORIES |
| GSK980TDC or Siemens 808D NC system inverter motor 7.5kw 4 station electric turret 250 mm manual chuck manual tailstock integrated automatic lubrication system coolant system lighten system | Fanuc 0I mate TD or KND1000Ti servo motor 7.5/11 kw inverter motor 11 kw 6 station or 8 station electric turret 10″Non-through hole hydraulic chuck 10″through hole hydraulic chuck 10″Non-through hole hydraulic chuck (Taiwan) 10″through hole hydraulic chuck(Taiwan) steady rest follow rest ZF gear box |
| ITEMS | CK6166 | CK6156 | CK6150 |
| Max. swing over bed | Ø660 | Ø560 | Ø 530 mm |
| Max. swing over carriage | Ø430 | Ø330 | Ø 310 mm |
| Width of bed | 405 mm | ||
| Maximum turned length | 750/1000/1500/2000/3000 mm | ||
| Spindle nose and spindle bore | D8 and Ø105mm | A2-8 and Ø 80 mm | |
| Cone hole diameter and taper of spindle hole | Ø113 1:20 | MT. No. 7 | |
| Steps of spindle speed(Manual) | 4 (Variable Within Each Step ) | ||
| Range of spindle speed | 27~135 55~270 160~805 325~1630 r/min | ||
| Rapid feed for Axis Z and X | 10/8m /min | ||
| Max. travel of Axis Z | 720/970/1470/1970/2970mm | ||
| Max. travel of Axis X | 365mm | 300mm | 320mm |
| Min. input | 0.001 mm | ||
| Tool post stations | 4-ways or 6-ways | ||
| Tool cross section | 32× 32 mm | ||
| External diameter | Ø 75 mm | ||
| Taper of bore | MT. No. 5 | ||
| Max. Traverse | 150 mm | ||
| Power of main motor and cooling pump | 11KW and 90W | 7.5 KW and 90W | |
| Overall dimensions(L× W× H)(mm) | 2250/2500/3000 /3500x1250x1580 | 2250/2500/3000/ 3500/4500× 1200× 1520 | |
| Net weight(kg) | 2800/3100/3700/4300/3300 | 2700/3000/3500/4000/4600 | |
