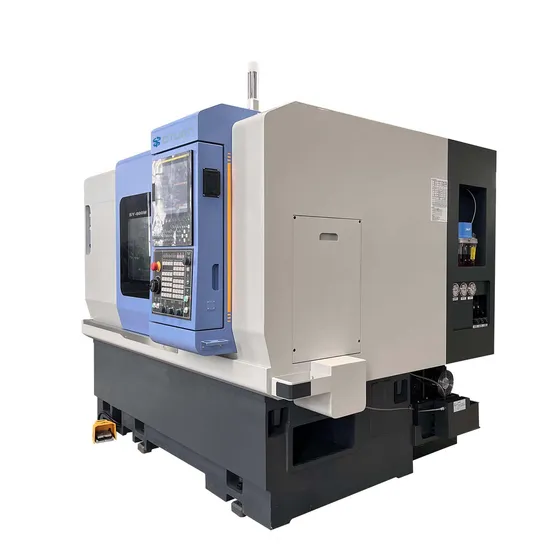

Heavy Duty Single Spindle CNC Turning Center Sy800m with Stress-Relief Bed

Heavy Duty Single Spindle CNC Turning Center Sy800m with Stress-Relief Bed

US$28,500.00-182,000.00 1 Set (MOQ)

Basic Info.

Model NO.
SY800M
Type
Turret Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Control System
Fanuc, Siemens, Mitsubishi
Spindle
A2-6,A2-8,A2-11
Chuck
6,8,10,12inch
Tool Turret
Vdi or Bmt
Motor Power
11,15,18.5,22kw
Transport Package
Plywood Case
Specification
3500*2110*2100
Trademark
Oturn
Origin
China
HS Code
8458110090
Production Capacity
1000/Year

Packaging & Delivery

Package Size
350.00cm * 210.00cm * 210.00cm
Package Gross Weight
6500.000kg

Product Description



Product Description
Our state-of-the-art two-axis lathe, the Y Axis CNC Lathe with Fanuc Control, is meticulously engineered to revolutionize your machining operations. Designed to process both ends of the workpiece simultaneously in a single clamping, it dramatically streamlines manual labor, boosts production efficiency, and cuts down on processing steps. The innovative second spindle not only ensures full turning but also facilitates swift workpiece transfer during machining, thereby significantly reducing cycle times. Our machine boasts an optimized 30-degree inclined structure, offering unparalleled precision, super rigidity, and exceptional cutting stability. Crafted from a single piece of high-strength HT300 cast iron, the robust lathe bed undergoes finite element analysis to deliver superior mechanical rigidity and stability. This ensures long-term reliable accuracy, enhances processing stability, extends tool life, and benefits from stress relief treatment for improved accuracy stability. The high-strength roller linear rail design, coupled with a screw pre-tension transmission system, elevates rigidity performance. The machine's sleek and sophisticated appearance embodies contemporary design trends.
Distinguished Main Features of This Machine Tool:
1. Equipped with a direct drive synchronous electric spindle device featuring a magnetic ring incremental encoder (sine and cosine) with 20 arc seconds positioning accuracy and 40 arc seconds C-axis indexing accuracy. This innovation effectively eradicates spindle vibration, maintaining nose deflection accuracy within 0.002MM, thus enhancing the surface finish of workpieces. The rear-mounted rotor ensures faster installation and maintenance, while the spindle motor's cooling system mitigates thermal displacement, maintaining a constant operating temperature. The spindle system, having passed rigorous dynamic balance testing, guarantees exceptional accuracy retention, high rigidity, and high efficiency. This enables the machine to perform both finishing and heavy-duty rough machining, making it ideal for mass production of complex, high-smoothness products.
2. Featuring a high-rigidity integrated design servo power turret, this machine excels in rapid and precise tool changing. When combined with the power milling capabilities of a high-speed power axis, it achieves superior turning and milling performance. The high-rigidity BMT installation interface for the tool holder and the servo spindle motor-driven power transmission shaft further enhance its capabilities.
3. Equipped with roller linear guides and precision-ground ball screws, this machine ensures optimal accuracy and durability. Each axis incorporates a direct transfer axis structure and a double-anchor pre-relay method to minimize thermal displacement, thereby significantly enhancing processing accuracy. The high-rigidity, large-sized, heavy-duty linear slide rails maintain accuracy even under impact, ensuring smooth, low-noise displacement and extending the machine's service life.
4. Our machine comes with a comprehensive hydraulic and lubrication system, featuring high-quality hydraulic pumps, valves, and other components, significantly reducing failure rates. These systems are designed for simplicity and reliability, ensuring seamless operation.
5. Featuring a Taiwanese rotary chuck cylinder and an optional automatic chip removal device, this machine greatly reduces operator labor intensity, ensuring safe and efficient production. The programmable and controllable functional components can be customized and installed according to the user's specific requirements.Specialized Fixture Options
Product Parameters
Item Unit SY800M
Max. swing diameter over bed mm Φ680
Max. processing diameter mm Φ400
Max. processing diameter over tool holder mm Φ350
Max. processing length mm 600
Spindle type / A2-6
Max. spindle speed rpm 4300
Hydraulic Cylinder/ Chuck / 8"
Spindle bore diameter mm Ф65
Max. bar diameter mm Ф52
Direct drive spindle motor power kw 18/ 22
Direct drive spindle motor torque Nm 105-227
X/Z axis travel mm 320/740
X/Z axis rail specifications spes Roller45
X/Z axis motor power kw 2.9/2.9
Positioning accuracy mm ±0.005
Repeatability mm ±0.003
X/Z axis rapid speed m/min 24/24
Power turret type pcs BMT55-12T
Power turret motor Kw 5.0
Max. power tool holder speed rpm 5000
External diameter tool holder specification mm 25X25
Internal diameter tool holder specification mm Φ40
Adjacent tool change time sec 0.15
Programmable hydraulic tailstock / Hydraulic tailstock
Max. Tailstock travel mm 600
Tailstock sleeve tapered hole type Mohs5#
Sleeve diameter mm Ф80
Sleeve travel mm Fixed
Machine size mm 3500*2110*2100
Machine weight kg 6500
Cutting fluid tank volume L 250
Cutting coolant water pump KW 5
Hydraulic unit box volume L 40
Hydraulic pump motor power kw 1.5
Lubricat tank volume L 2
Automatic lubrication pump motor power W 50
Coolant water pump power KW 1.5

Products Configurations
Company Profile

Quality Control
Our Advantages
FAQ
Q1: How can I choose the most suitable machines?
Please provide your specifications, and we will select the optimal model for your needs. Alternatively, you can choose a specific model yourself. You can also send us product drawings, and we will identify the most suitable machines for you.
Q2: What are the main products of your company?
At Ningbo Oturn Machinery Co., Ltd, we specialize in a diverse range of machinery, including CNC Lathe Machines, CNC Milling Machines, CNC Turning Machines, Vertical Machining Centers, Horizontal Machining Centers, Lathe Machines, and Turning and Milling Composite Processing Machines, among others.
Q3: Where is your factory located, and how can I visit?
Our factories are strategically located in Guangzhou, Quzhou, Ningbo, and Guangdong. We warmly welcome you to visit us at any of these locations.
Q4: How do you handle transportation?
We provide comprehensive transportation solutions including DDP, CIF, FOB, and FCA.
Q5: What are the payment terms?
Our payment terms are T/T: 30% initial payment upon order, and 70% balance payment before shipment.
Q6: What is the Minimum Order Quantity (MOQ)?
A: The MOQ is 1 set. For some low-cost machines, the MOQ may be higher than 1 set.
Additional Information Needed:
1. We strongly recommend providing the size and material of your workpiece for our evaluation. If possible, send us the workpiece drawing so that we can recommend the most suitable model.
2. If you require a CIF price, please kindly provide the port of destination.
